Disassembled Views

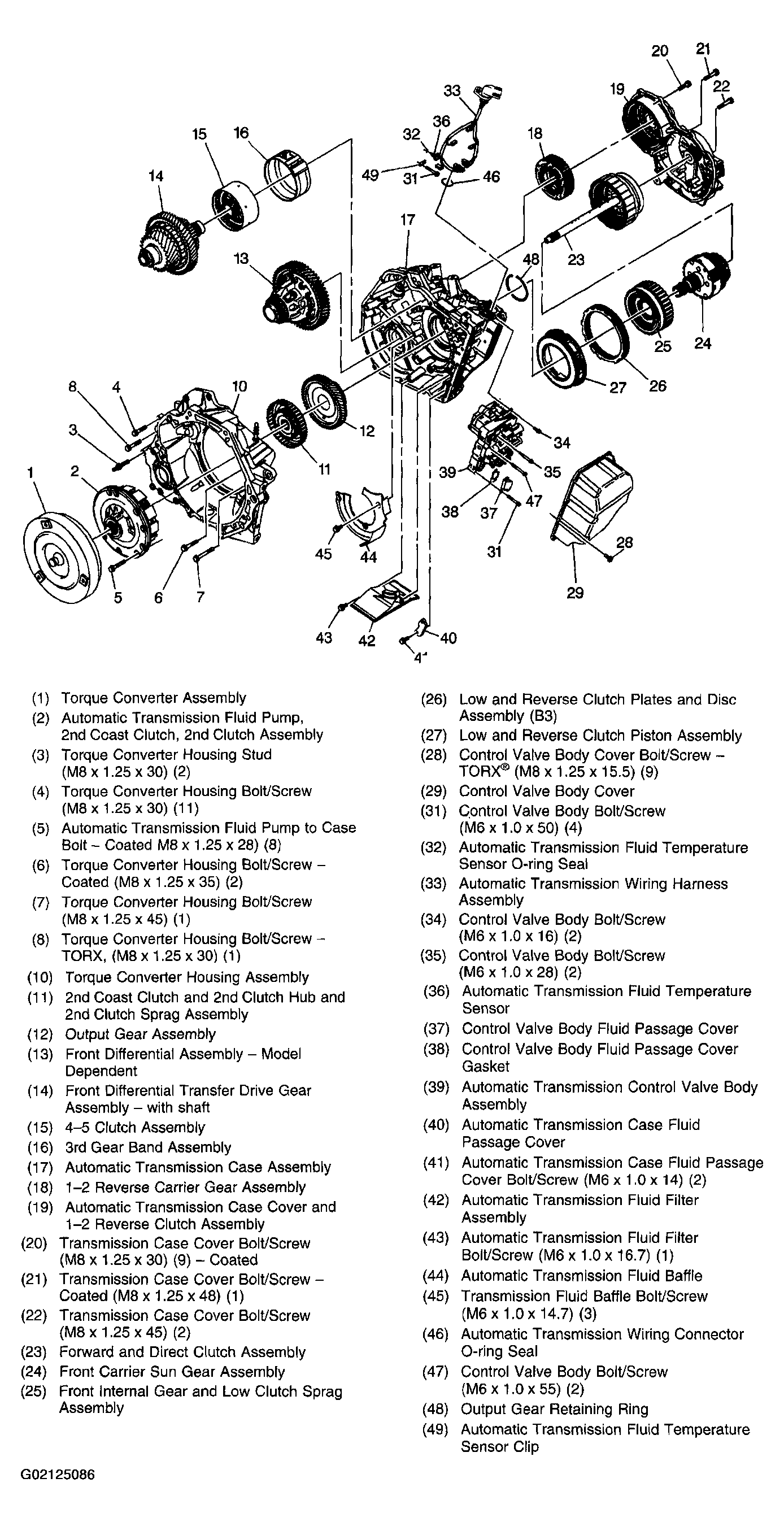

Fig 1: Case & Associated Parts Disassembled View (1 Of 2)
G02125086Courtesy of GENERAL MOTORS CORP.

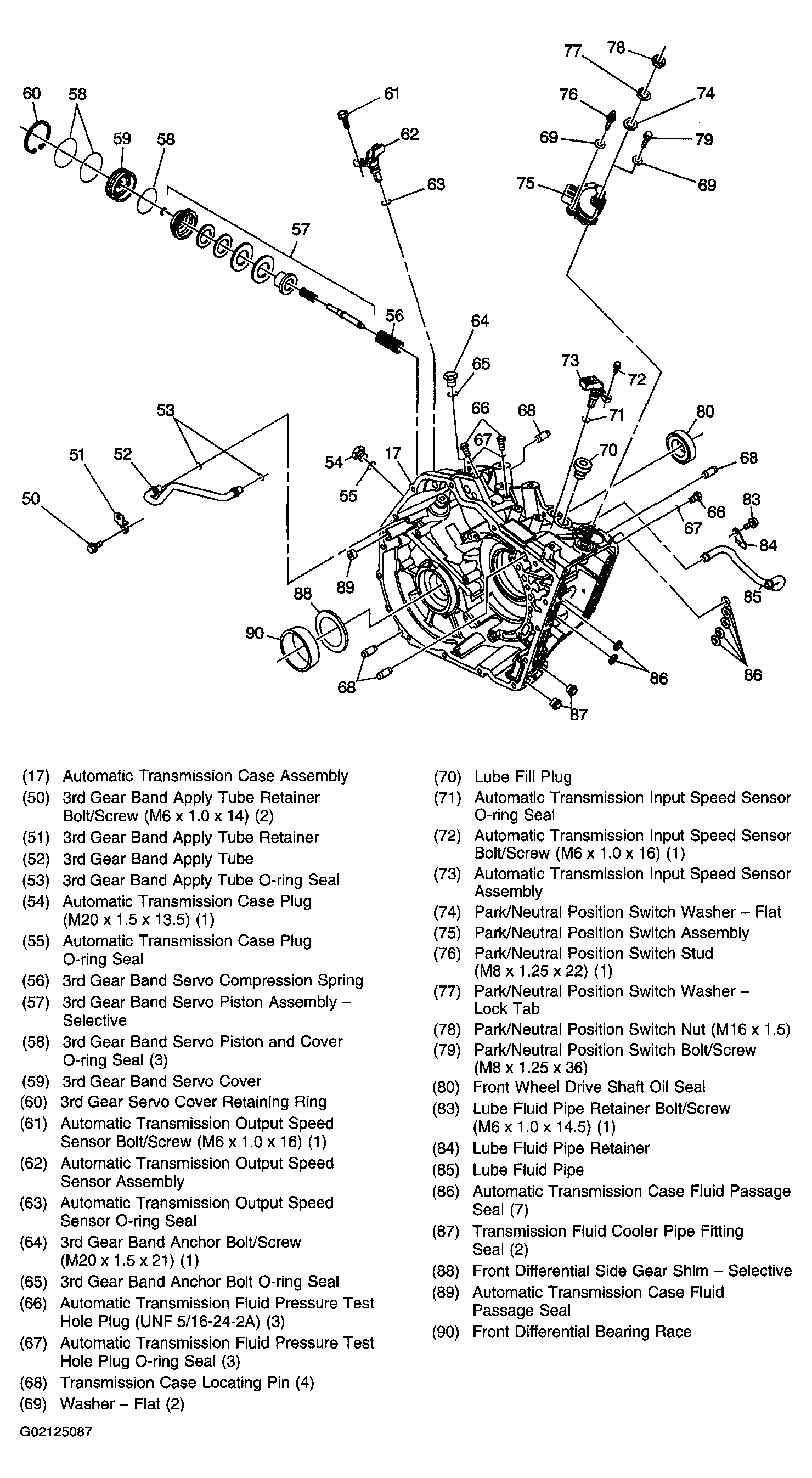

Fig 2: Case & Associated Parts Disassembled View (2 Of 2)
G02125087Courtesy of GENERAL MOTORS CORP.

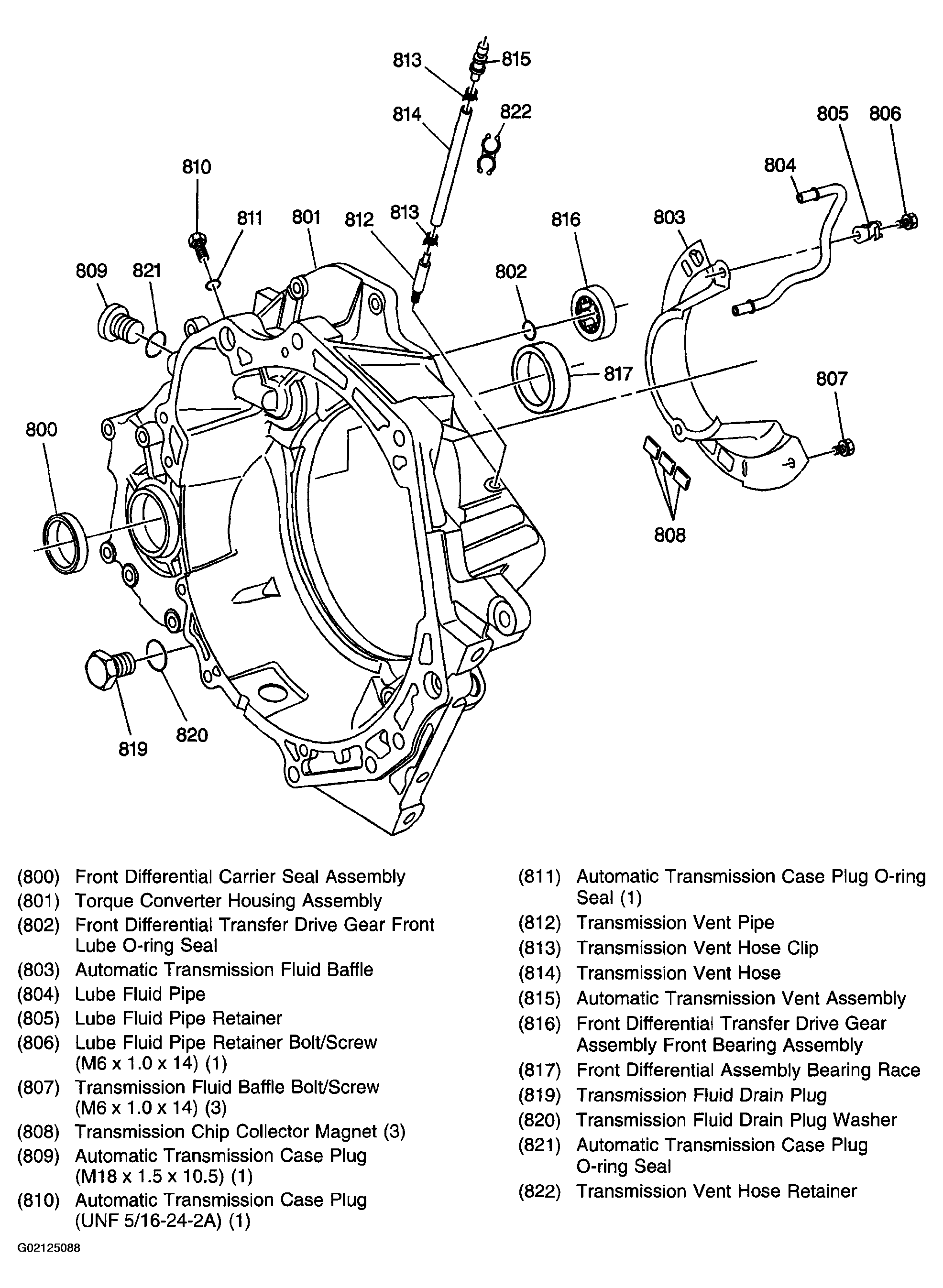

Fig 3: Torque Converter Housing Assembly Disassembled View
G02125088Courtesy of GENERAL MOTORS CORP.

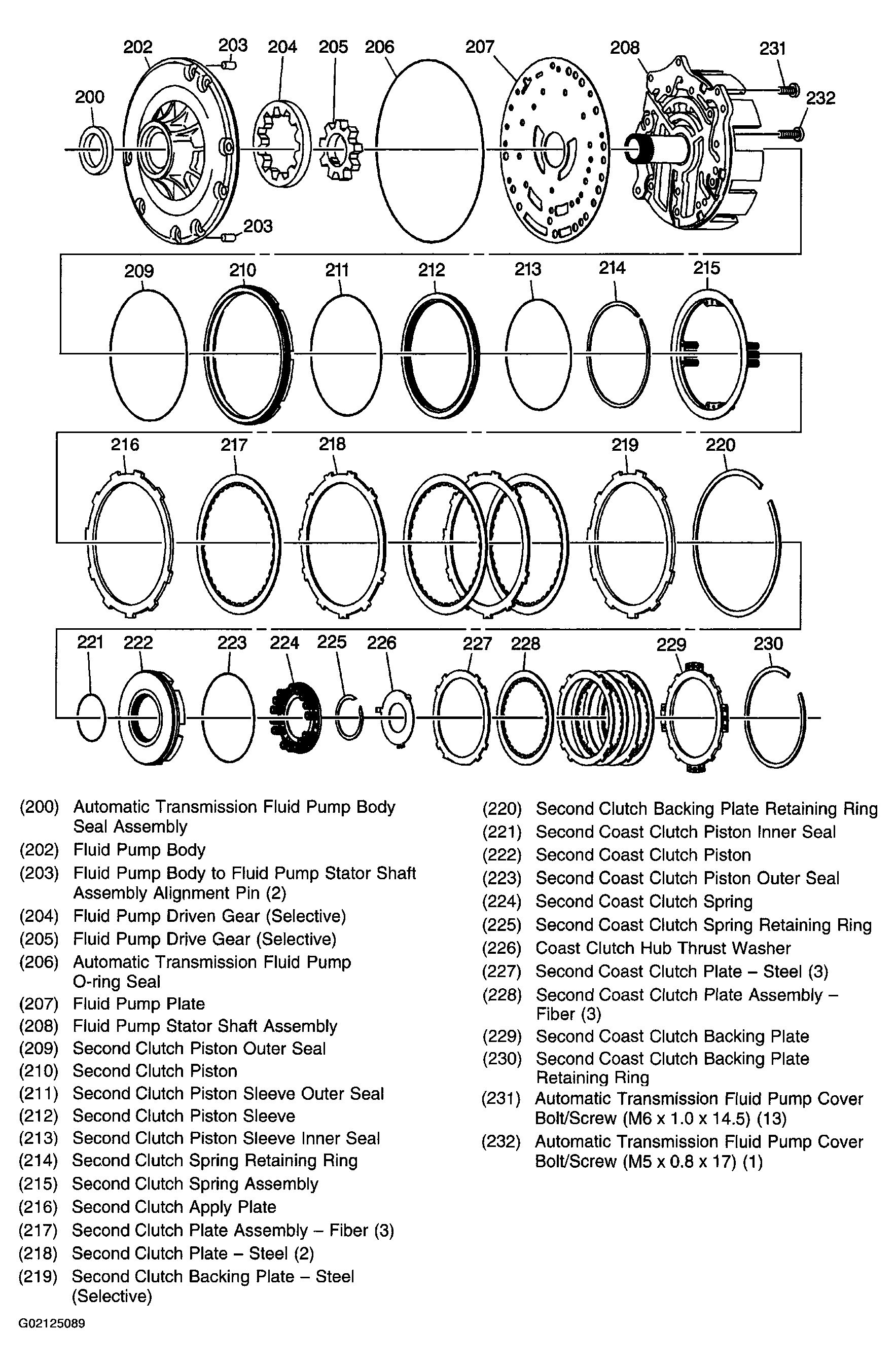

Fig 4: Fluid Pump, Second Coast & Second Clutch Assemblies Disassembled View
G02125089Courtesy of GENERAL MOTORS CORP.

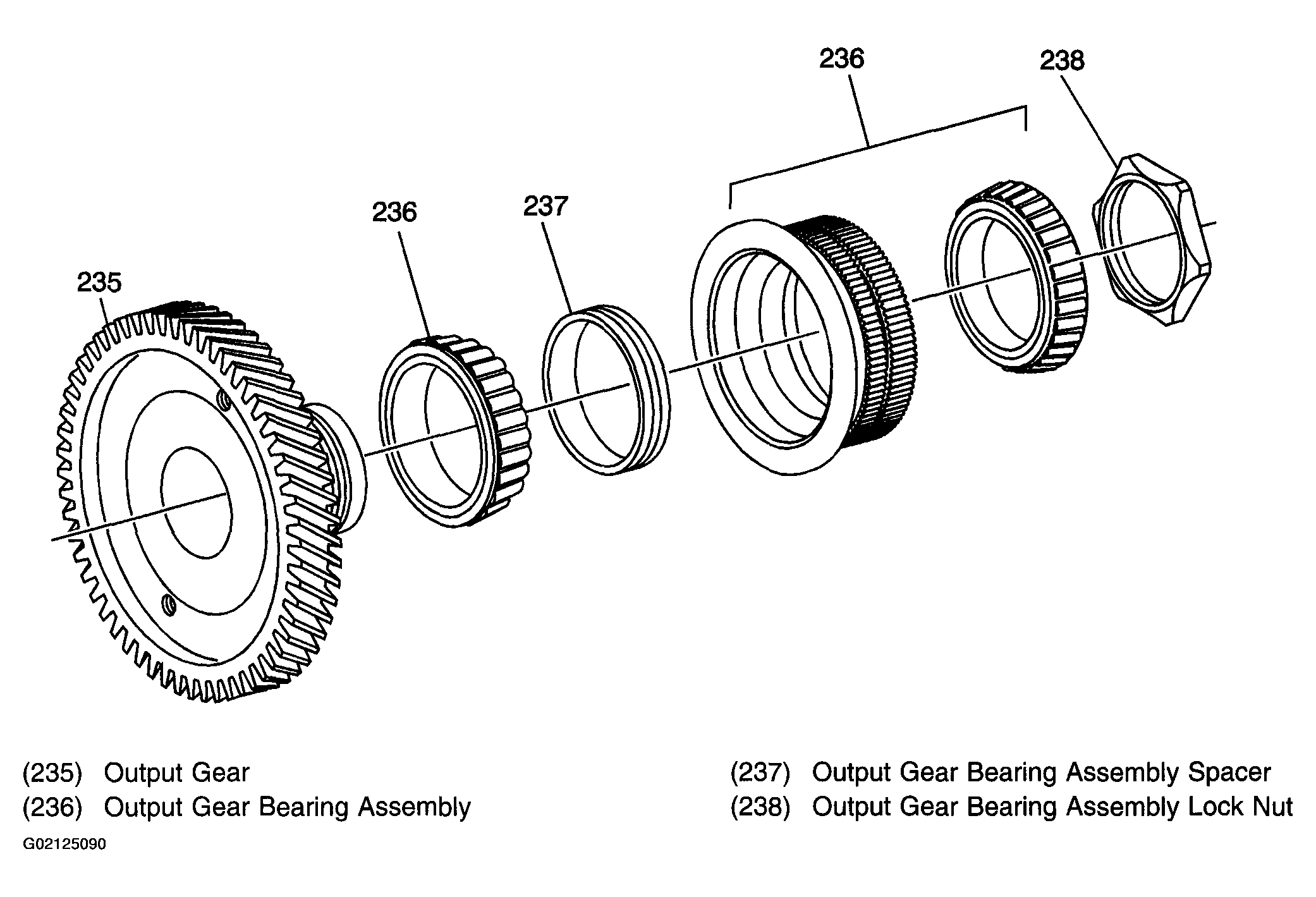

Fig 5: Output Gear Assembly Disassembled View
G02125090Courtesy of GENERAL MOTORS CORP.

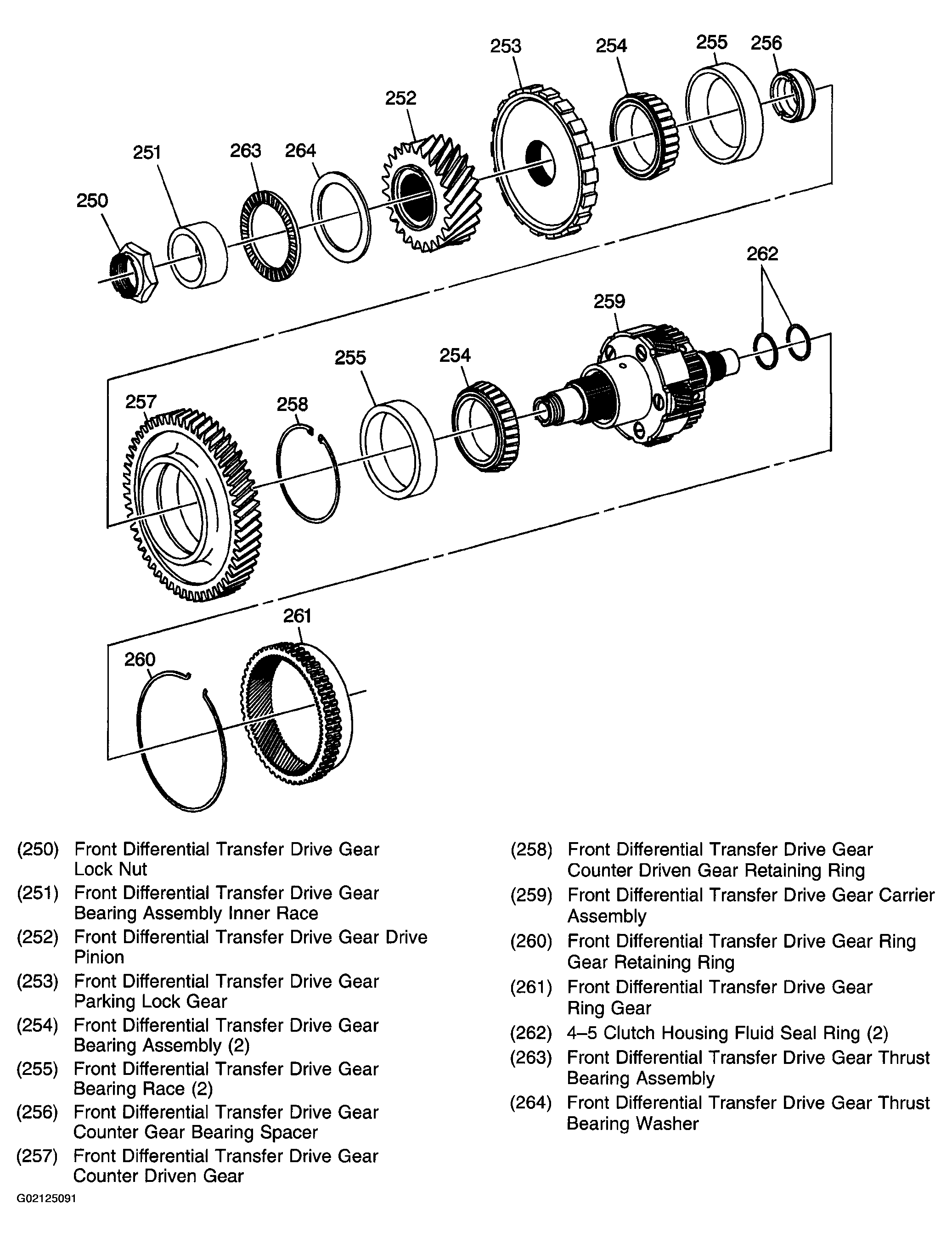

Fig 6: Front Differential Transfer Drive Gear Assembly Disassembled View
G02125091Courtesy of GENERAL MOTORS CORP.

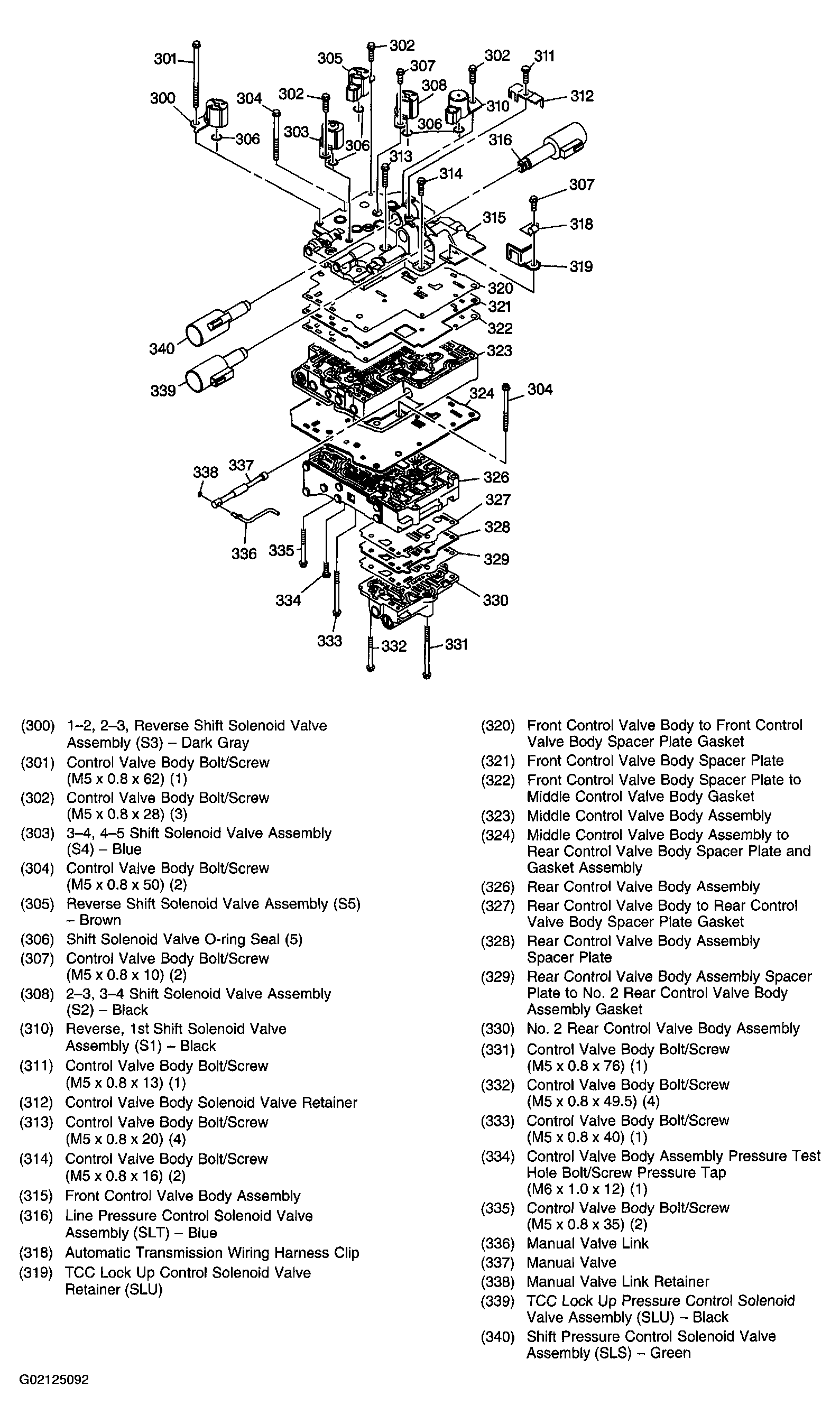

Fig 7: Control Valve Body Assembly Disassembled View
G02125092Courtesy of GENERAL MOTORS CORP.

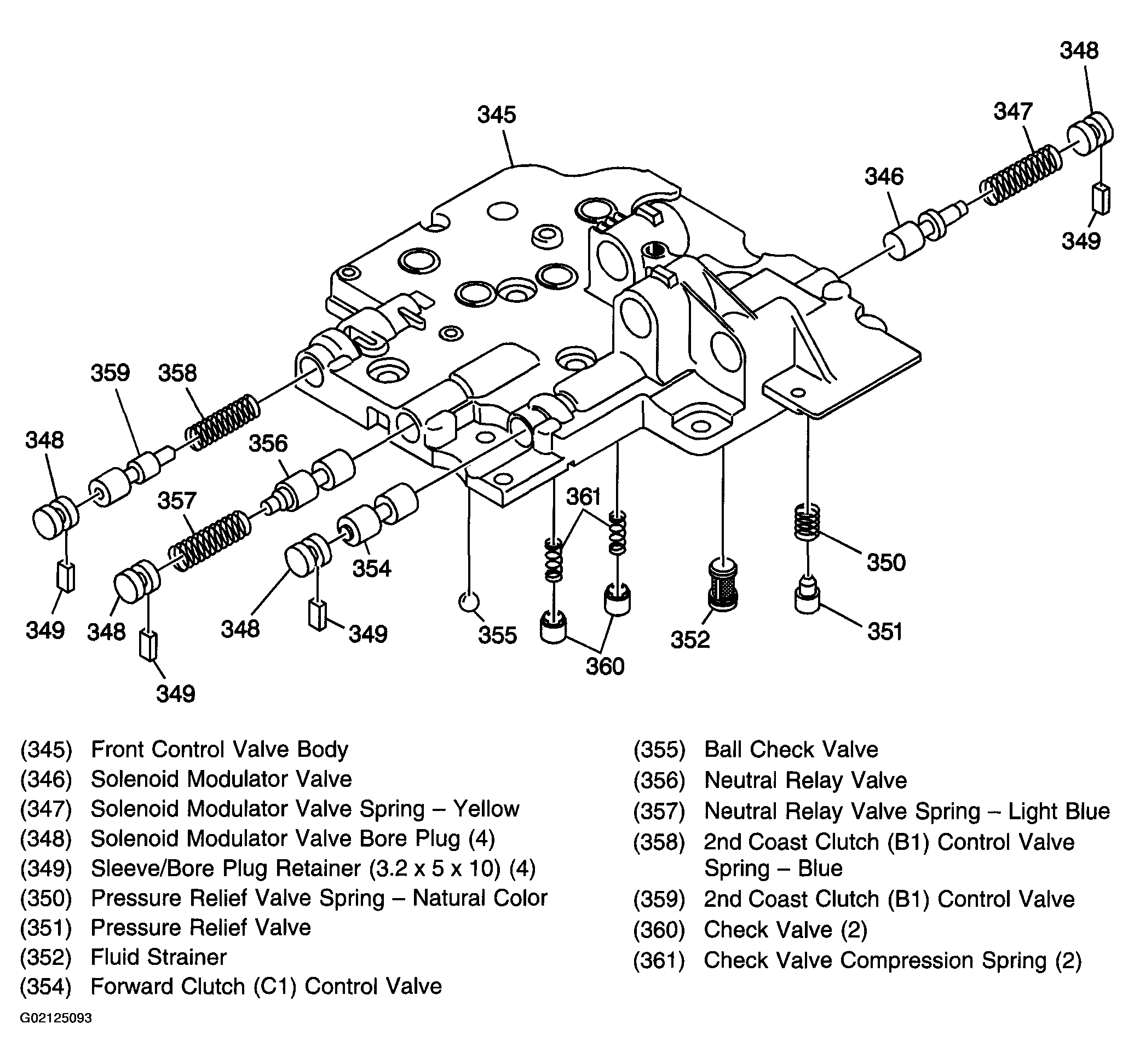

Fig 8: Front Control Valve Body Assembly Disassembled View
G02125093Courtesy of GENERAL MOTORS CORP.

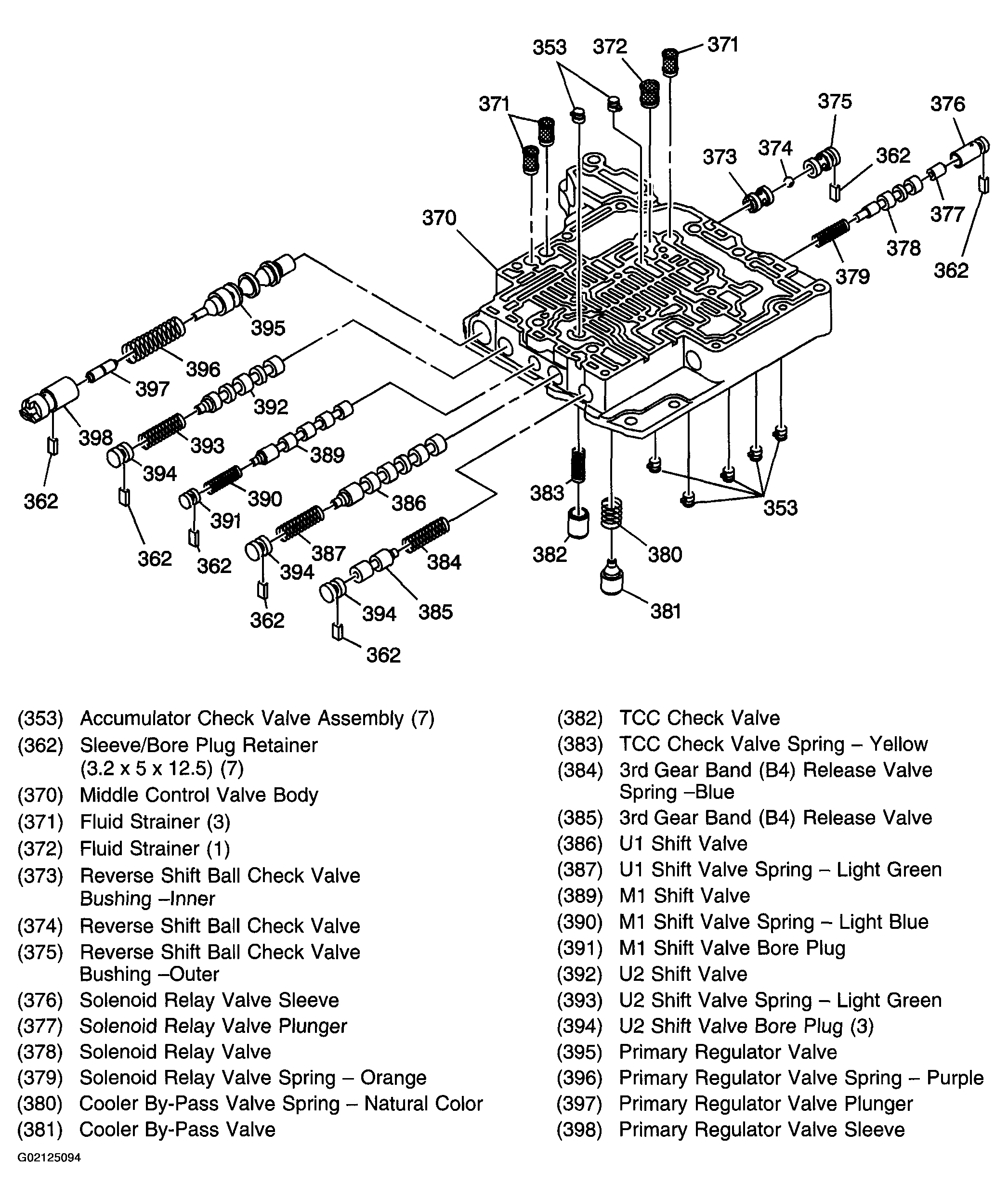

Fig 9: Middle Control Valve Body Assembly Disassembled View
G02125094Courtesy of GENERAL MOTORS CORP.

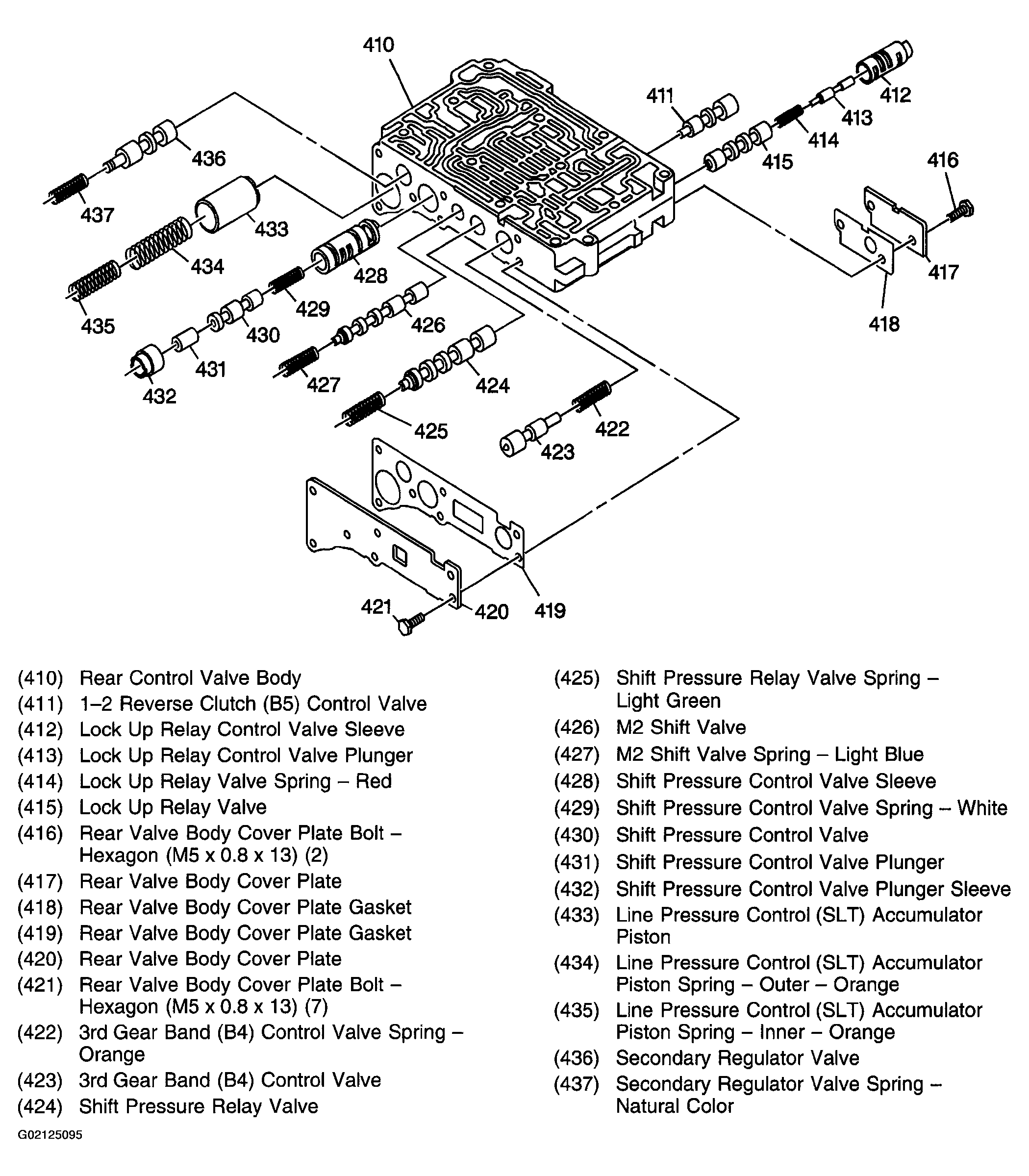

Fig 10: Rear Control Valve Body Assembly Disassembled View
G02125095Courtesy of GENERAL MOTORS CORP.

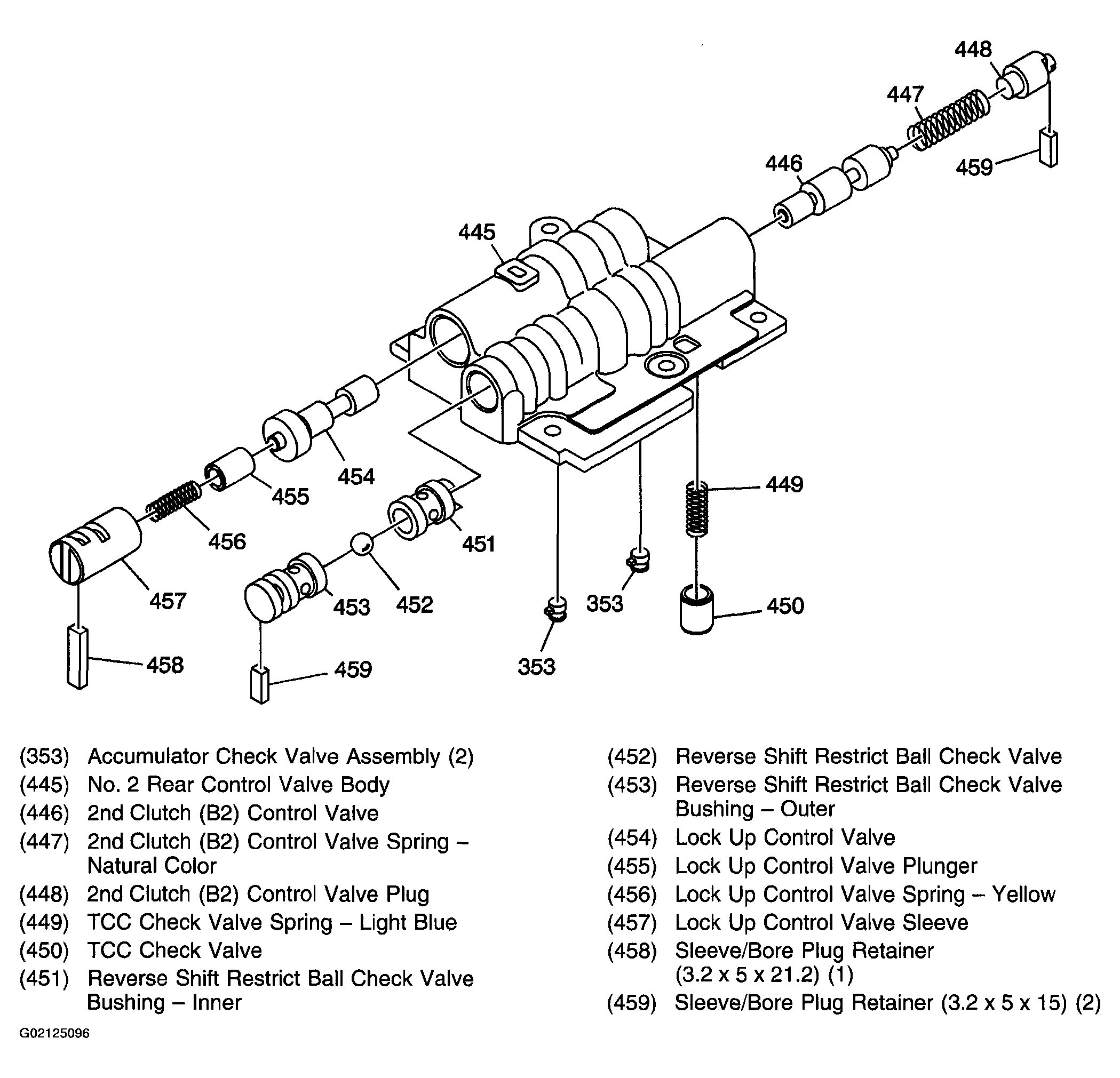

Fig 11: No. 2 Rear Control Valve Body Assembly Disassembled View
G02125096Courtesy of GENERAL MOTORS CORP.

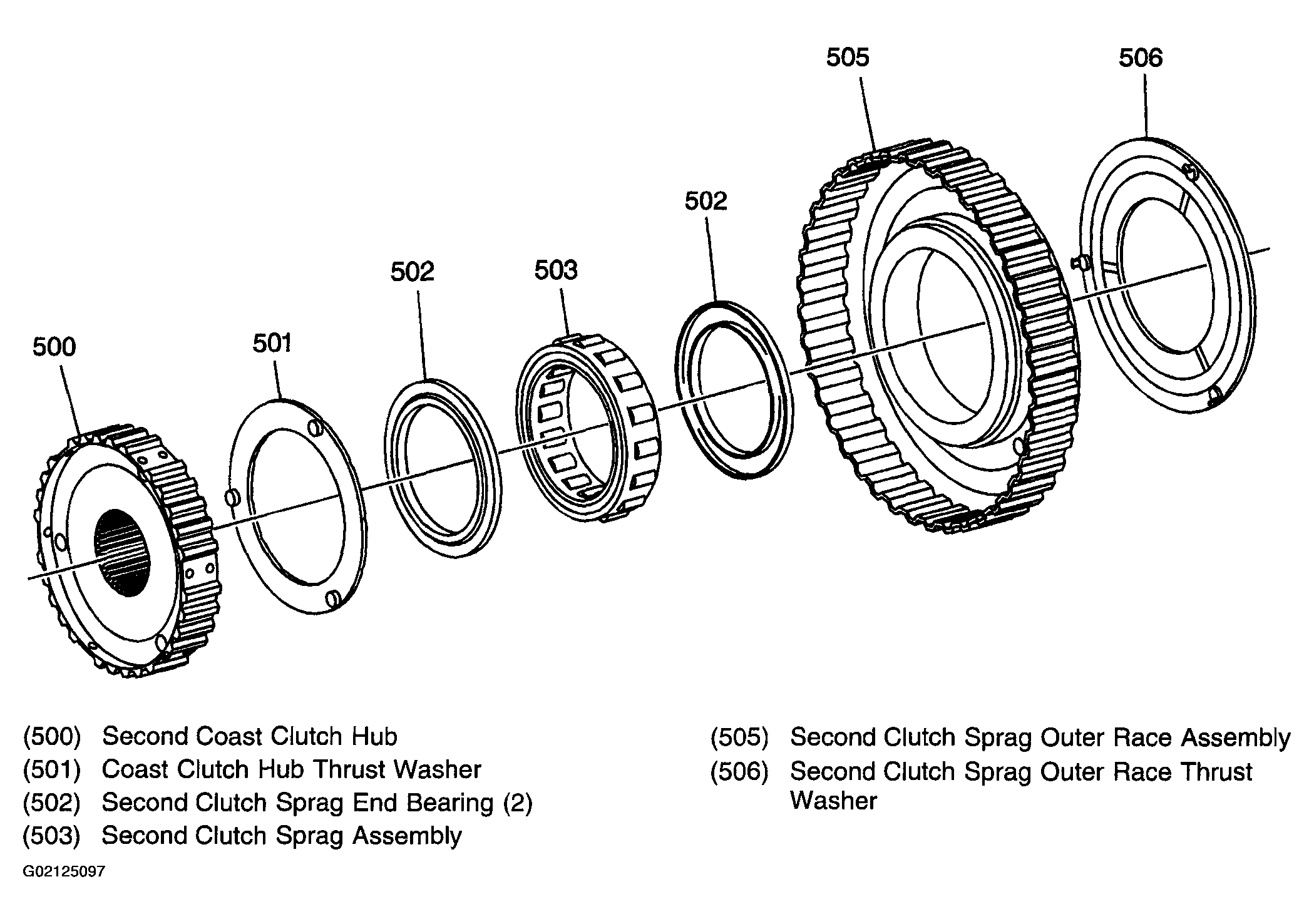

Fig 12: Second, Second Coast Clutch & Second Clutch Sprag Assembly Disassembled View
G02125097Courtesy of GENERAL MOTORS CORP.

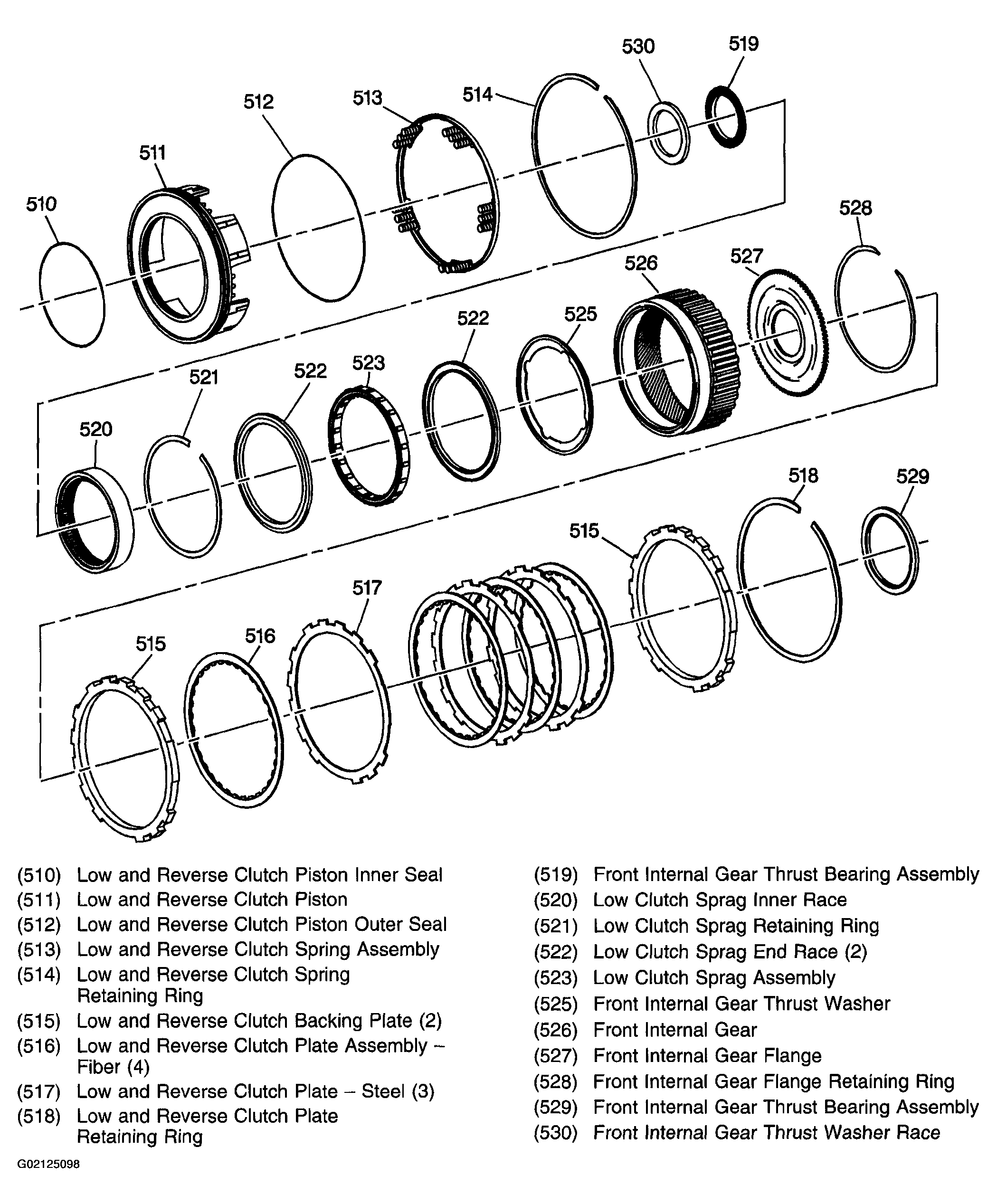

Fig 13: Low and Reverse Clutch & Front Internal Gear Assembly Disassembled View
G02125098Courtesy of GENERAL MOTORS CORP.

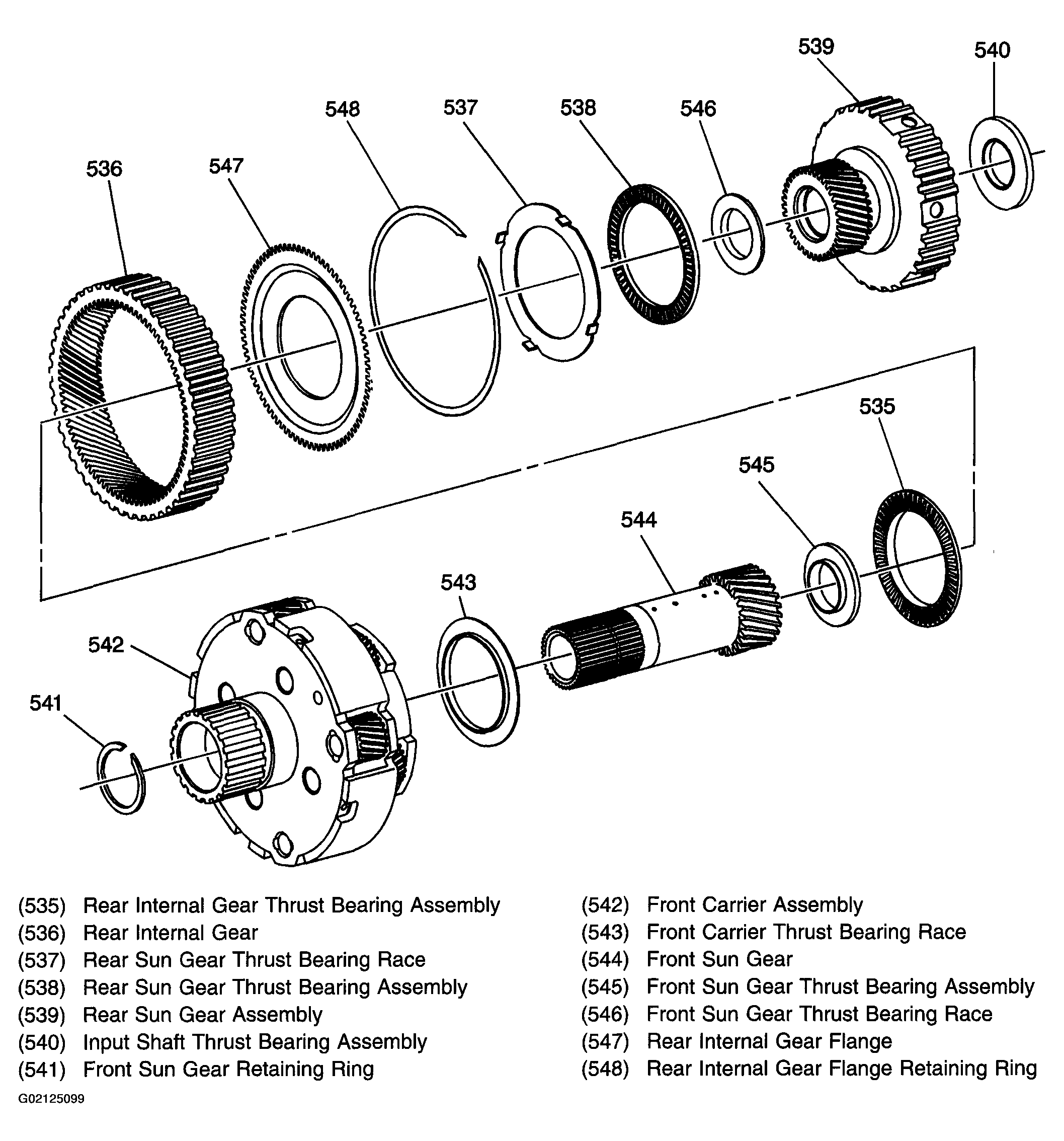

Fig 14: Rear Internal Gear Assembly Disassembled View
G02125099Courtesy of GENERAL MOTORS CORP.

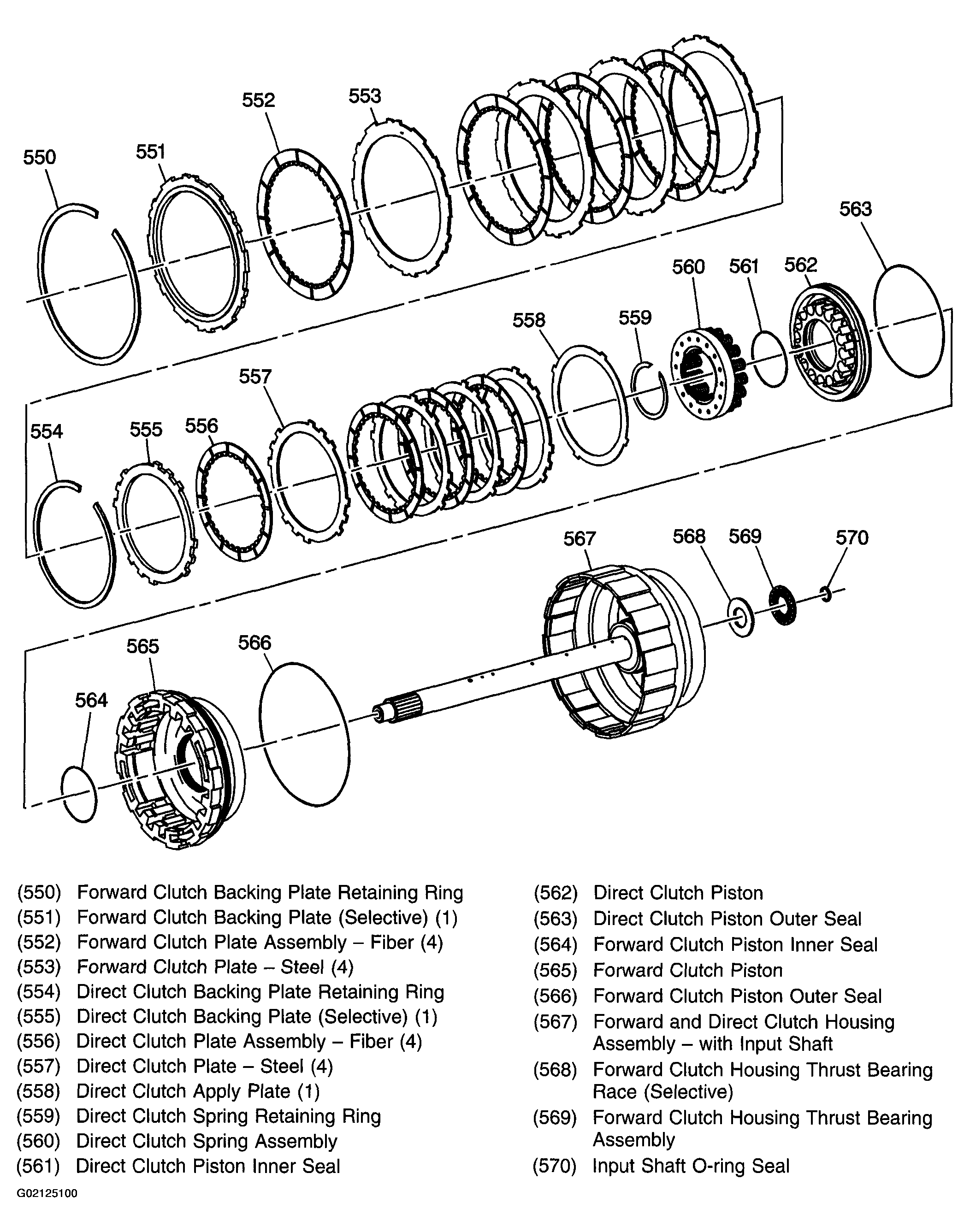

Fig 15: Forward & Direct Clutch Assembly Disassembled View
G02125100Courtesy of GENERAL MOTORS CORP.

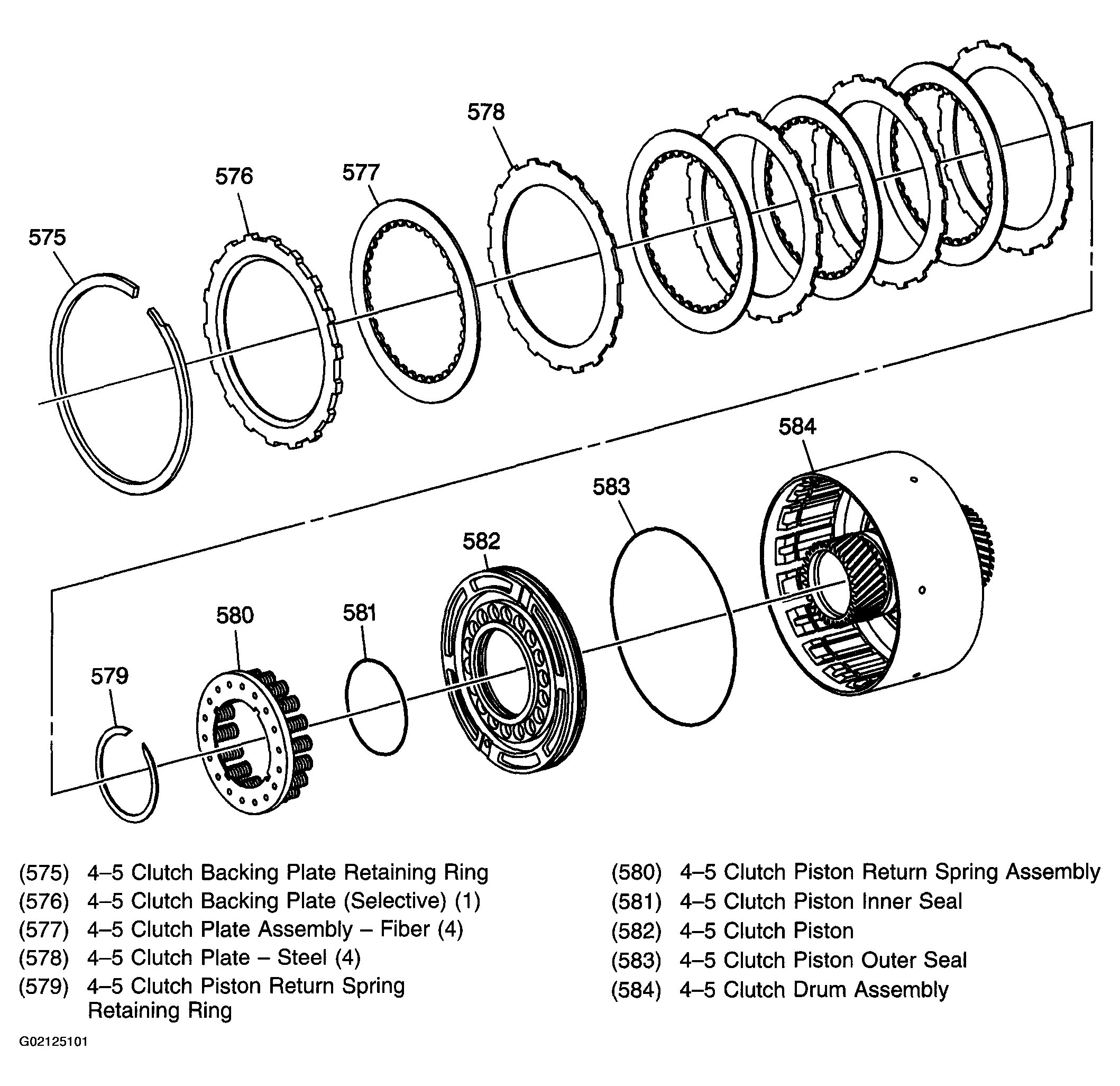

Fig 16: 4-5 Clutch Drum Assembly Disassembled View
G02125101Courtesy of GENERAL MOTORS CORP.

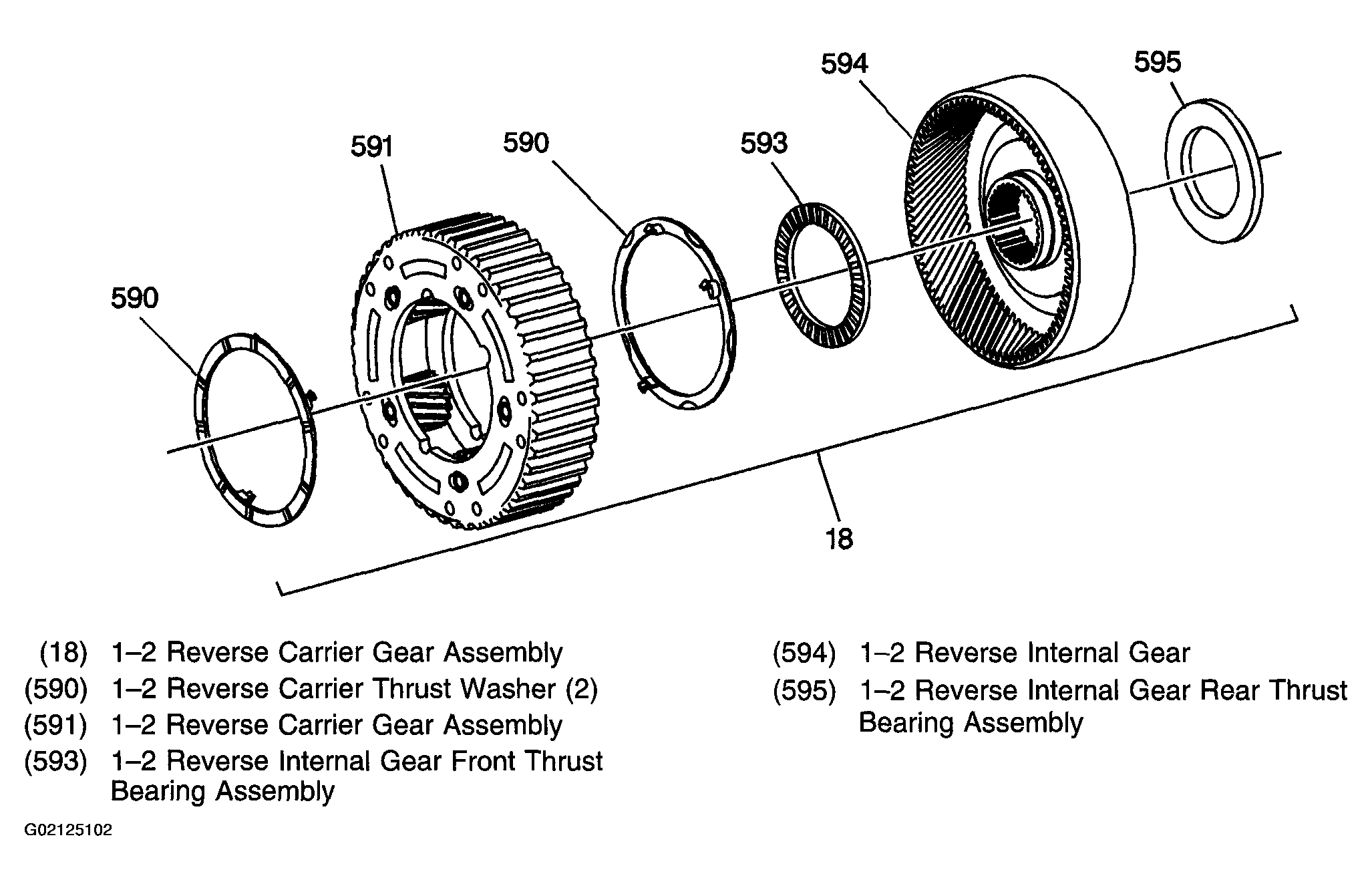

Fig 17: 1-2 Reverse Carrier Gear Assembly Disassembled View
G02125102Courtesy of GENERAL MOTORS CORP.

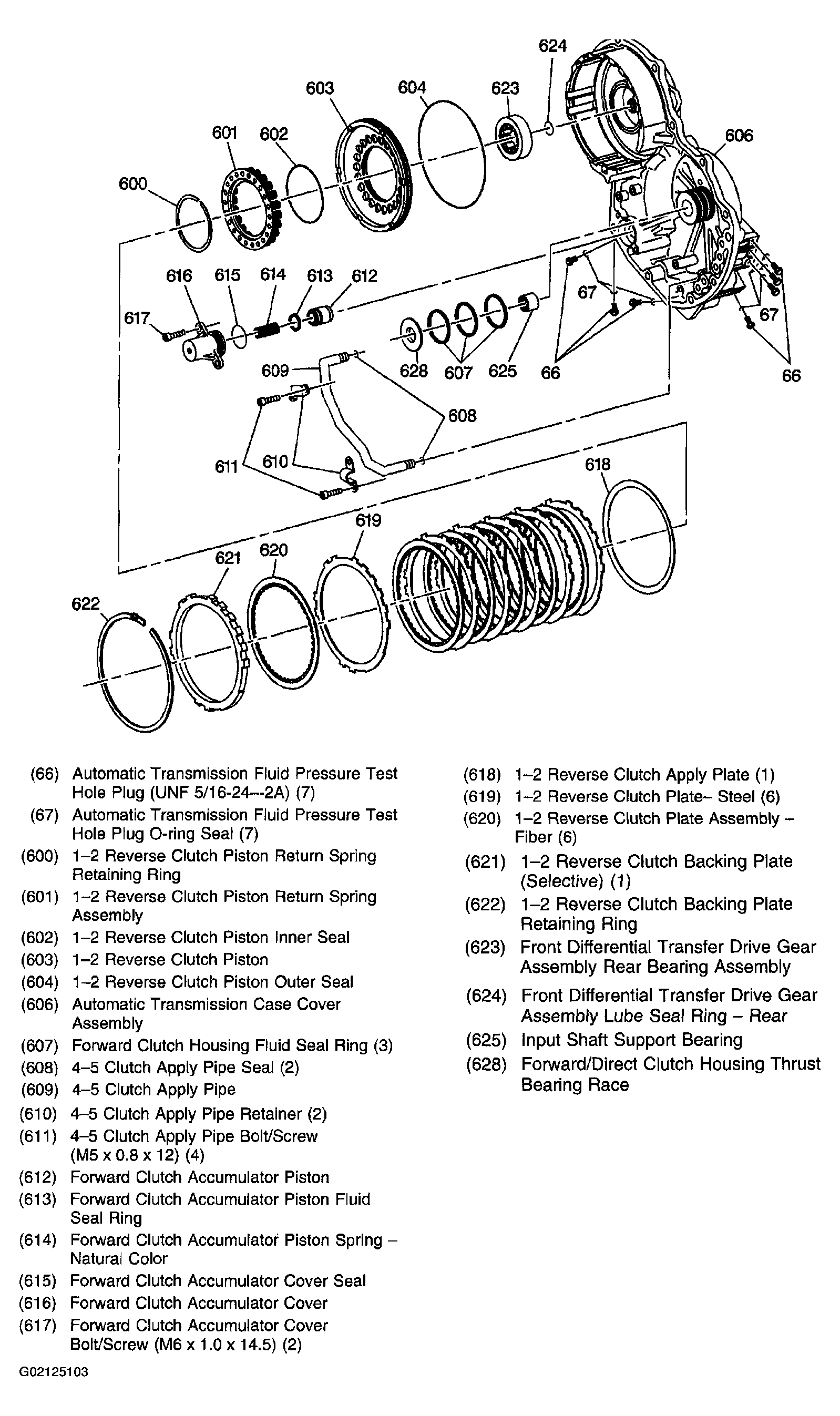

Fig 18: Automatic Transmission Case Cover Assembly & 1-2 Reverse Clutch Assembly Disassembled View
G02125103Courtesy of GENERAL MOTORS CORP.

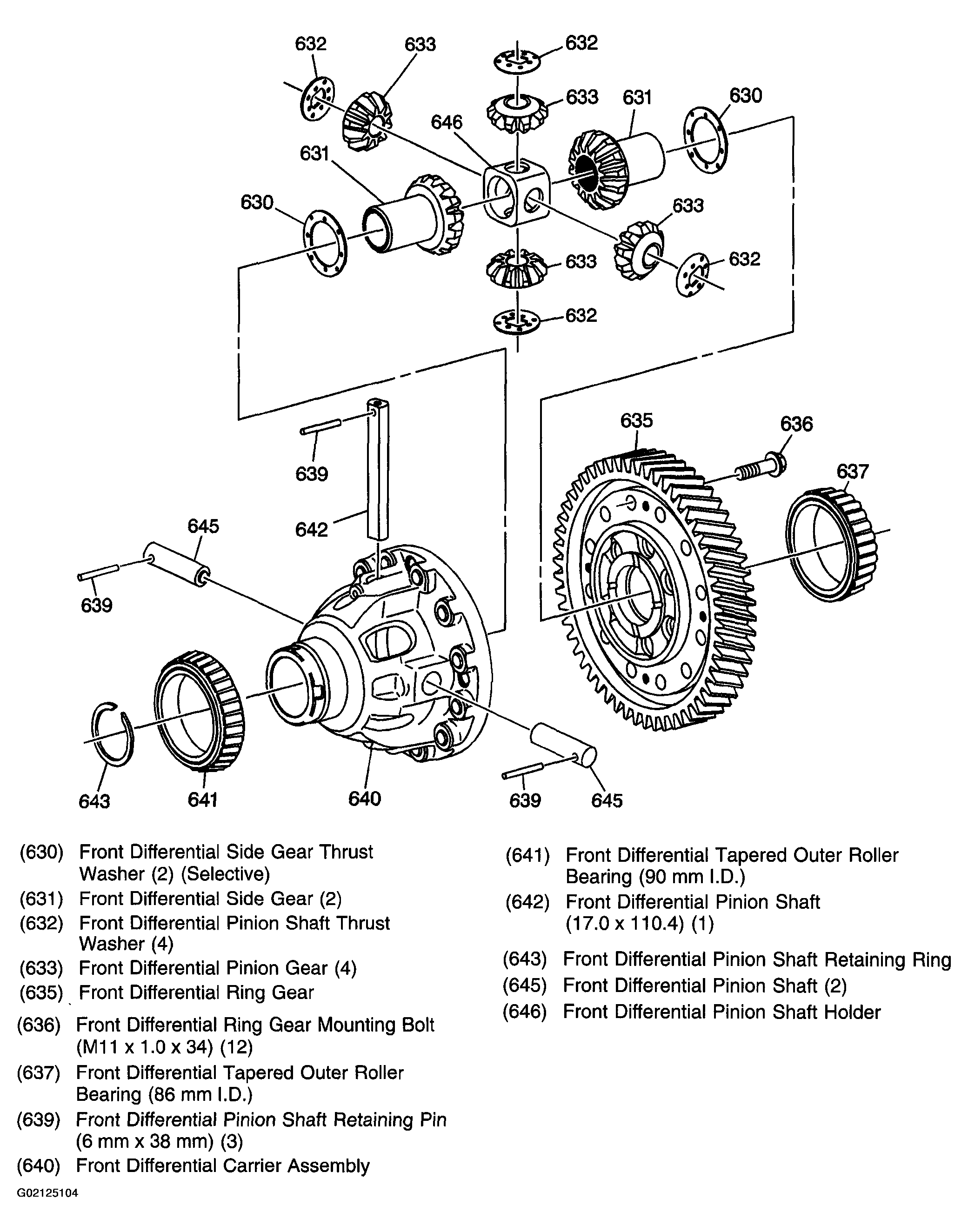

Fig 19: Front Differential Assembly Disassembled View
G02125104Courtesy of GENERAL MOTORS CORP.

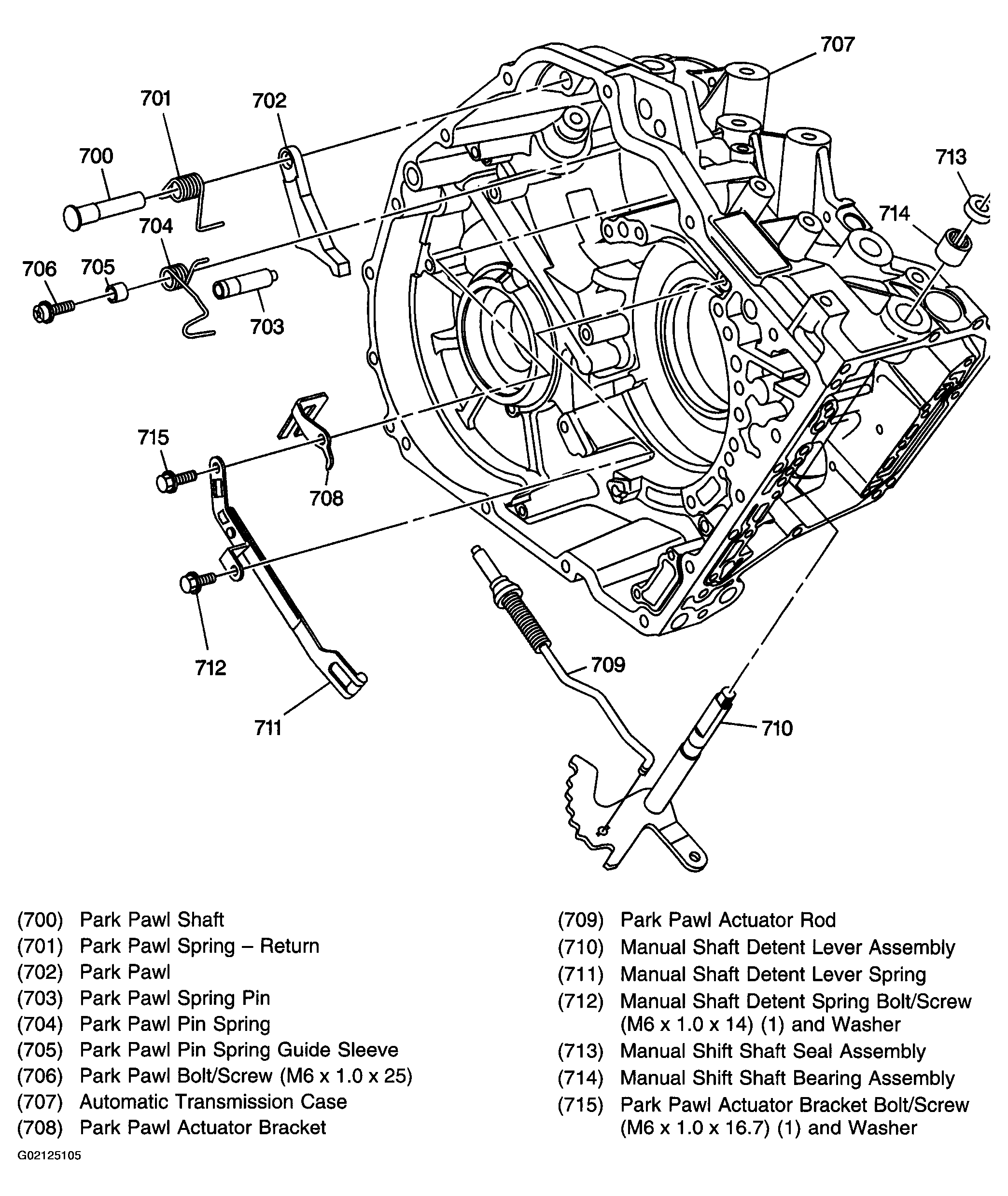

Fig 20: Park Pawl & Shift Linkage Assembly Disassembled View
G02125105Courtesy of GENERAL MOTORS CORP.
