Shift Control Assembly: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the left front wheel.
  2. Disconnect the shift cables from the transaxle. See Fig 1 .
  3. Shift the transaxle into Neutral.
  4. Remove the shifter guide bolt. See Fig 2 .
  5. Remove the 5 shifter retaining bolts. See Fig 3 .
  6. Remove the shifter assembly from the vehicle.

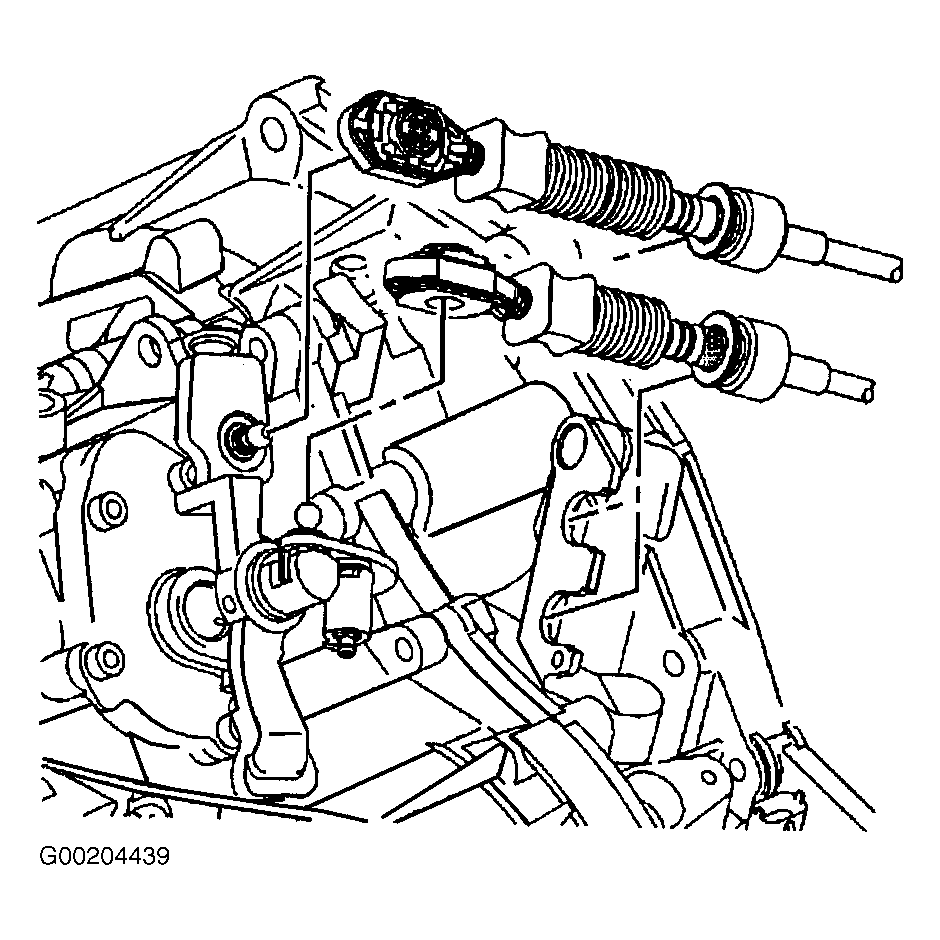

Fig 1: Disconnecting Shift Cables
G00204439Courtesy of GENERAL MOTORS CORP.

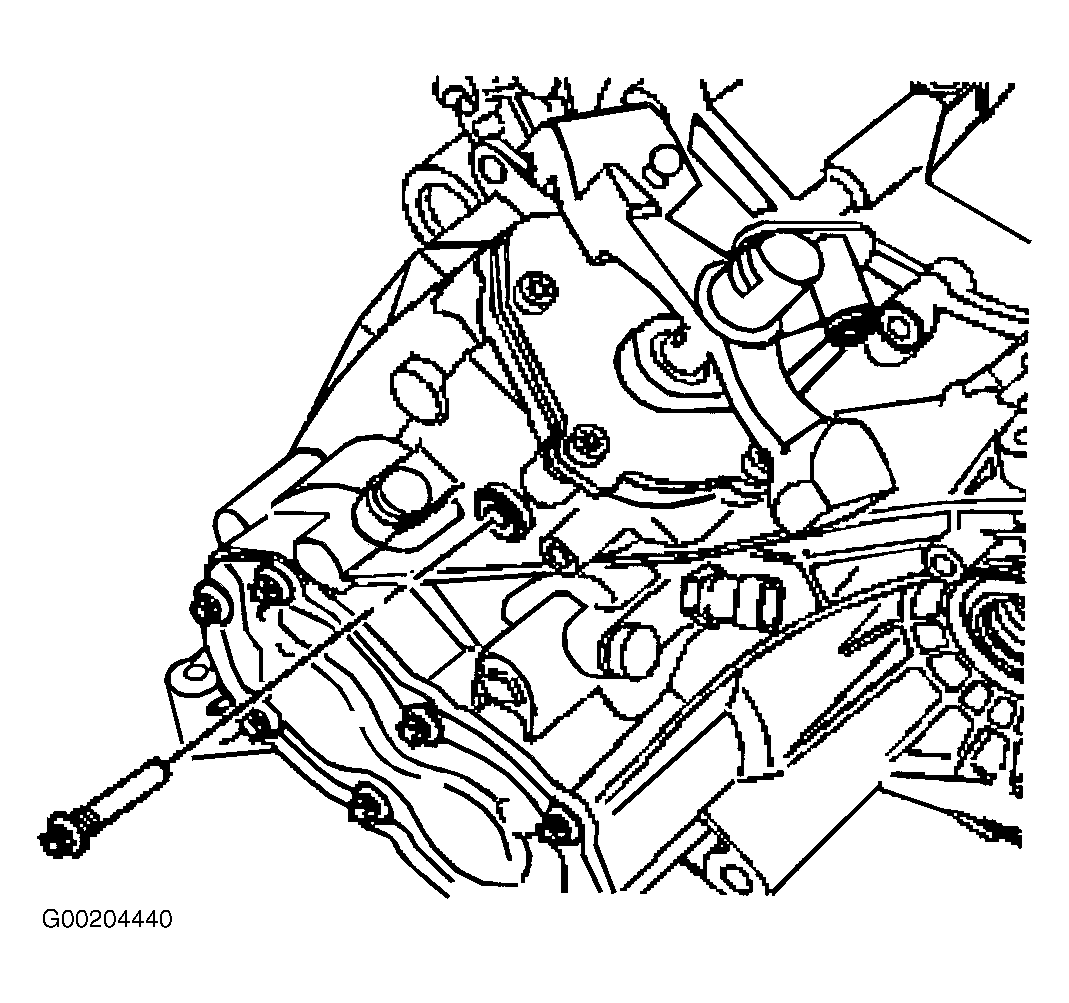

Fig 2: Removing Shifter Guide Bolt
G00204440Courtesy of GENERAL MOTORS CORP.
Fig 3: Removing Shifter Assembly
G00204441Courtesy of GENERAL MOTORS CORP.
