Charging System Test



CHARGING SYSTEM TEST

TOOLS REQUIRED
SA9154Z-A Starting and Charging System Tester

TEST

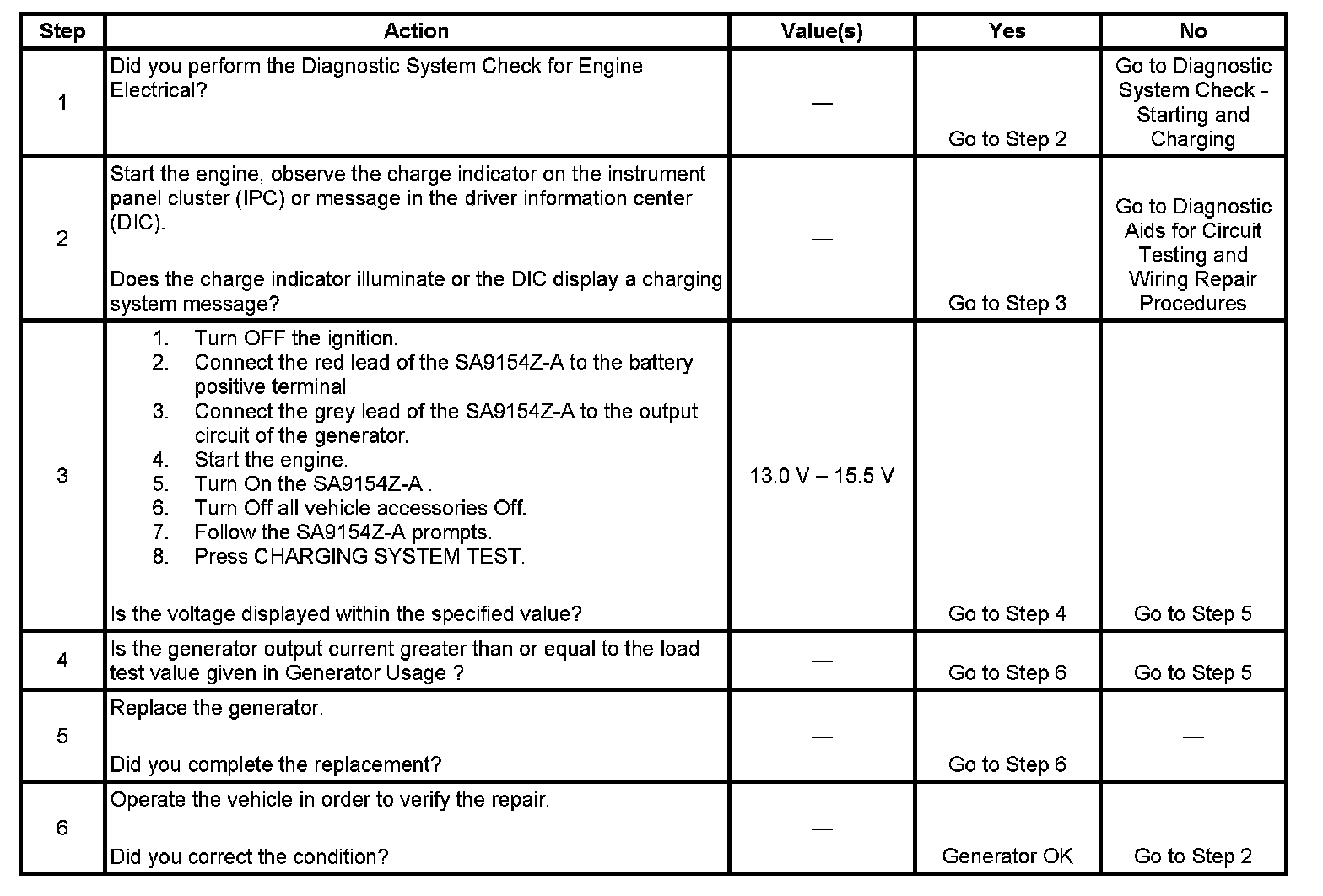

Steps 1 - 6:
