VT25-E Variable Transmission









Module Power, Ground, DLC, PNP Switch Signals, and Message Center Controls

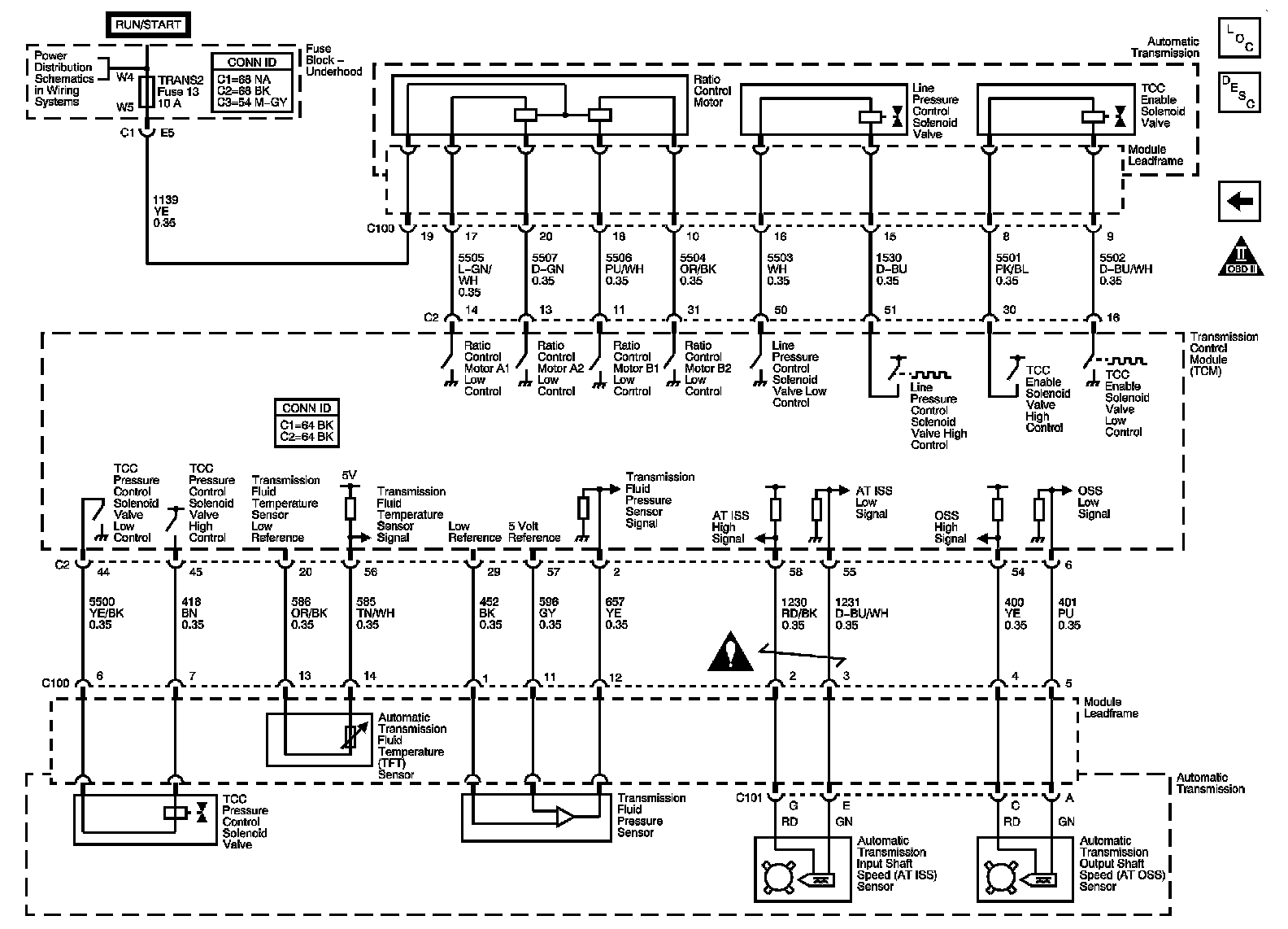

Ratio Control, Sensor, and Solenoids
