Tail Lamp
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Tail Lamp

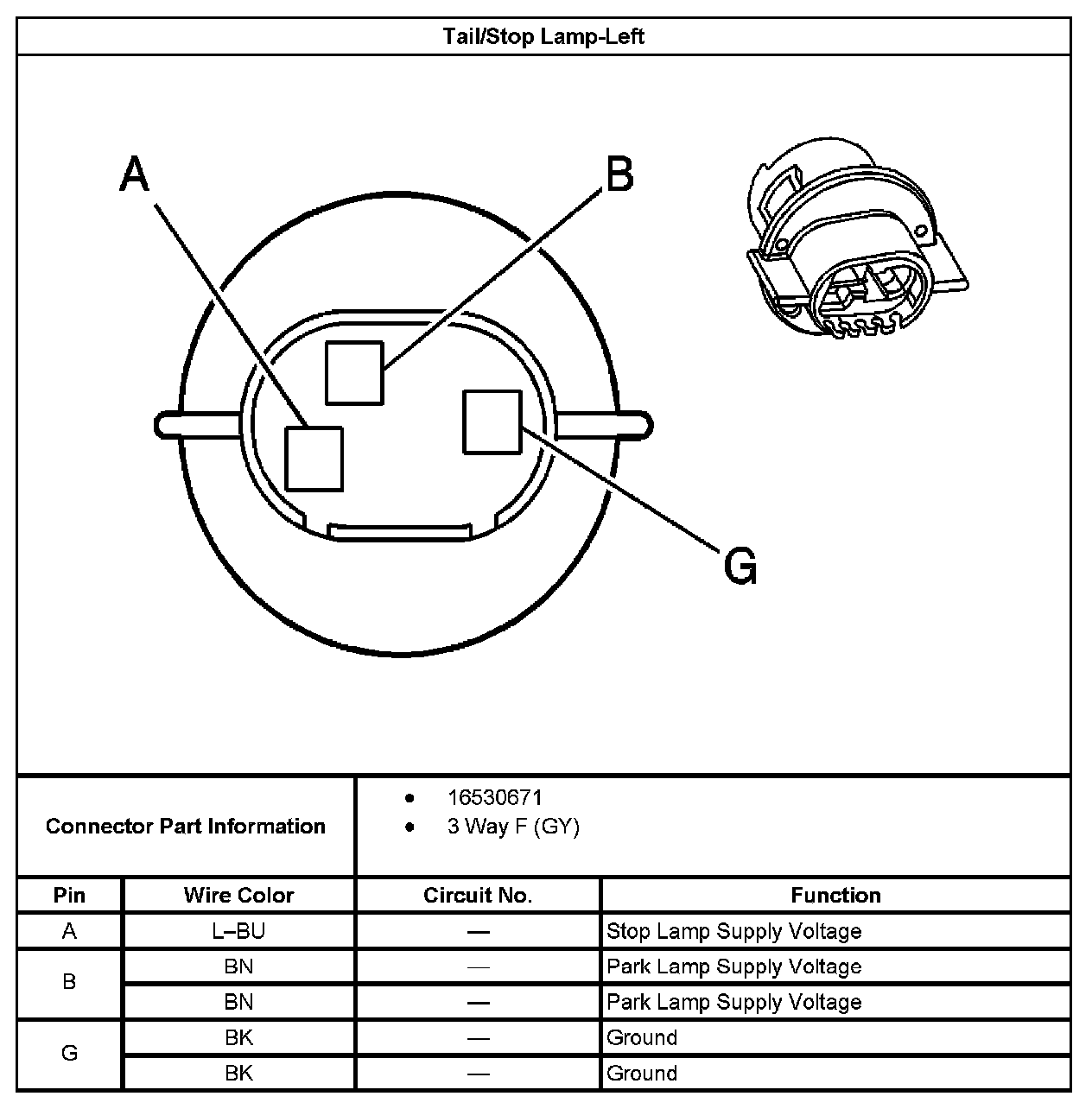

Tail/Stop Lamp - Left:

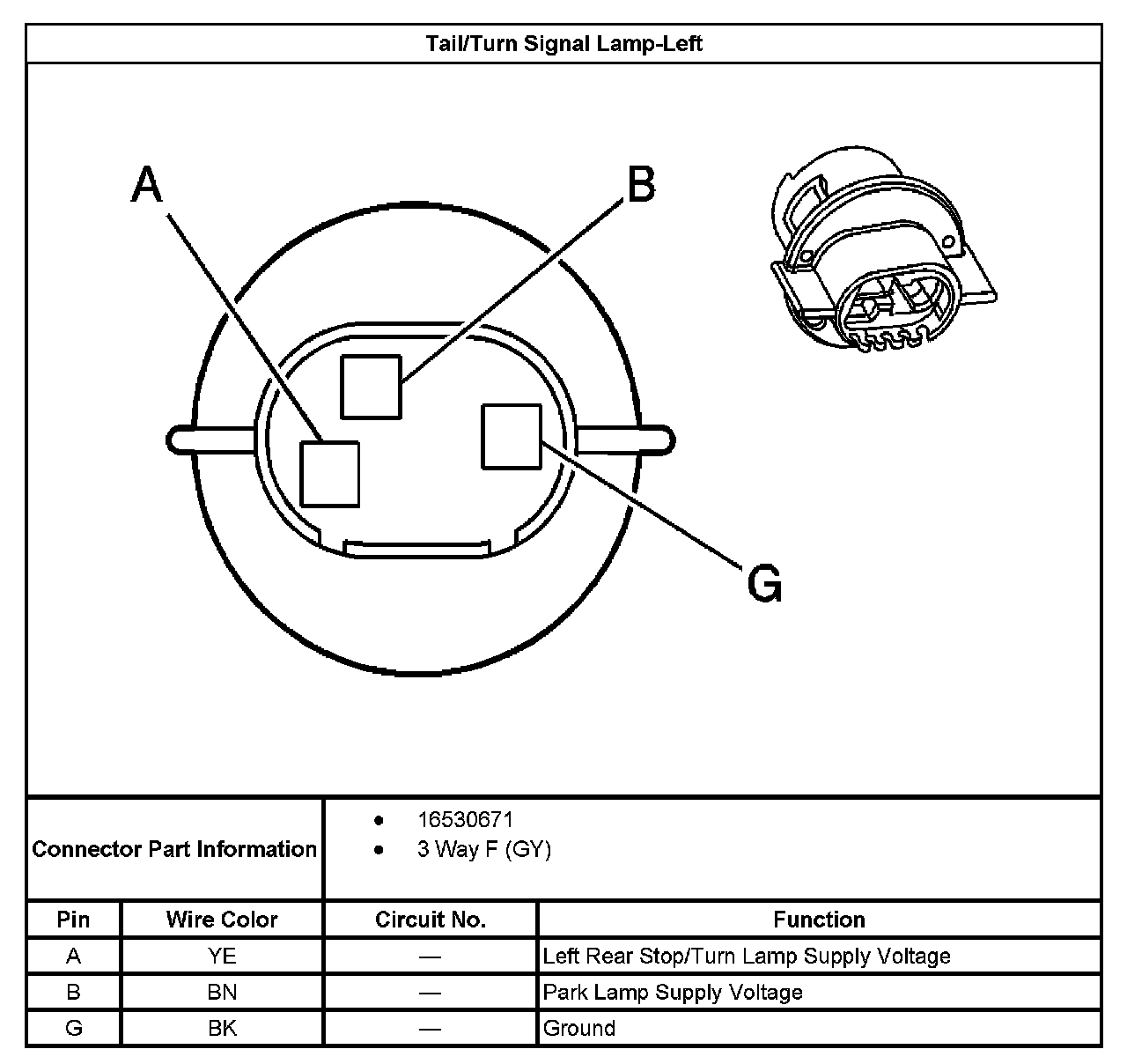

Tail/Turn Signal Lamp - Left:

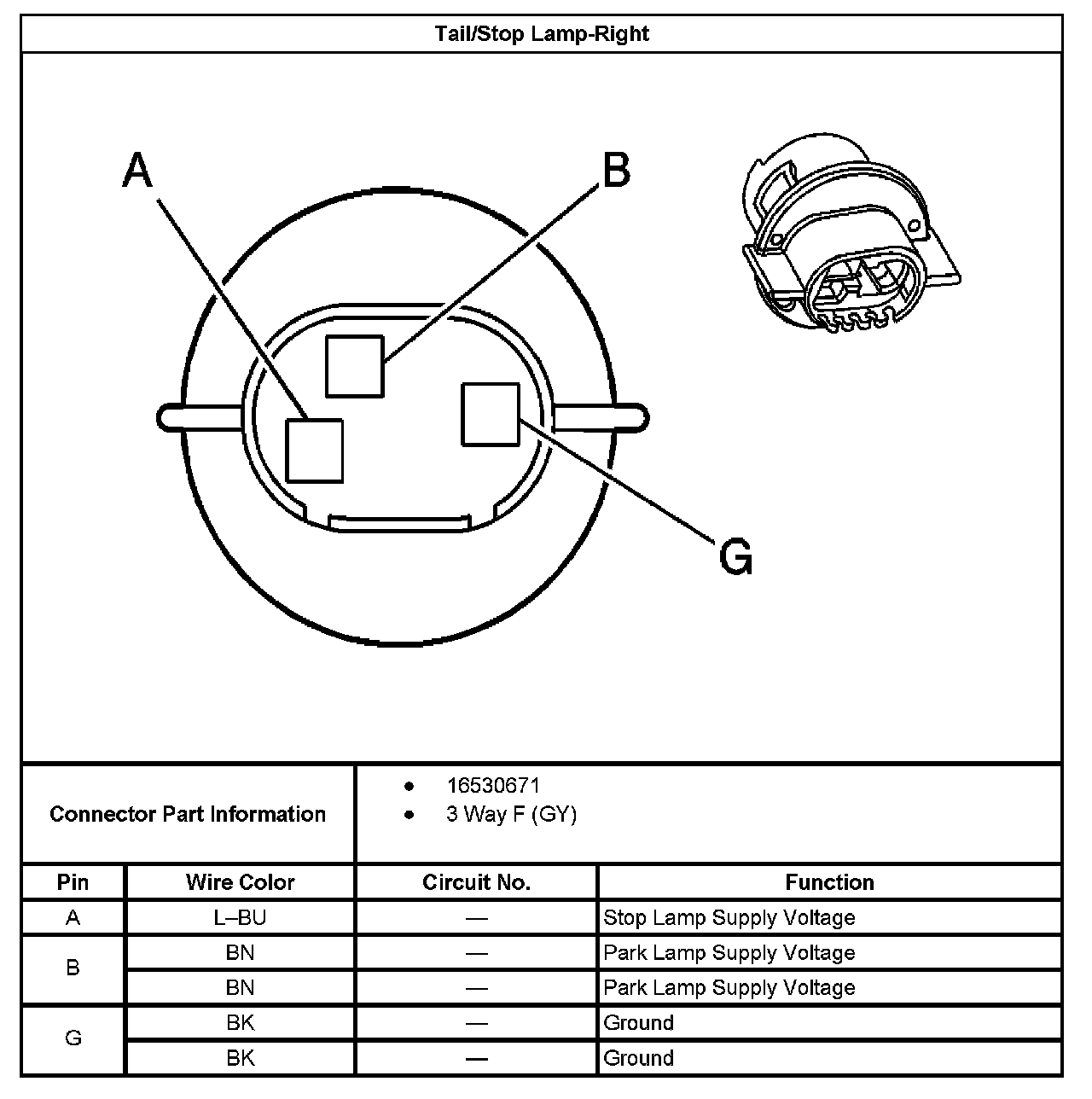

Tail/Stop Lamp - Right:

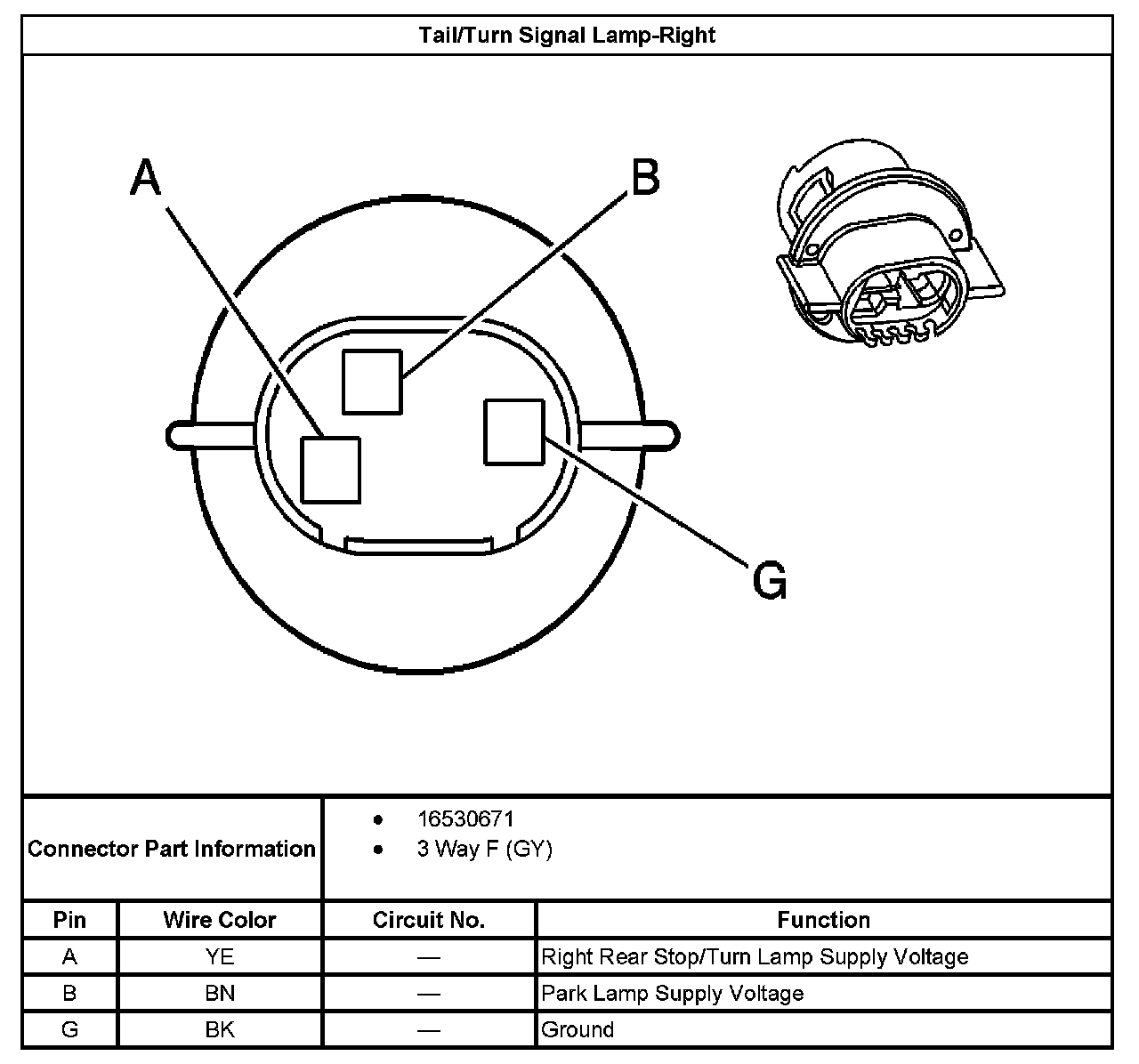

Tail/Turn Signal Lamp - Right:
