Impact Sensor

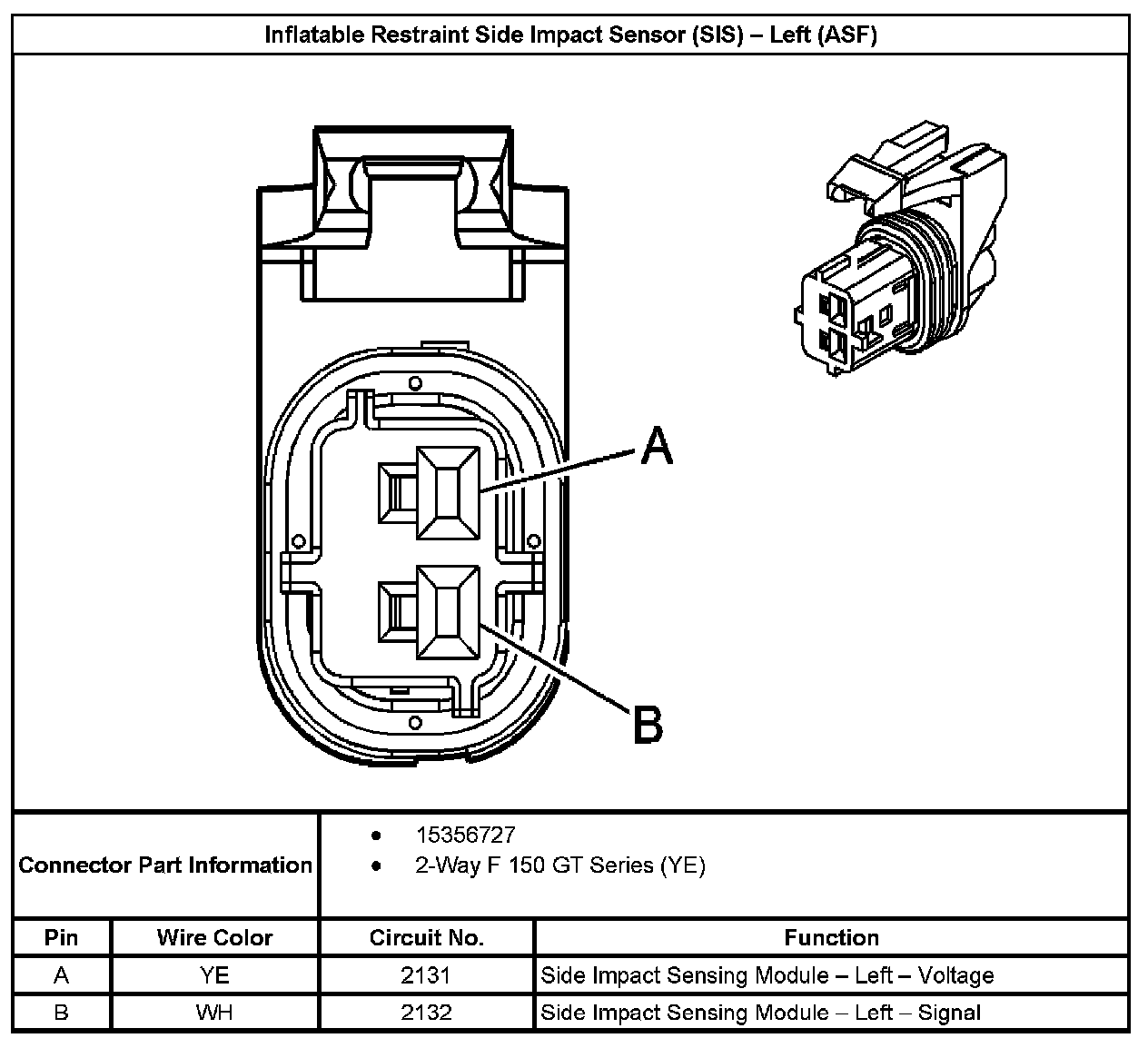

Inflatable Restraint Side Impact Sensor (SIS)-Left (With RPO Code ASF):

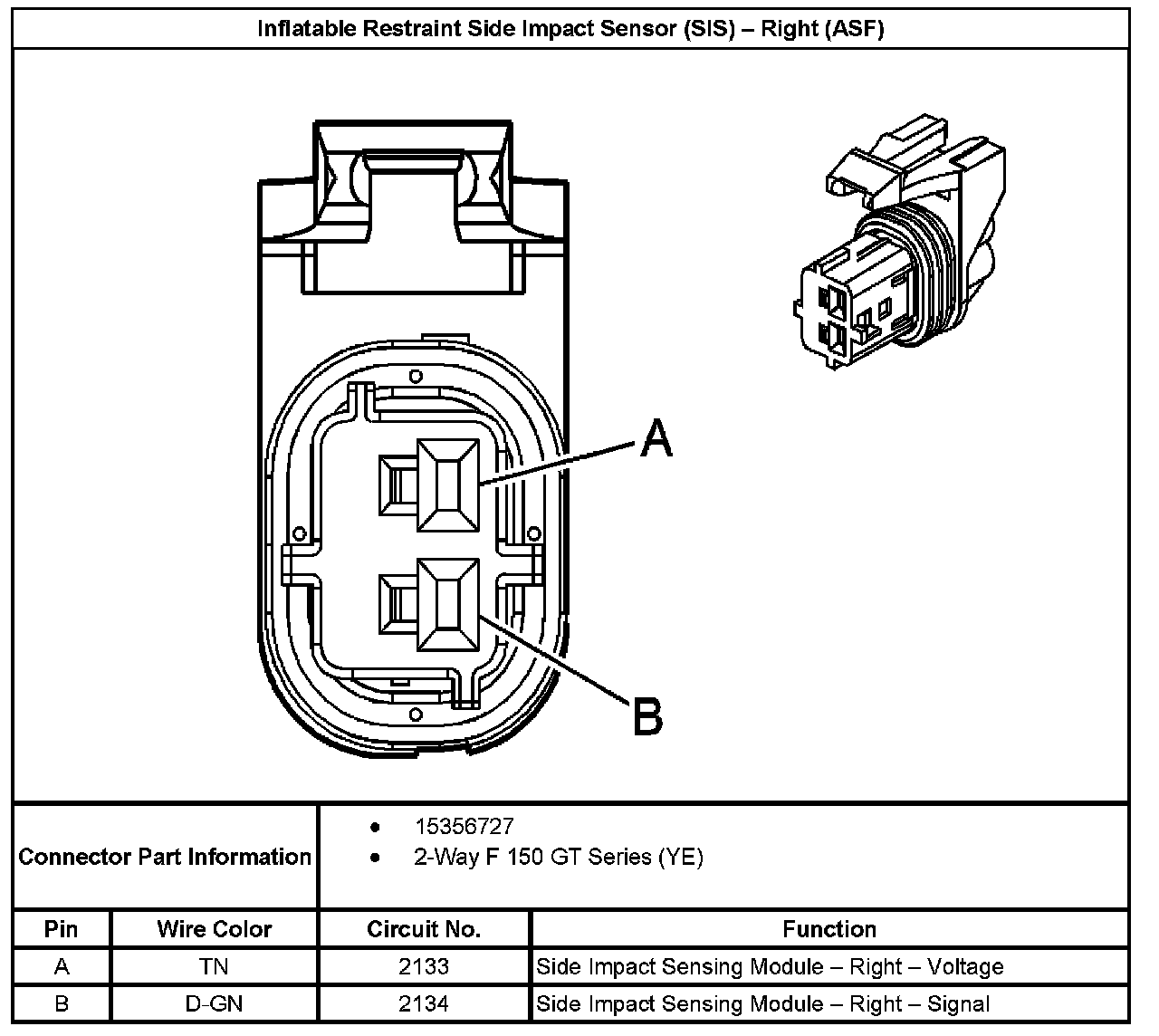

Inflatable Restraint Side Impact Sensor (SIS)-Right (With RPO Code ASF):
