Control Module, CVT


Automatic Transmission Related Connector End Views

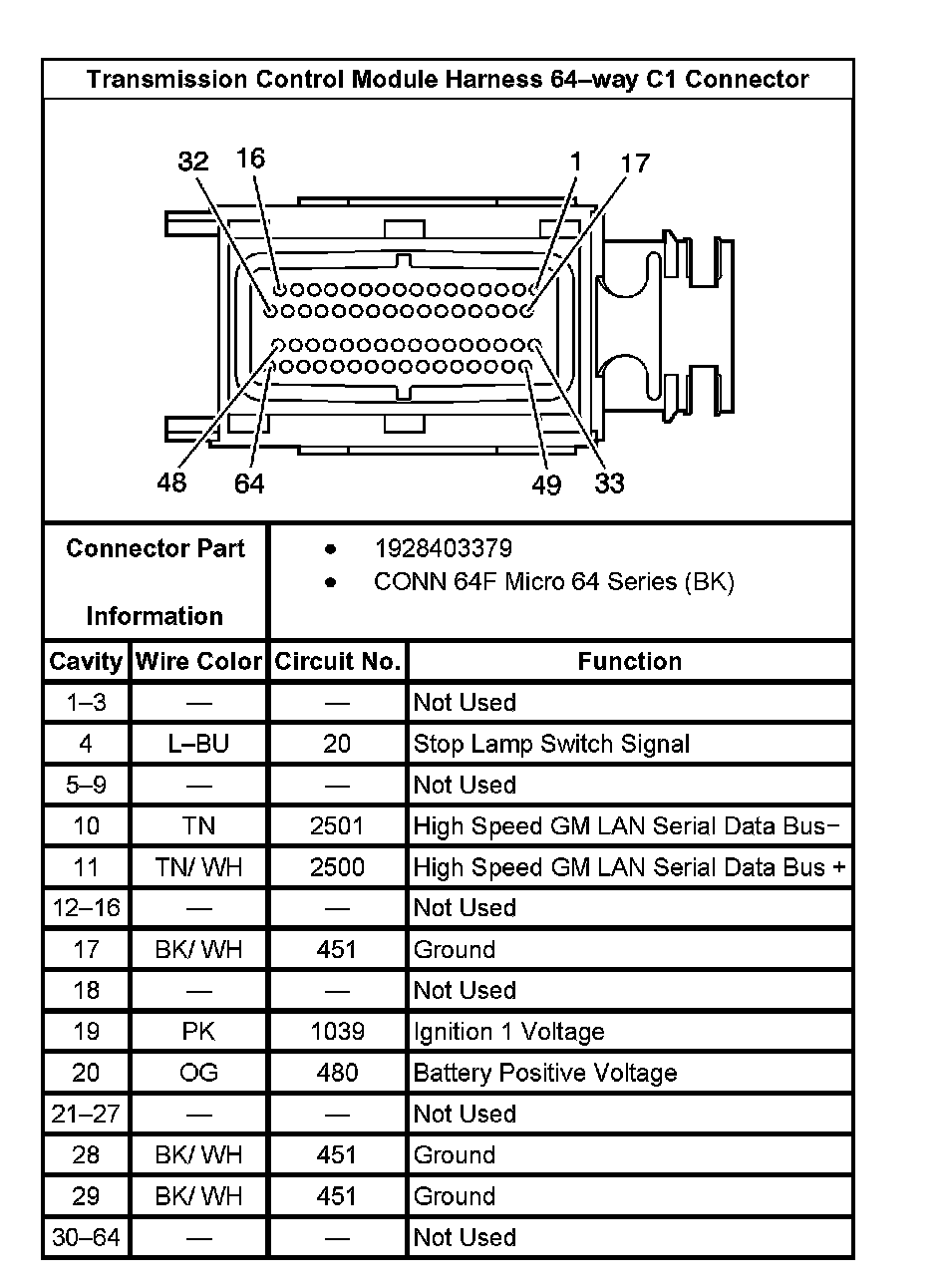

Transmission Control Module Harness 64-way C1 Connector

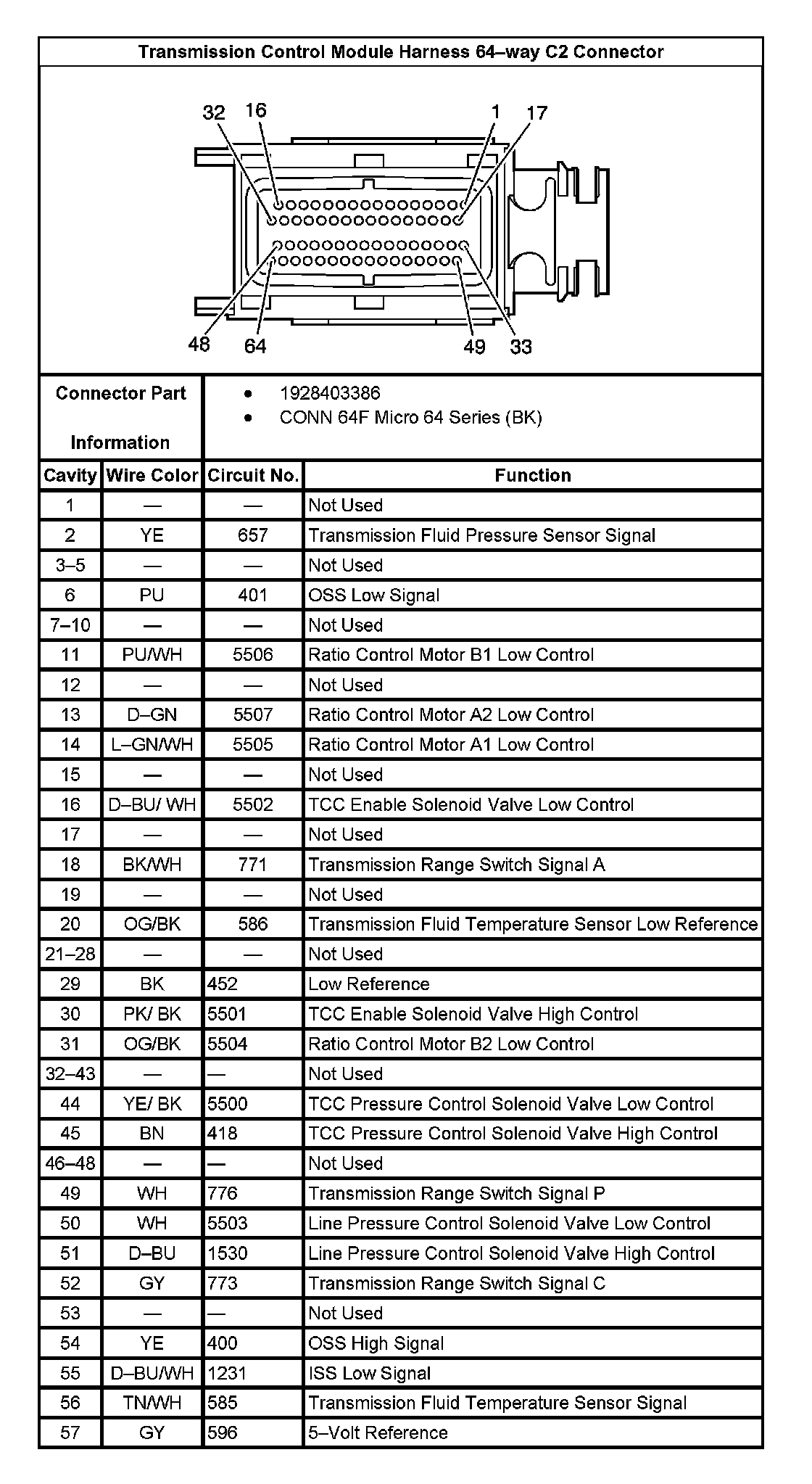

Transmission Control Module Harness 64-way C2 Connector





Transmission Control Module Harness 64-way C2 Connector
