VT25E Transaxle On-Vehicle Service Program (02-T-68)

Publication date: 2002-10-01
Reference number: 02-T-68

VT25E TRANSAXLE ON-VEHICLE SERVICE PROGRAM

TECHNICAL SERVICE BULLETIN

Reference Number(s): 02-T-68, Date of Issue: October 2002

SATURN:	2002-2003 VUE vehicles with 2.2L L4 Engine (VIN F - RPO L61) and VT25E Transaxle (RPO M75/M16)
SECTION:	07 - Transmission/Transaxle

CONDITION

The purpose of this bulletin is to outline the VT25E transaxle limited on-vehicle service program for the 2002-2003 model year Saturn VUE vehicles. Beginning October 15th, 2002, VT25E limited on-vehicle service is authorized for the components listed in this bulletin. The limited on-vehicle service program is to be used in conjunction with the VT25E transaxle replacement program, which will remain effective until April 15th, 2003 (refer to bulletin number (02-T-32A ) VT25-E TRANSAXLE ASSEMBLY REPLACEMENT PROGRAM. Beginning April 15th, 2003, full off-vehicle repair of the VT25E transaxle will be authorized to Saturn retailers. A separate service bulletin will be published to provide the details at a later date.

Authorized VT25E Transaxle Limited On-Vehicle Repair Components

NOTE: Use DEX-CVT(R) fluid (P/N 22688912) only. Use of any fluid other than DEX-CVT(R) will cause internal transaxle damage.

IMPORTANT: Add one unit (10 CC syringe) of DEX-CVT(R) additive (P/N 22697447) whenever an unrecoverable loss of fluid occurs during an authorized limited on vehicle repair. Minor fluid loss, such as minor drips that may occur during the fluid checking procedure, does not require the addition of the additive.

IMPORTANT: VT25E transaxle components not listed in this bulletin are not authorized for repair and must be serviced under the replacement program.

Beginning October 15, 2002, the following VT25E components are authorized for on-vehicle repair for the 2002-2003 model year Saturn VUE vehicles.

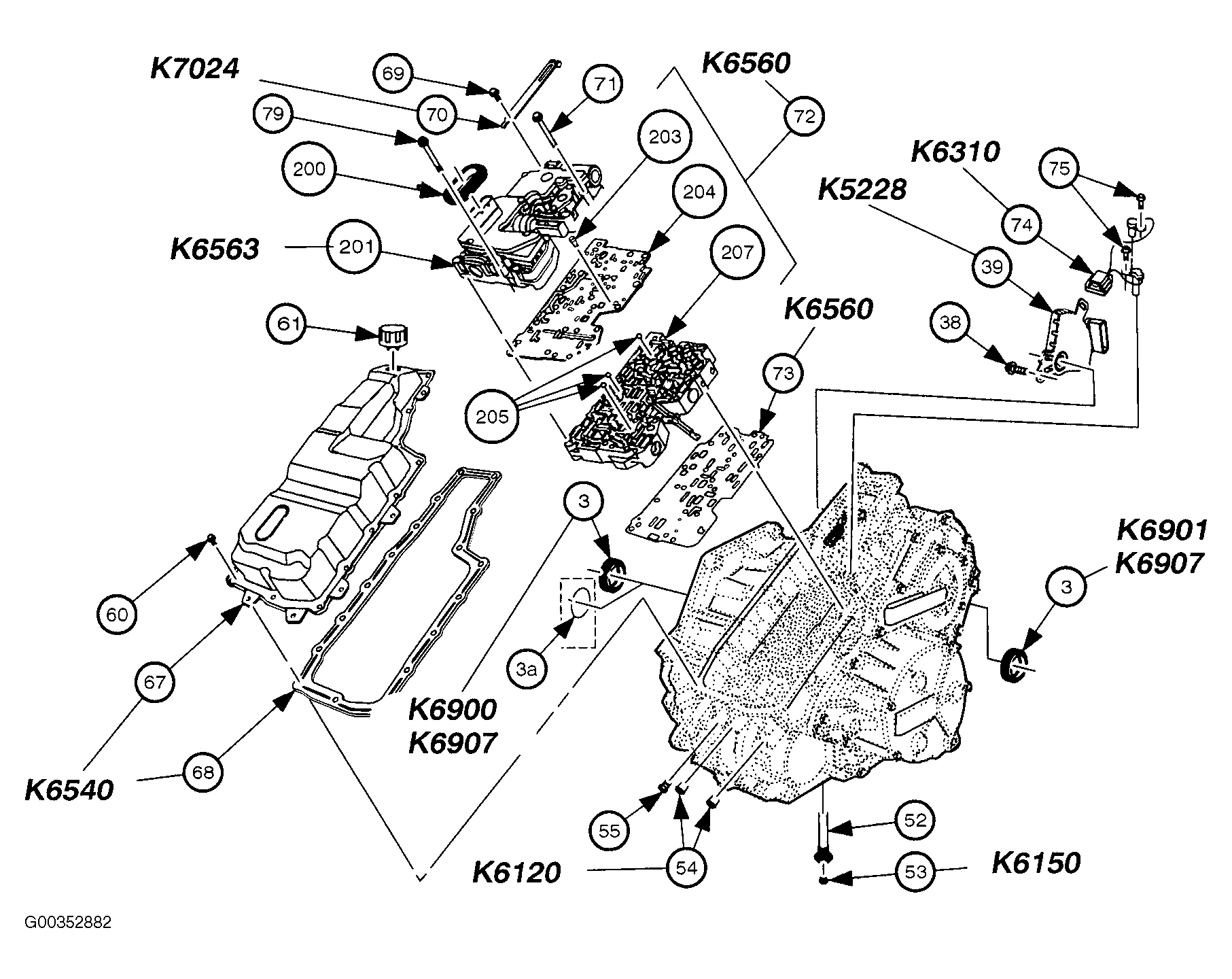

Fig 1: VT25E Transaxle Components

PART NAMES AND NUMBERS

Illustration #	Part #	Part Name	Model Year Application
(3)	24211013	Front Wheel Drive Shaft Oil Seal Asm	2002-2003
(3A)	24214487	Front Wheel Drive Shaft Oil Seal Asm O-Ring (AWD)	2002-2003
(38)	11517517	Park/Neutral Position Switch Asm Bolt/Screw	2002-2003
(39)	24214519	Park/Neutral Position Switch Asm	2002-2003
(52)	24219928	Transmission Fluid Fill Lower Tube	2002-2003
(53)	24220892	Transmission Fluid Fill Lower Tube Plug	2002-2003
(54)	24200326	Transmission Fluid Cooler Pipe Fitting Seal	2002-2003
(55)	444613	Automatic Transmission Fluid Pressure Test Hole Plug	2002-2003
(60)	24211086	Control Valve Body Cover Bolt/Screw	2002-2003
(61)	24220452	Automatic Transmission Vent Cap	2002-2003
(67)	24216187	Control Valve Body Cover	2002-2003
(68)	24220201	Control Valve Body Cover Gasket	2002-2003
(69)	11517520	Manual Shaft Detent Asm Bolt/Screw	2002-2003
(70)	24210998	Manual Shaft Detent Asm	2002-2003
(71)	24220136	Control Valve Body Bolt/Screw (Black)	2002-2003
(72)	24221585	Control Valve Body Asm (Complete)	2002
(72)	24224342	Control Valve Body Asm (Complete)	2003
(73)	24221858	Control Valve Body Spacer (w/Gasket) Plate Asm	2002
(73)	24221767	Control Valve Body Spacer (w/Gasket) Plate Asm	2003
(74)	24216132	Automatic Transmission Input & Output Speed Sensor Asm	2002-2003
(75)	8682650	Automatic Trans. Input & Output Speed Sensor Bolt/Screw	2002-2003
(79)	24220135	Control Valve Body Bolt/Screw (Silver)	2002-2003
(200)	24216446	Control Valve Body Cover Wiring Connector Hole Seal	2002-2003
(201)	24220363	Control Solenoid Valve Assembly	2002
(201)	24223190	Control Solenoid Valve Assembly	2003
(203)	8651658	Automatic Transmission Fluid Pump Pressure Screen Asm	2002-2003
(204)	24221859	Control Valve Body Spacer (w/Gasket) Plate Asm	2002-2003
(205)	104918	Control Valve Body Ball Check Valve	2002-2003
(207)	24221586	Control Valve Body Asm (Partial)	2002
(207)	24224340	Control Valve Body Asm (Partial)	2003

PARTS INFORMATION

For the appropriate part names and numbers, please reference the list provided in this bulletin.

WARRANTY INFORMATION

To receive credit for any repairs during the warranty coverage period, submit a claim through the Saturn Dealer System, or if another procedure is performed, refer to the appropriate Electronic Labor Time Guide for the correct Labor Operation Code and Time.
