Lubrication System Troubleshooting Chart

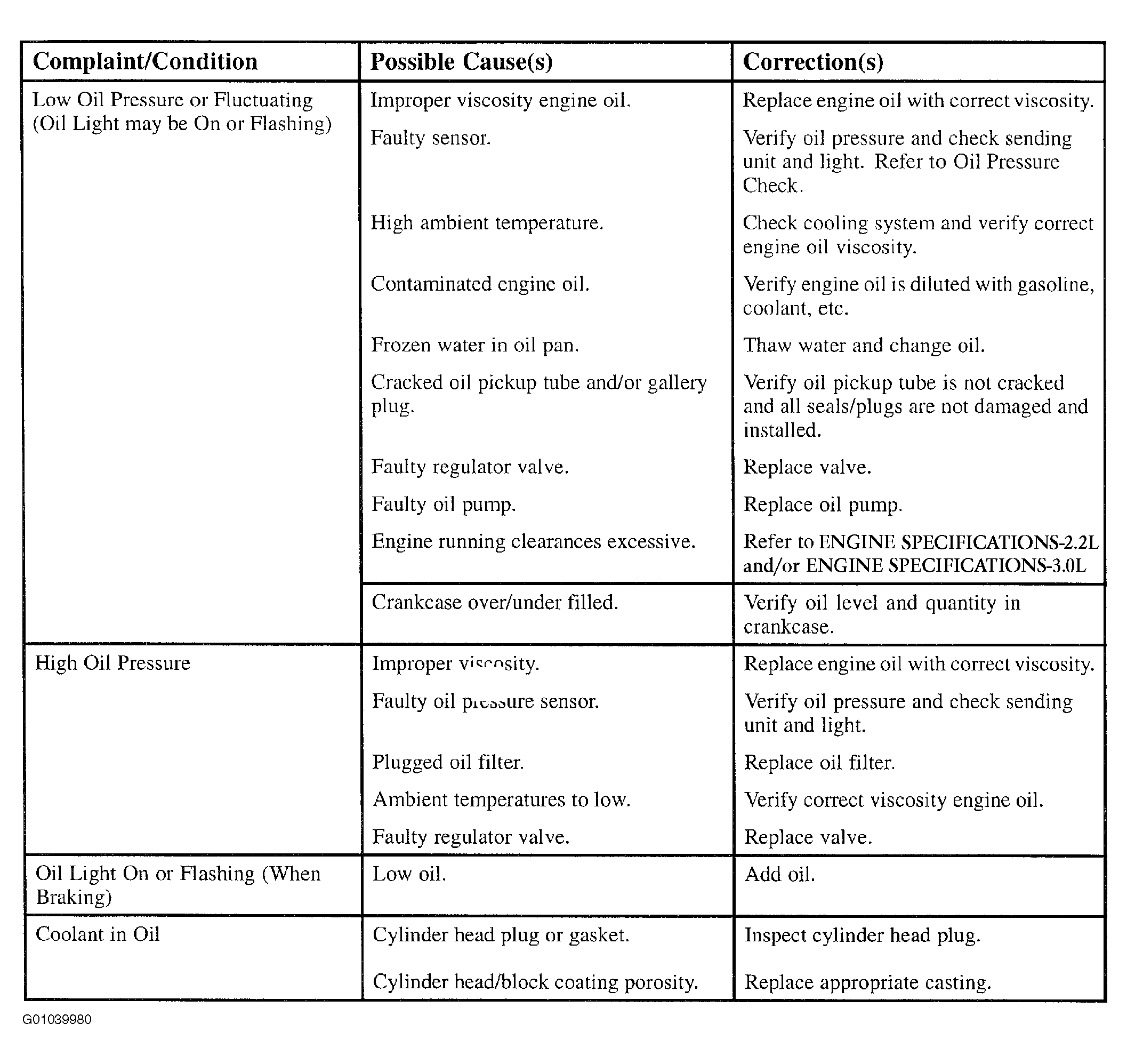

Fig 1: Lubrication System Troubleshooting Chart
G01039980Courtesy of GENERAL MOTORS CORP.
