Power Mirrors
>>
System Check
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
System Check

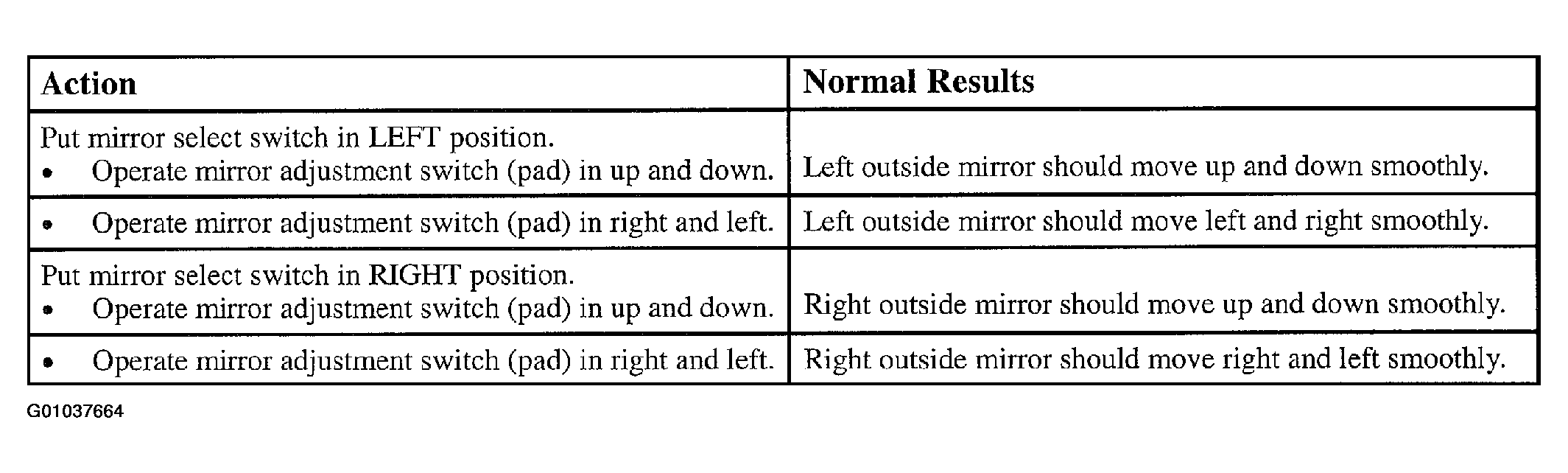

Fig 1: Power Mirrors System Check
Courtesy of GENERAL MOTORS CORP.
