Power Mirror Connector Face Views
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Power Mirror Connector Face Views

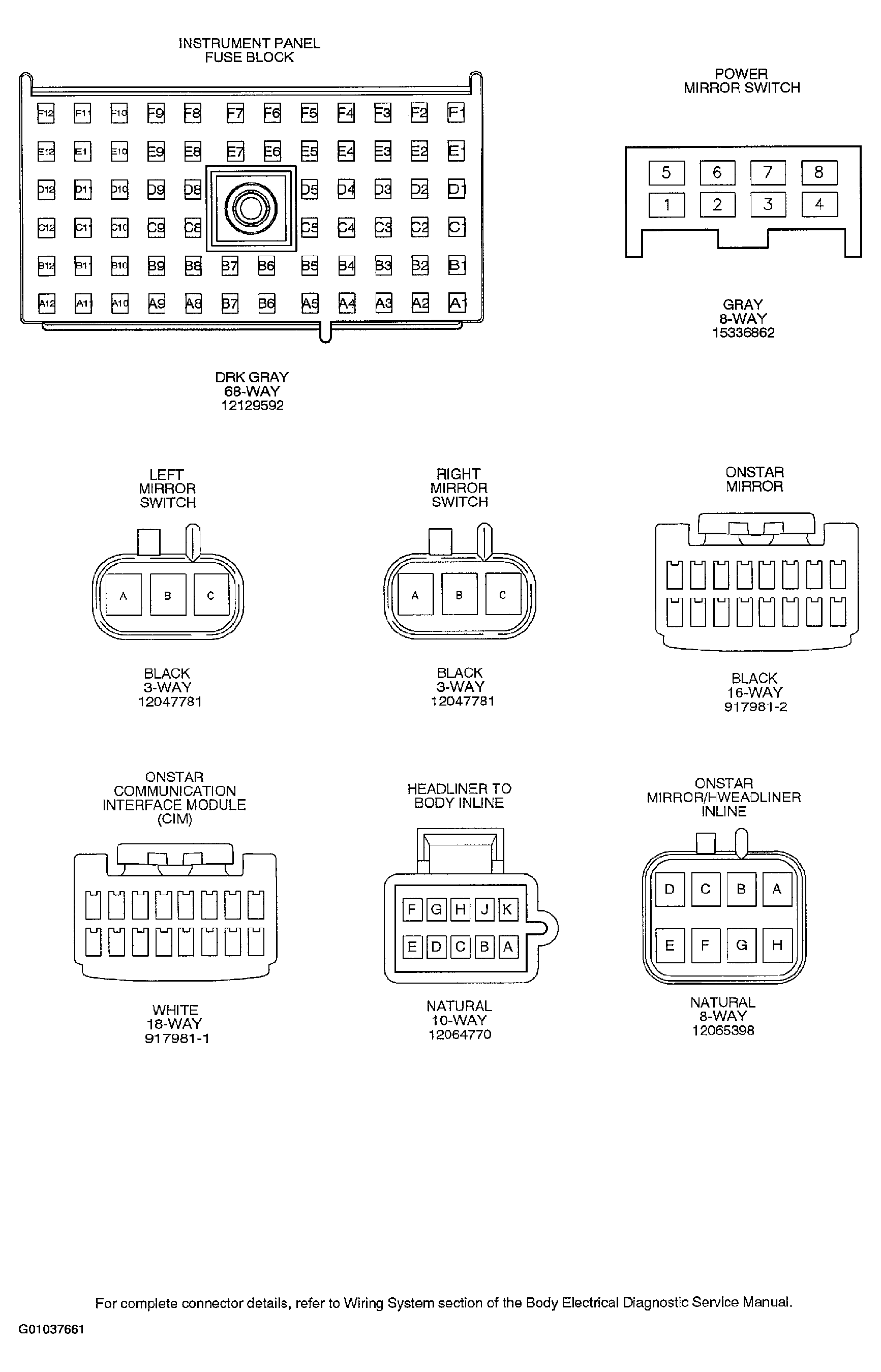

Fig 1: Power Mirror Connector Face Views
Courtesy of GENERAL MOTORS CORP.
