System Diagram

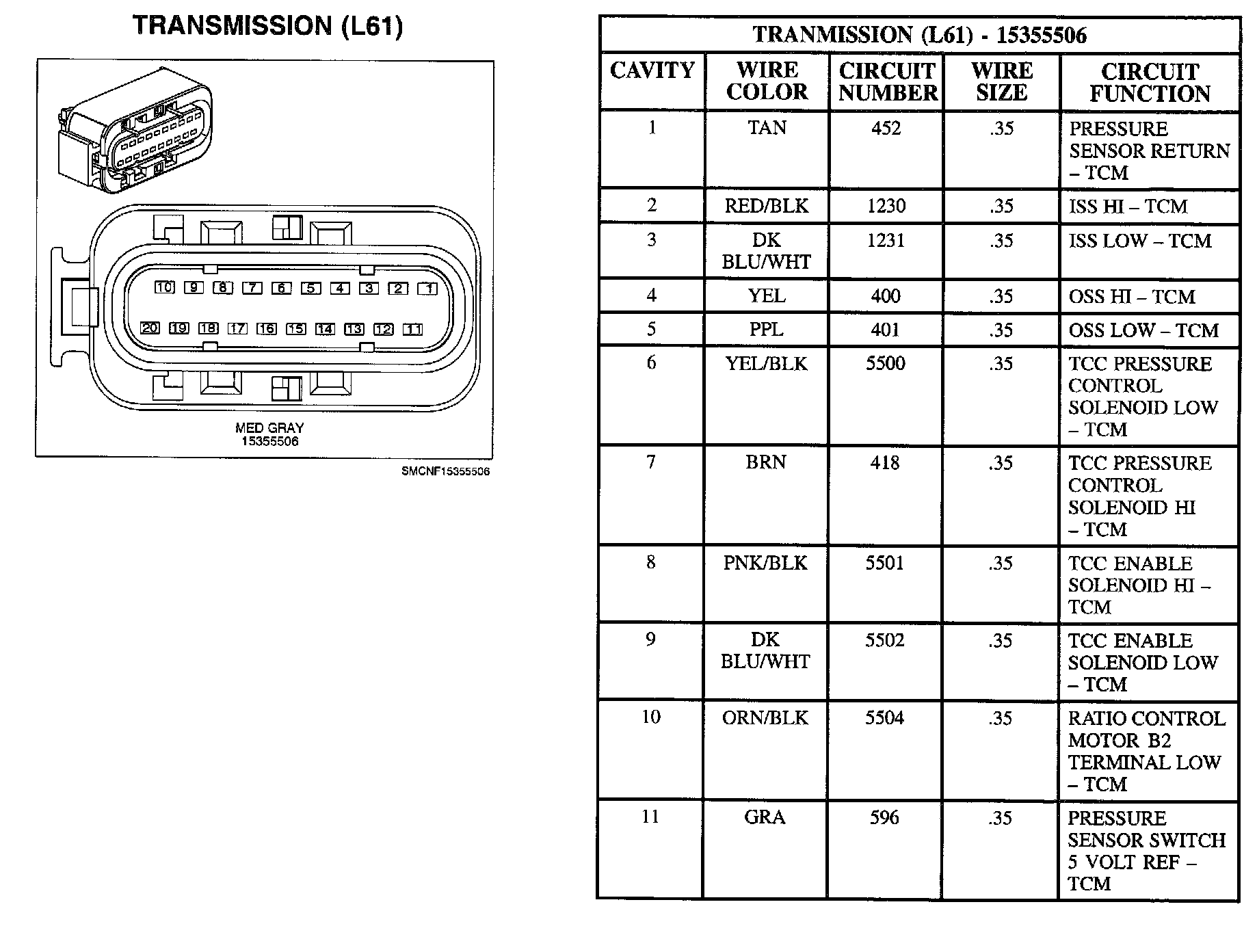

Transmission (L61) Part 1:

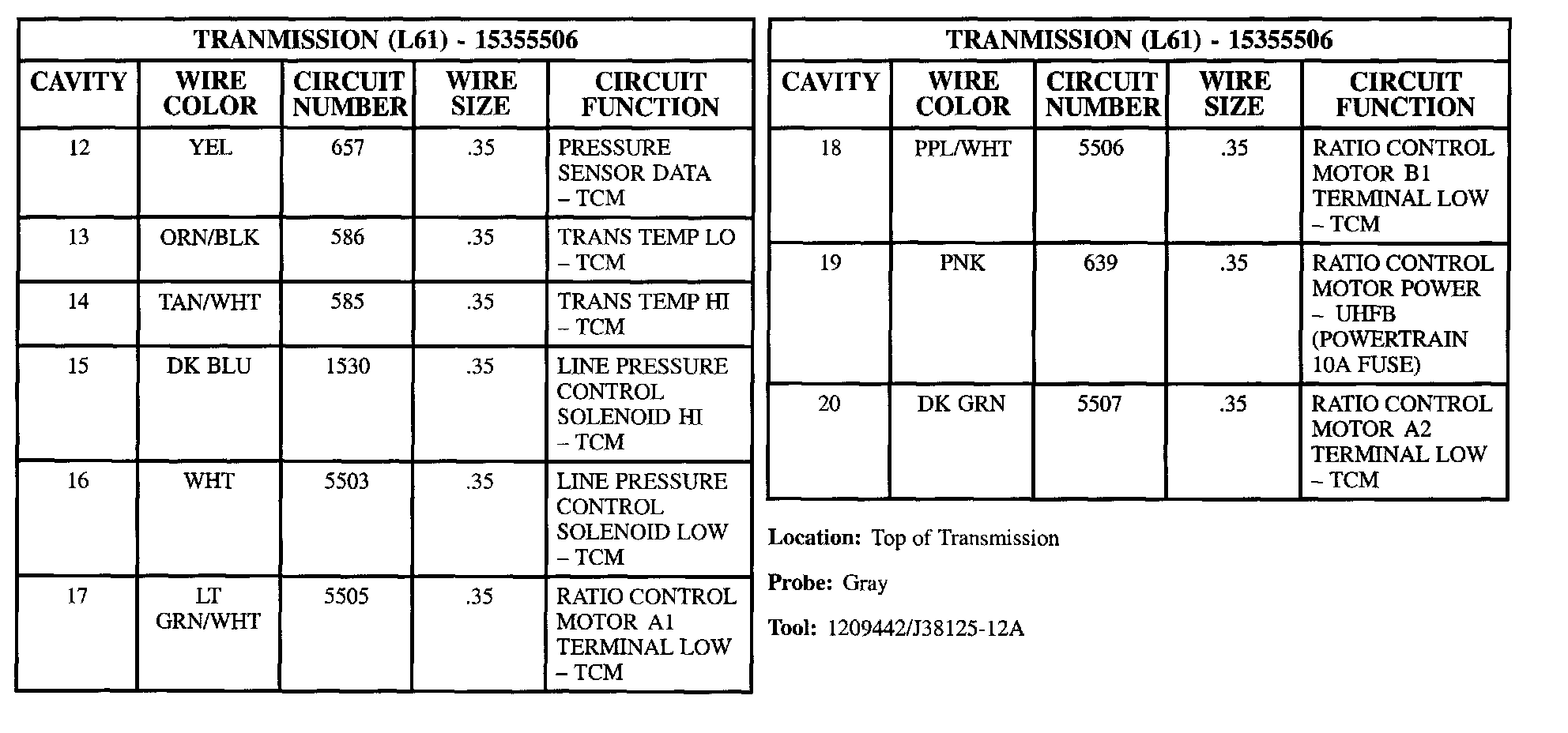

Transmission (L61) - Part 2:

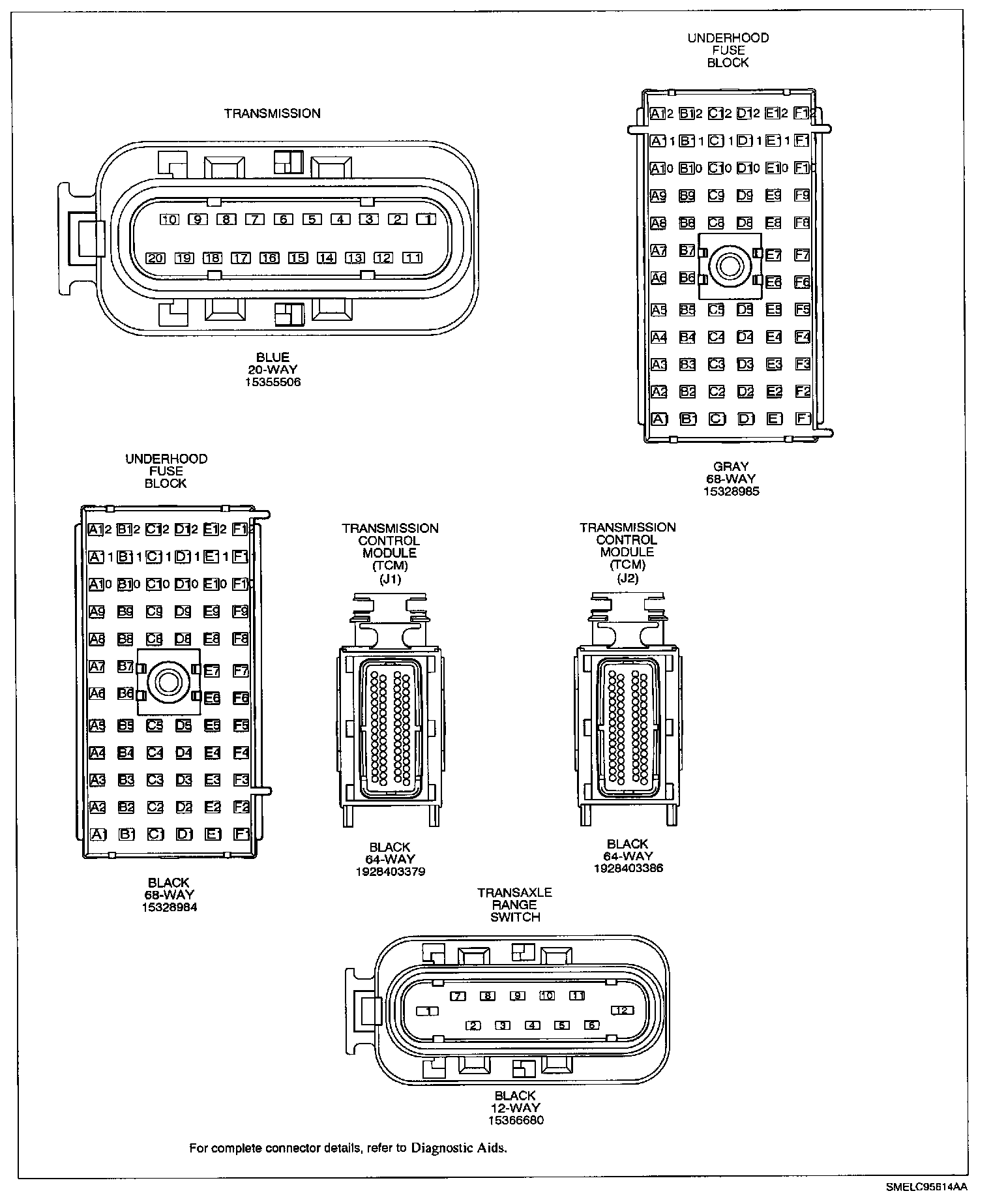

VT25-E Connector Face Views - 4-Cyl:
