I/P Switch Connector End View (Dimmer/Traction/Fog) (LHD)

I/P Switch (Dimmer/Traction/Fog) (LHD)

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12064860 BLK
Pin	Wire Color	Circuit No.	Function
A	BRN	9	IPFB Fog Lamp
B	BRN	641	IPFB - IGN 3
C	PNK	1200	UHFB - Fog Lamp Traction Control Enable
D	PPL/WHT	1572	EBTCM - Traction
E	DK GRN	8	IPFB - LED
F	BLK	350	I/P Switch Ground

I/P Switch (Dimmer/Traction/Fog) (LHD)

Courtesy of GENERAL MOTORS CORP.

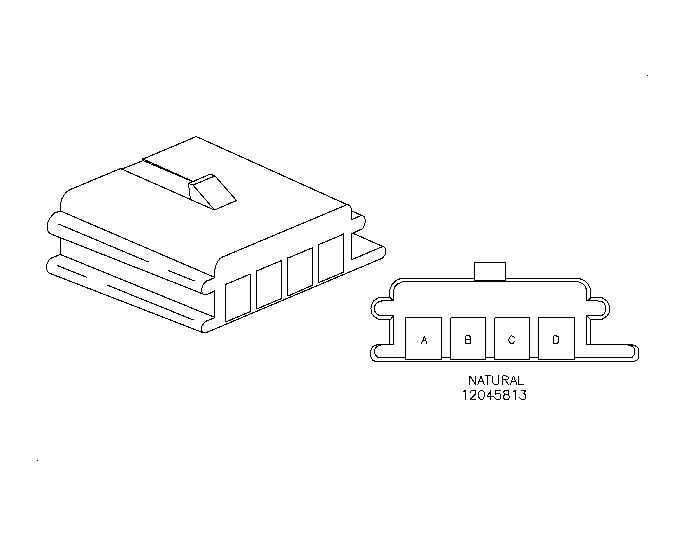

Connector Part Information		12045813 Natural
Pin	Wire Color	Circuit No.	Function
A	YEL	317	UHFB - Fog Lamp Relay
B	-	-	Not Used
C	BRN/WHT	230	BCM - Dimmer Output
D	PPL	719	BCM - Dimmer Return
