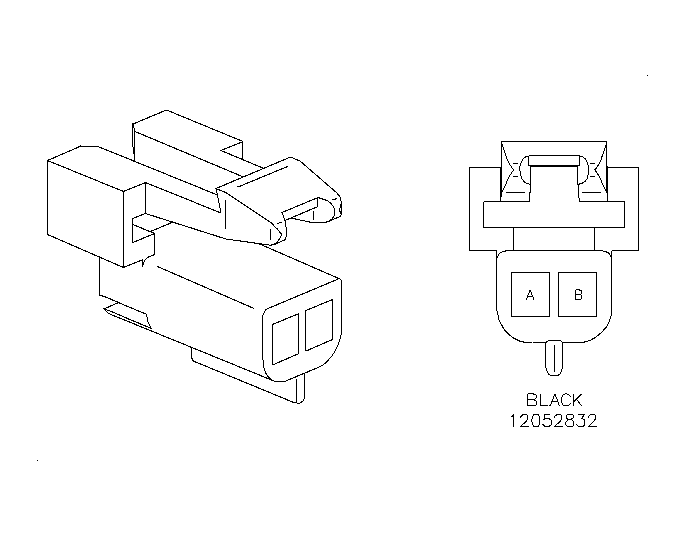

Speakers Connector End View - Front Left
Speakers - Front Left
 Courtesy of GENERAL MOTORS CORP.
|
| Connector Part Information |
|
| Pin |
Wire Color |
Circuit Number |
Function |
| A |
GRY |
118 |
Speaker (-) |
| B |
TAN |
201 |
Speaker (+) |
