Underhood Fuse Block - Engine

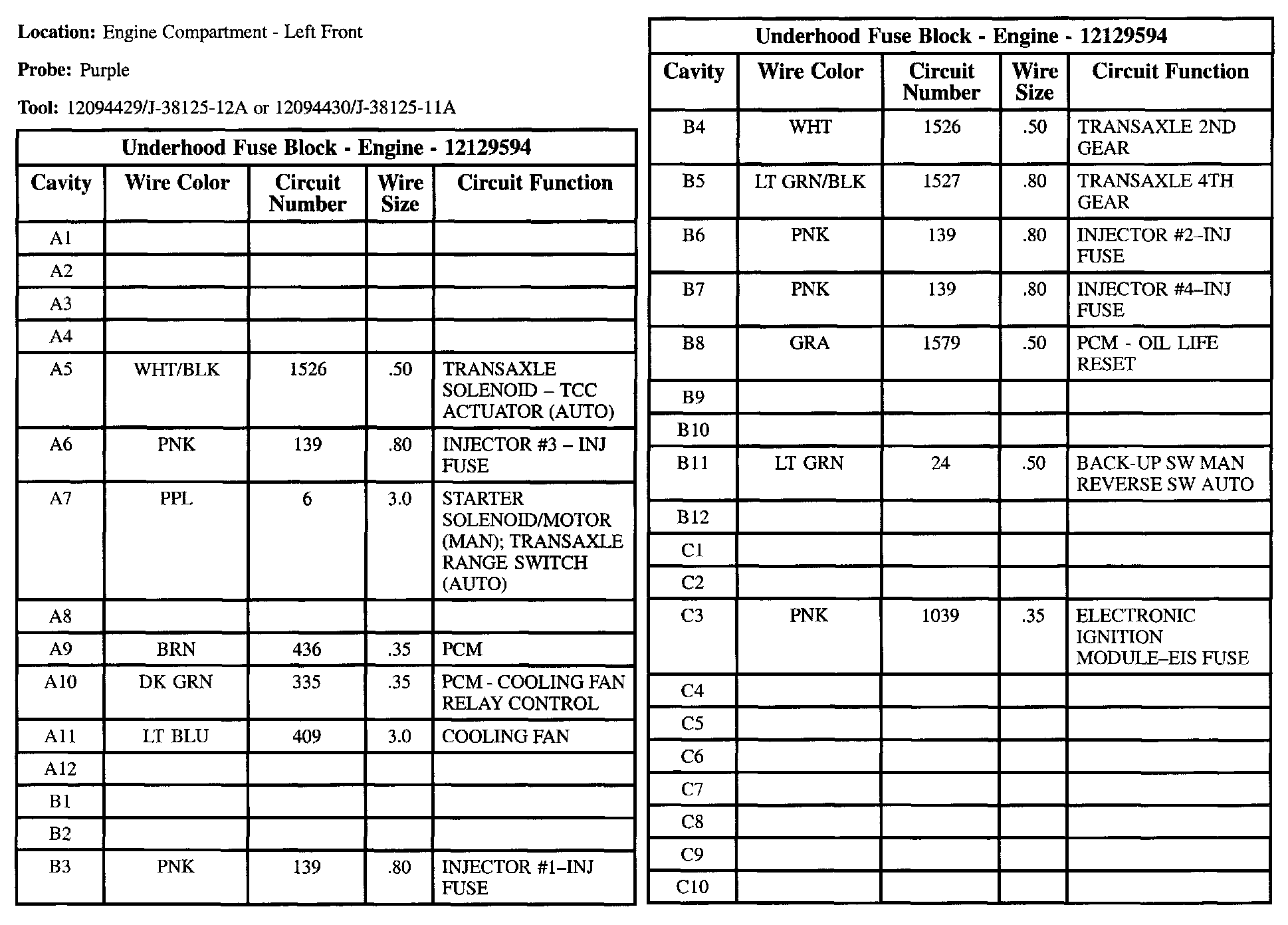

Underhood Fuse Block - Engine (Part 1 Of 3):

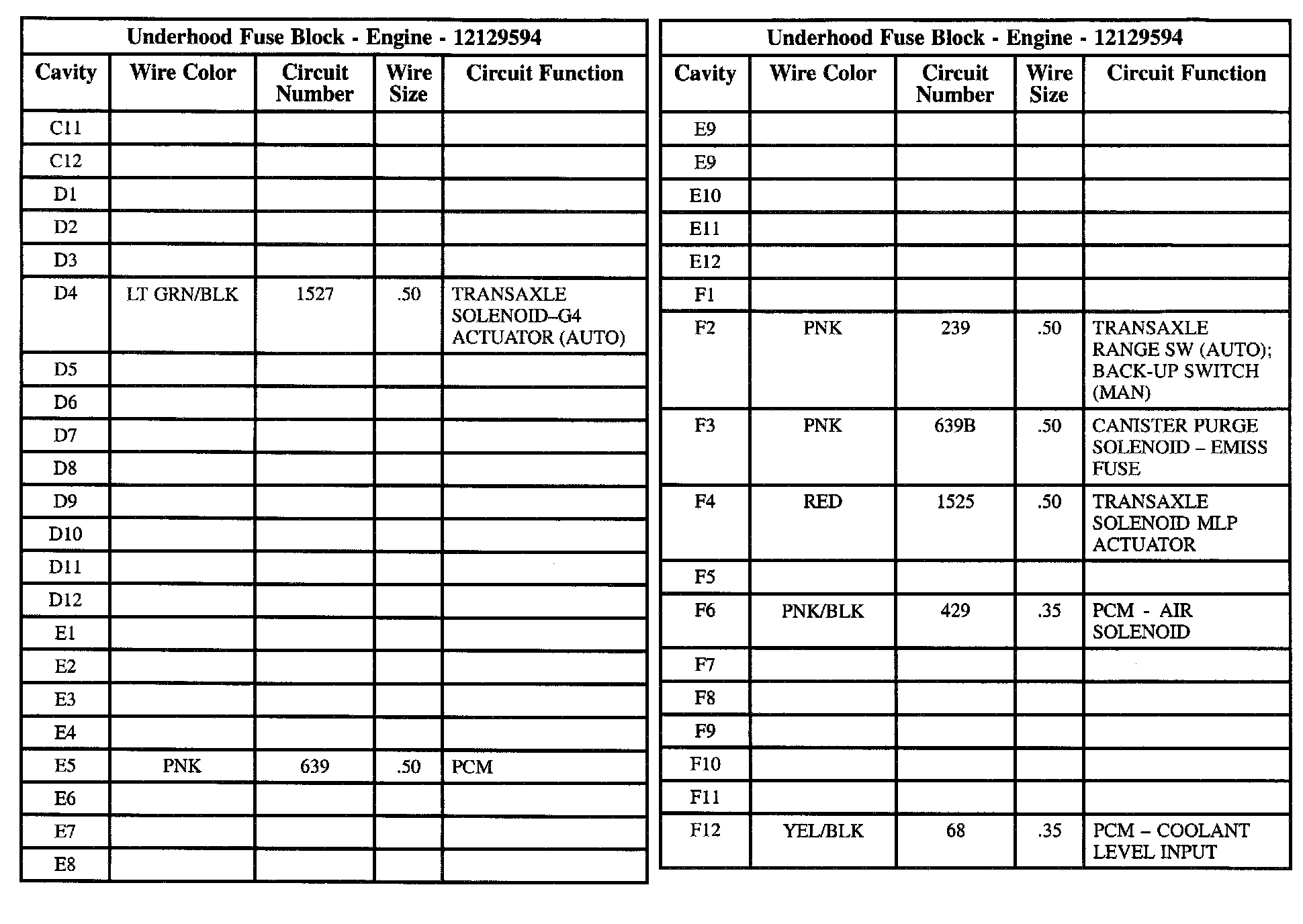

Underhood Fuse Block - Engine (Part 2 Of 3):

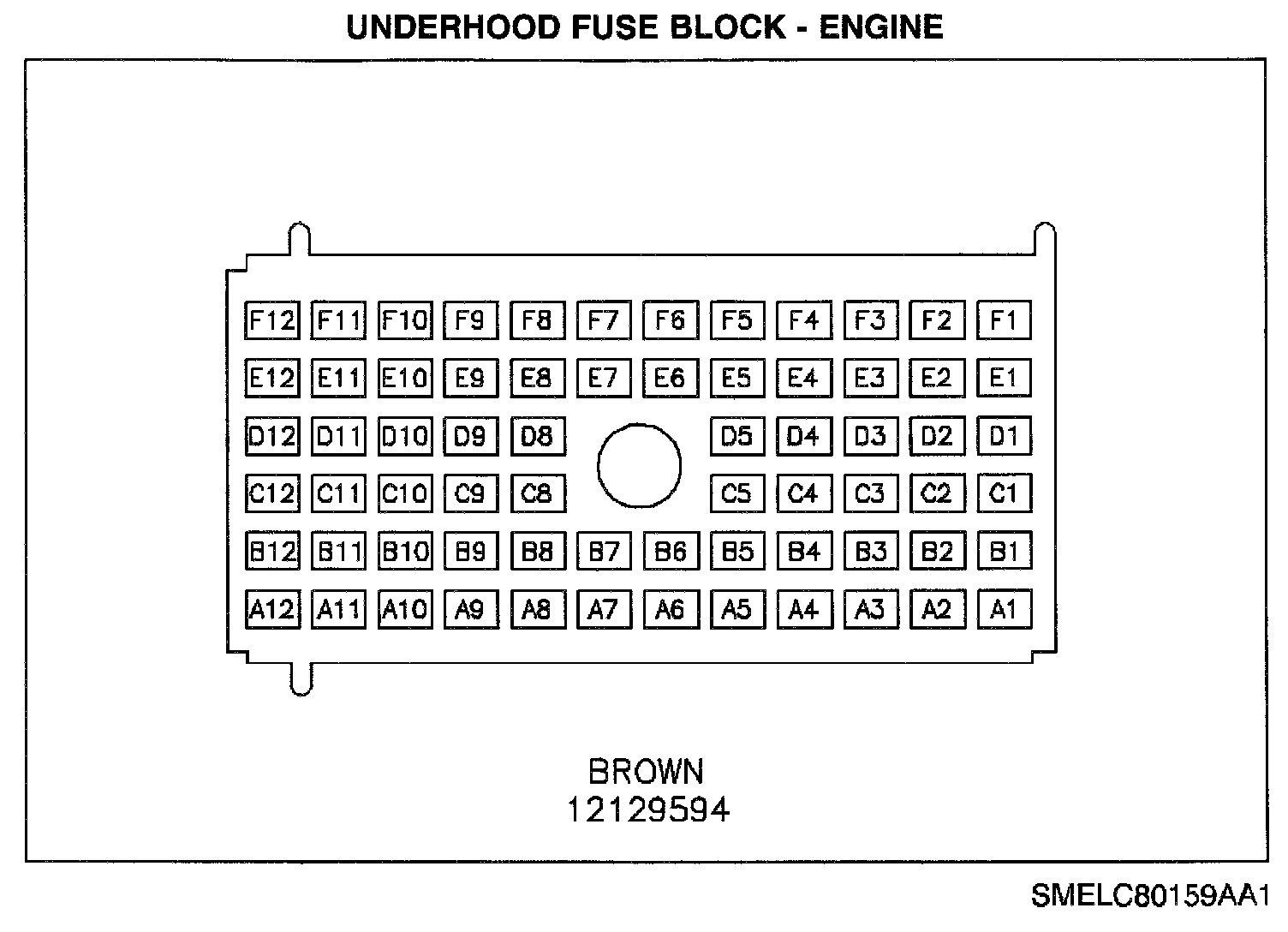

Underhood Fuse Block - Engine (Part 3 Of 3):
