Instrument Panel Fuse Block

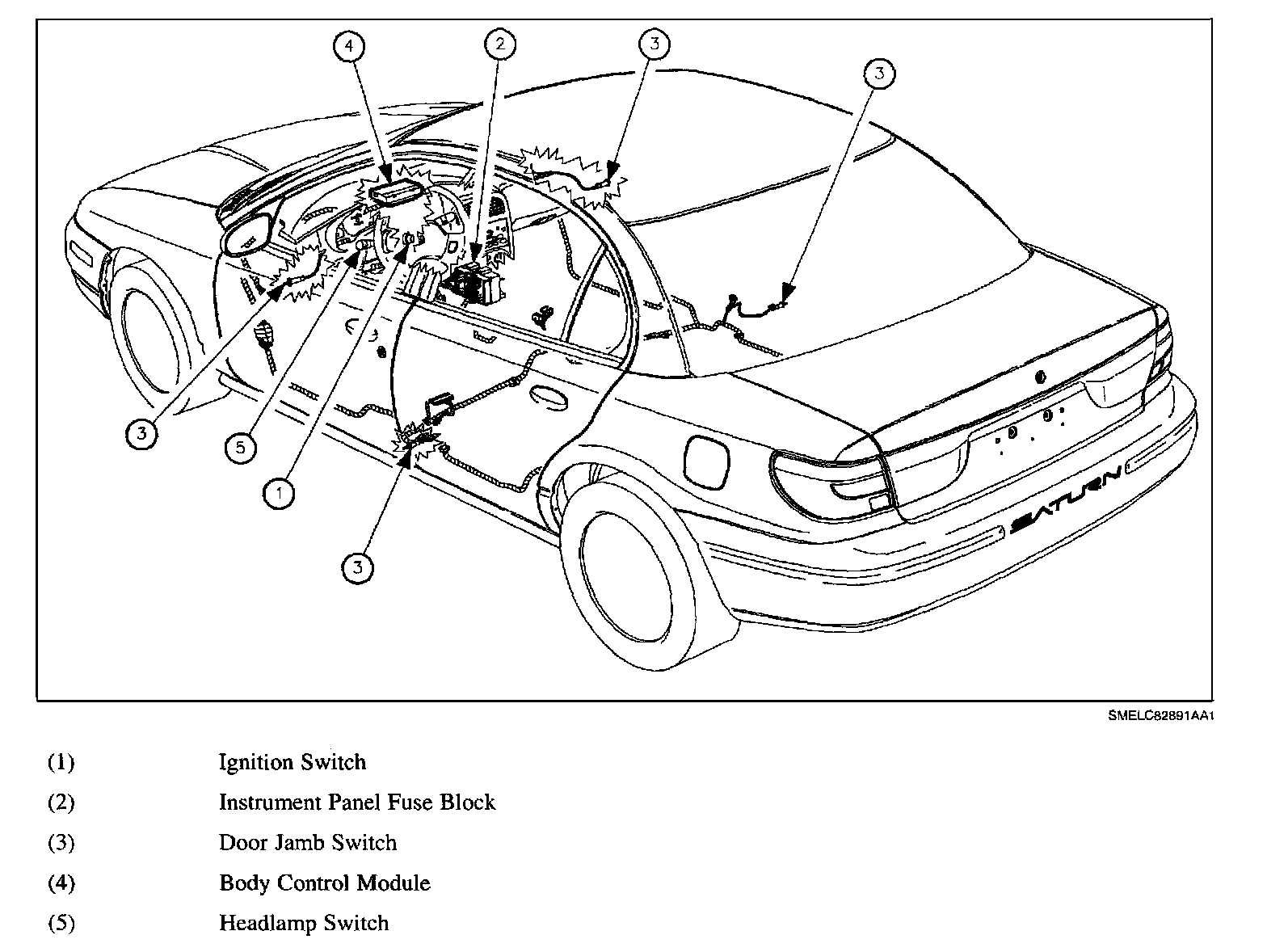

Locations View:

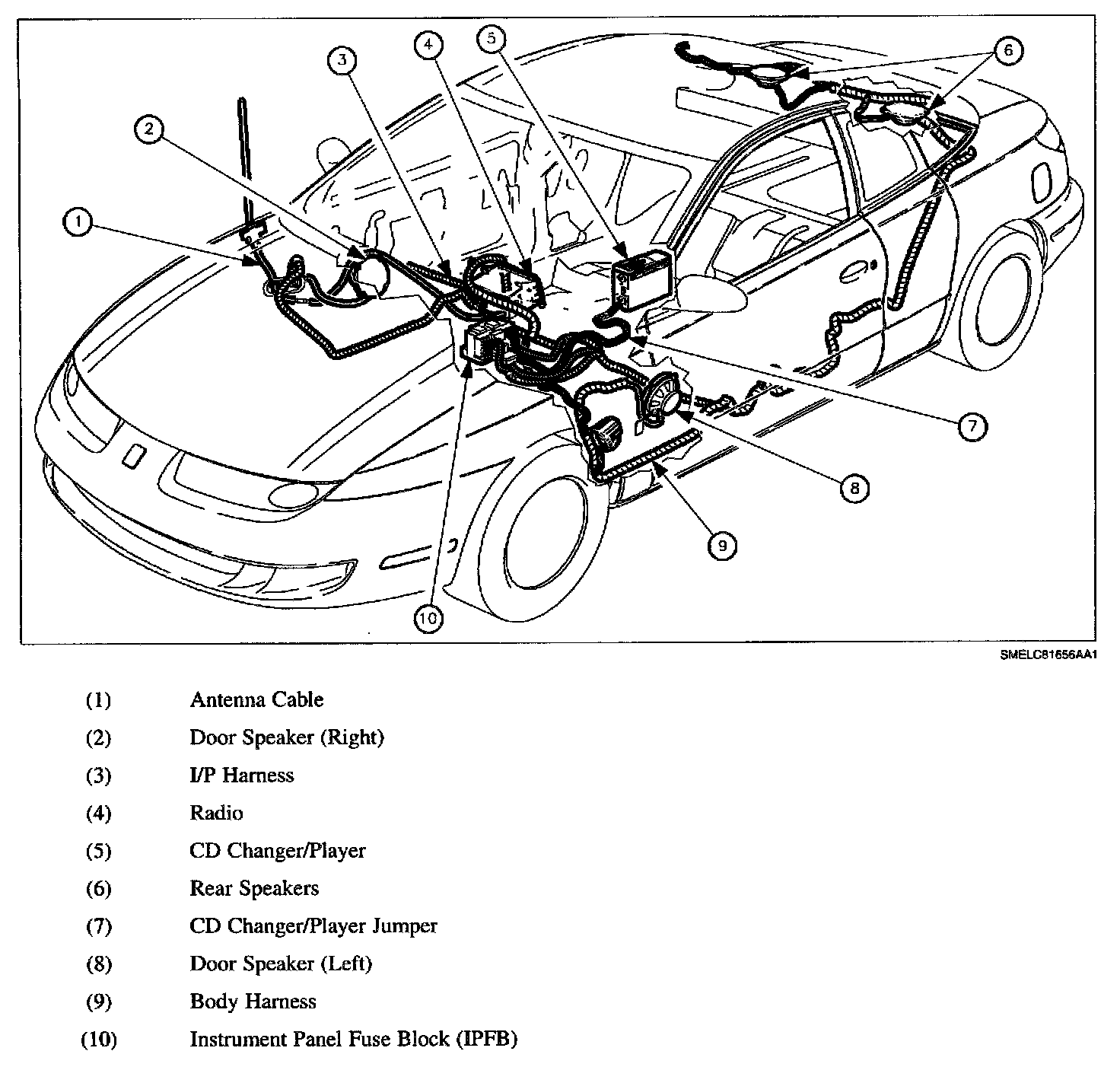

Locations View:

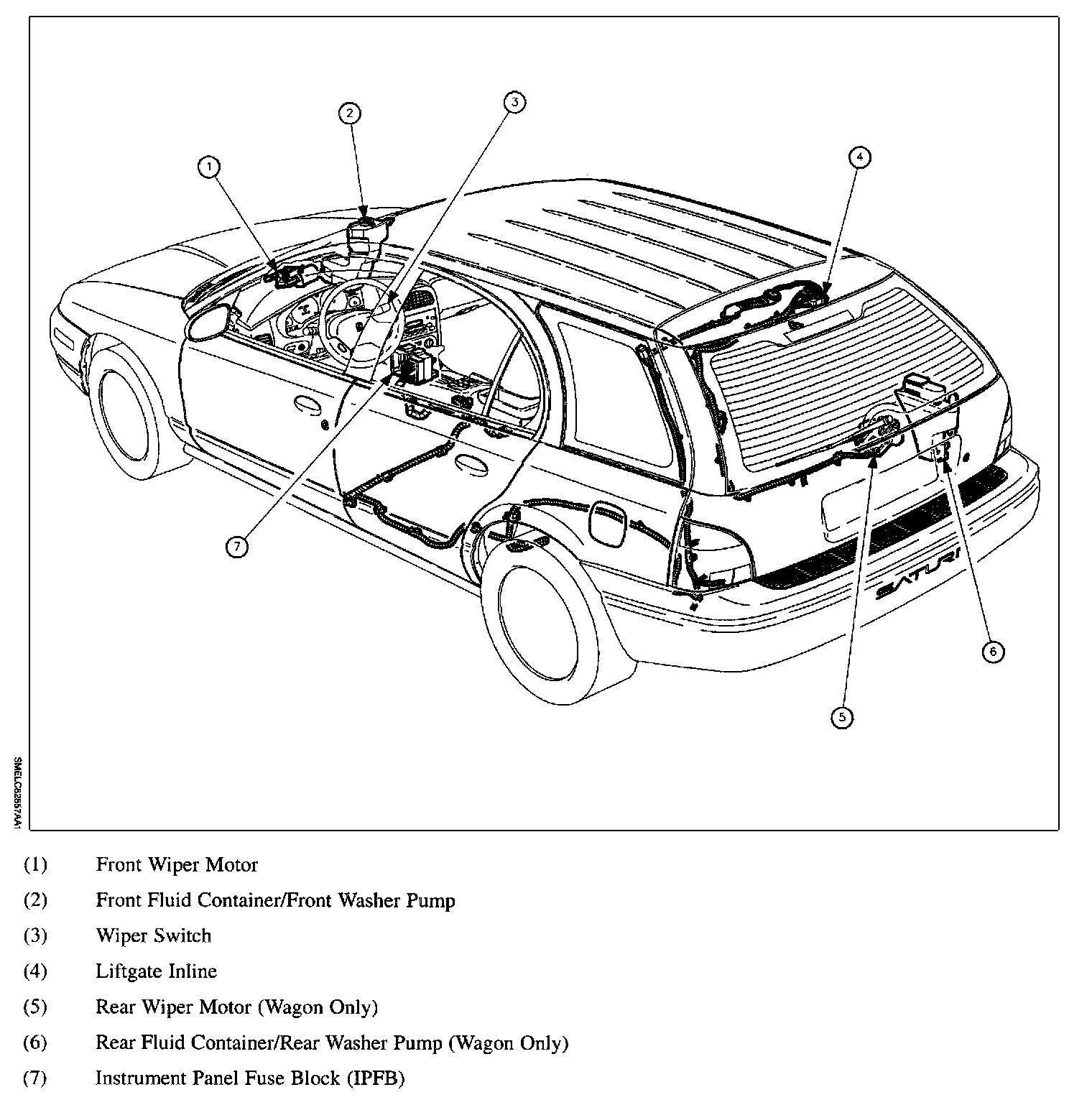

Locations View:

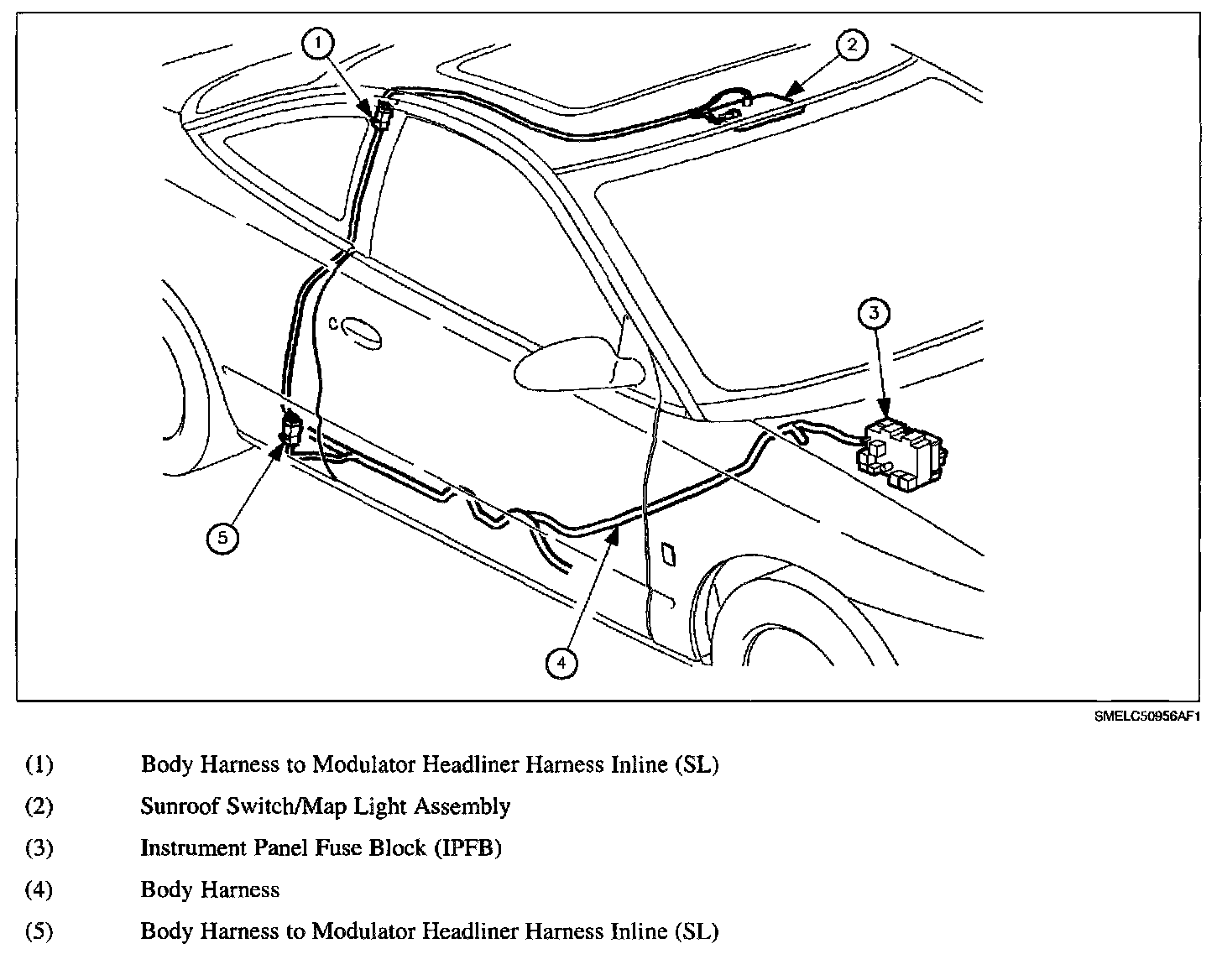

Locations View:

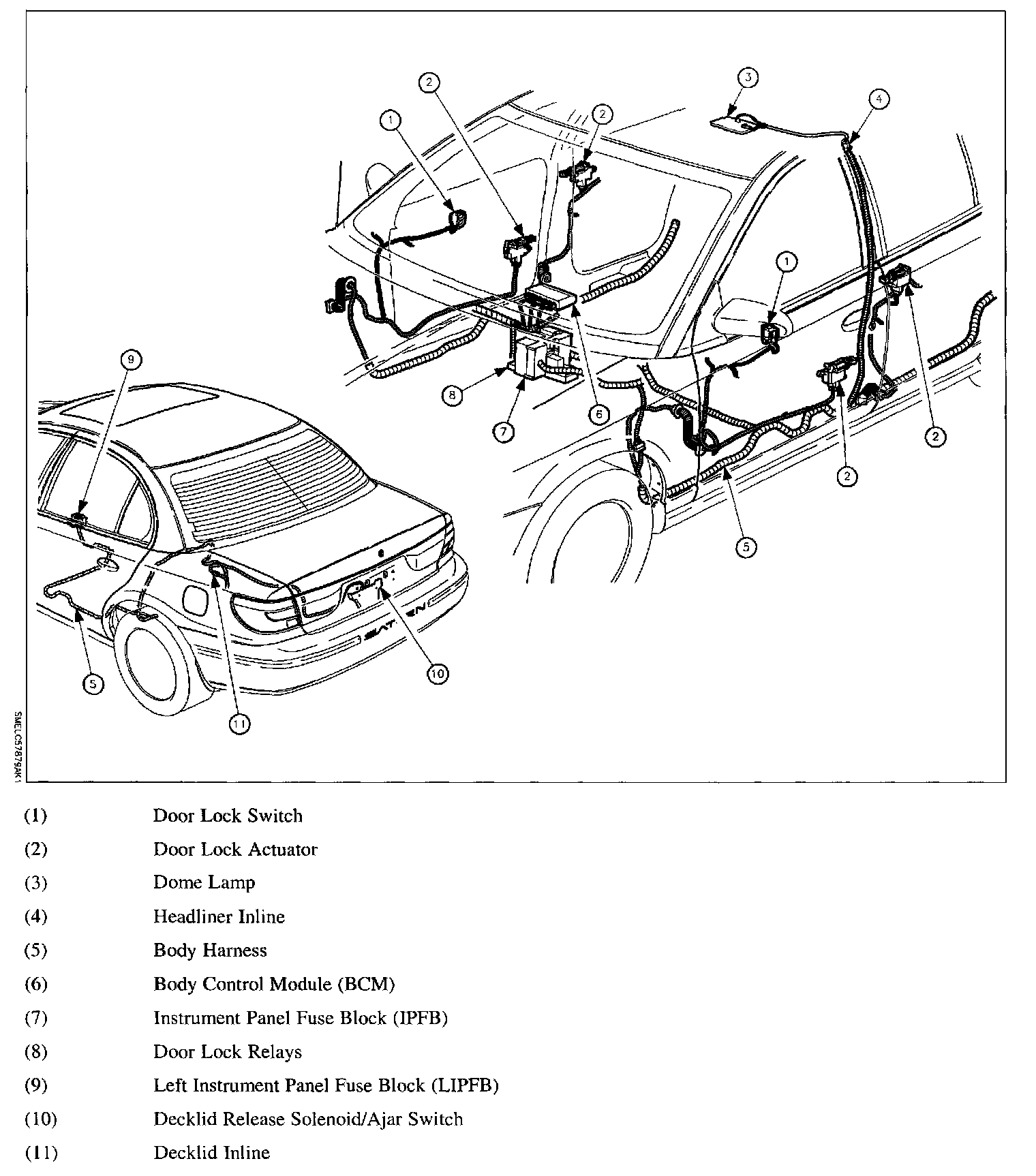

Locations View:

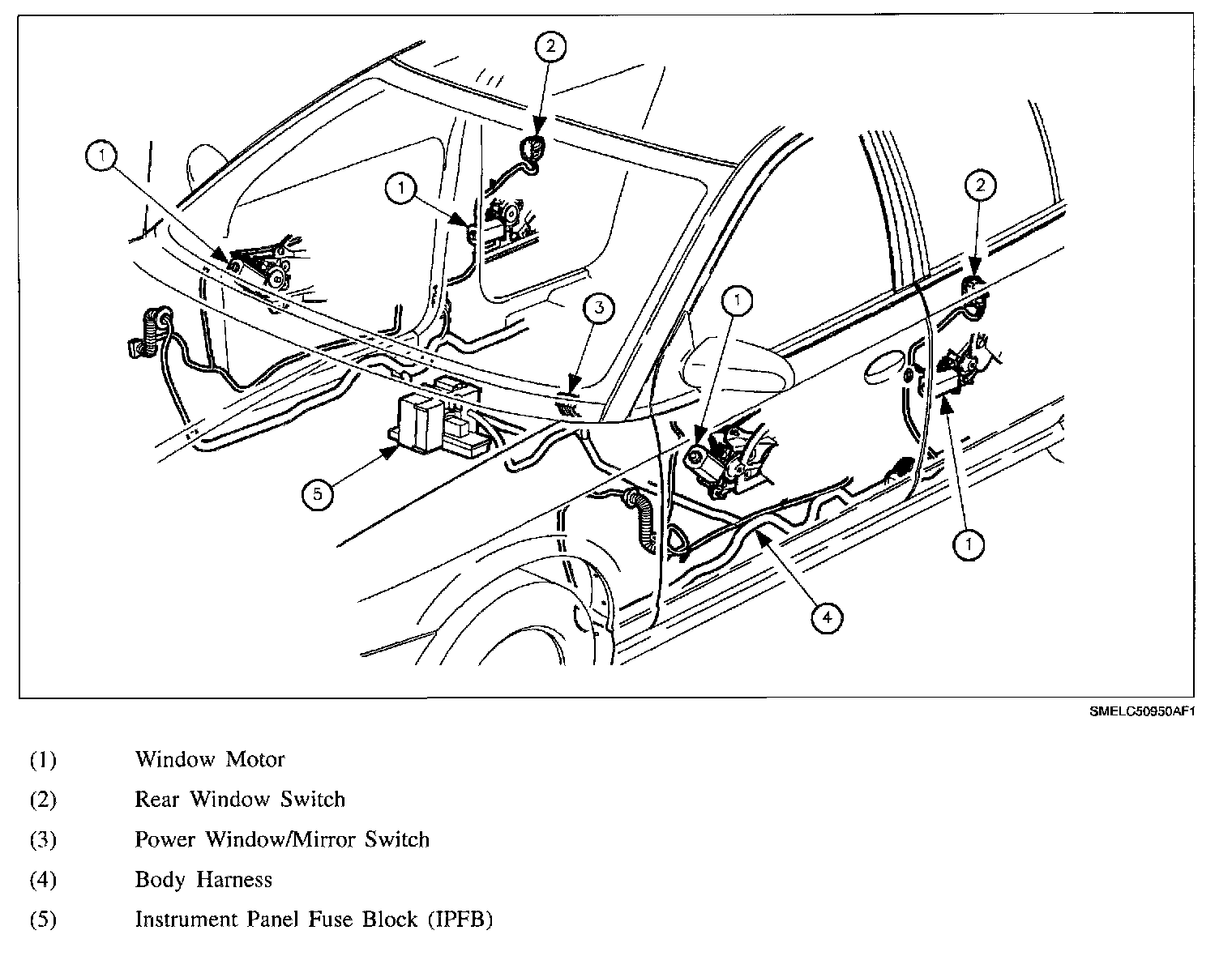

Locations View:

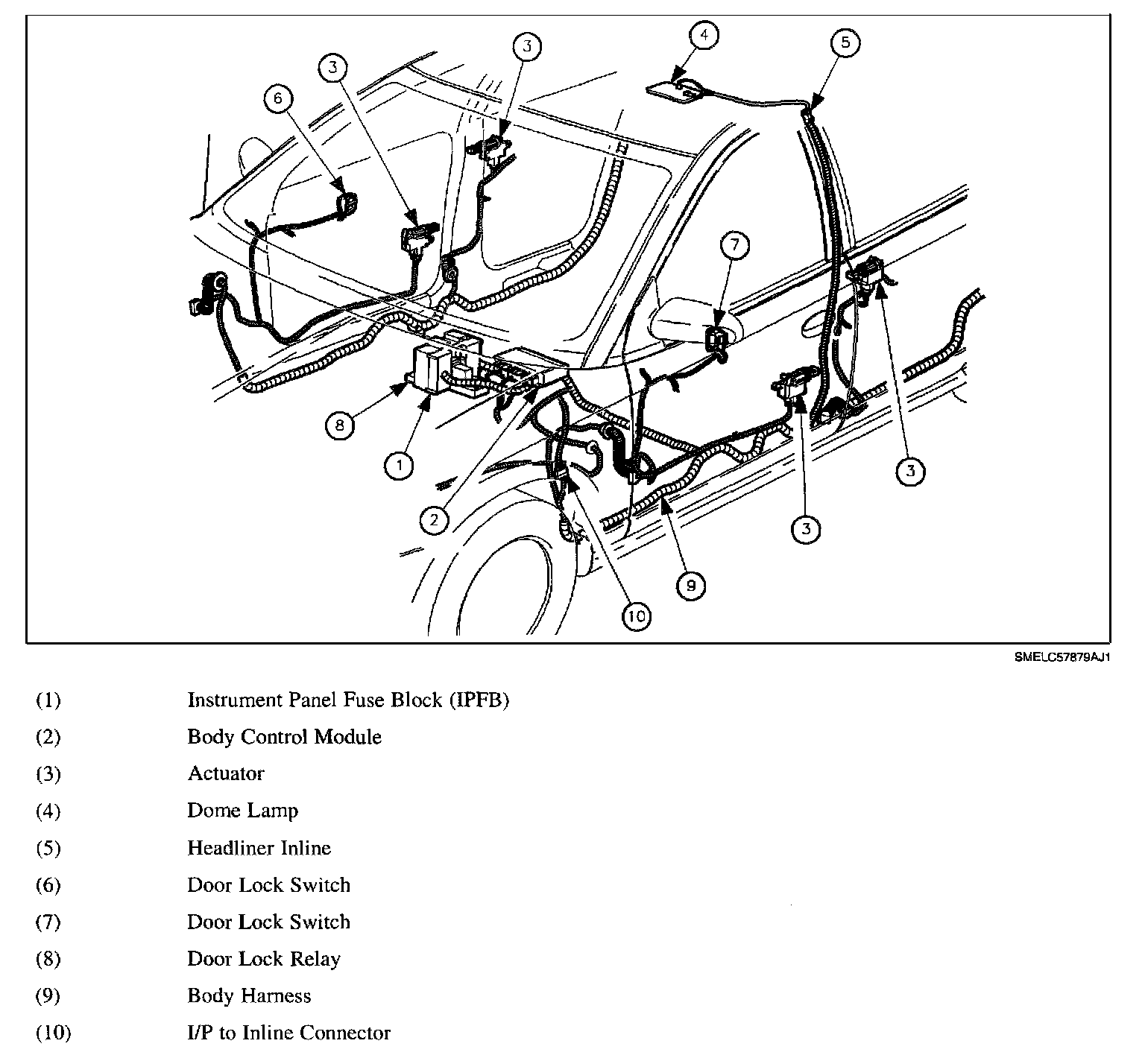

Locations View:




Locations View:




Locations View:




Locations View:
