Back-Up Light Switch: Removal

Remove air cleaner housing and duct assembly. See AIR CLEANER & DUCT ASSEMBLY  . Disconnect back-up light switch harness connector. Remove switch. See Fig 1 .

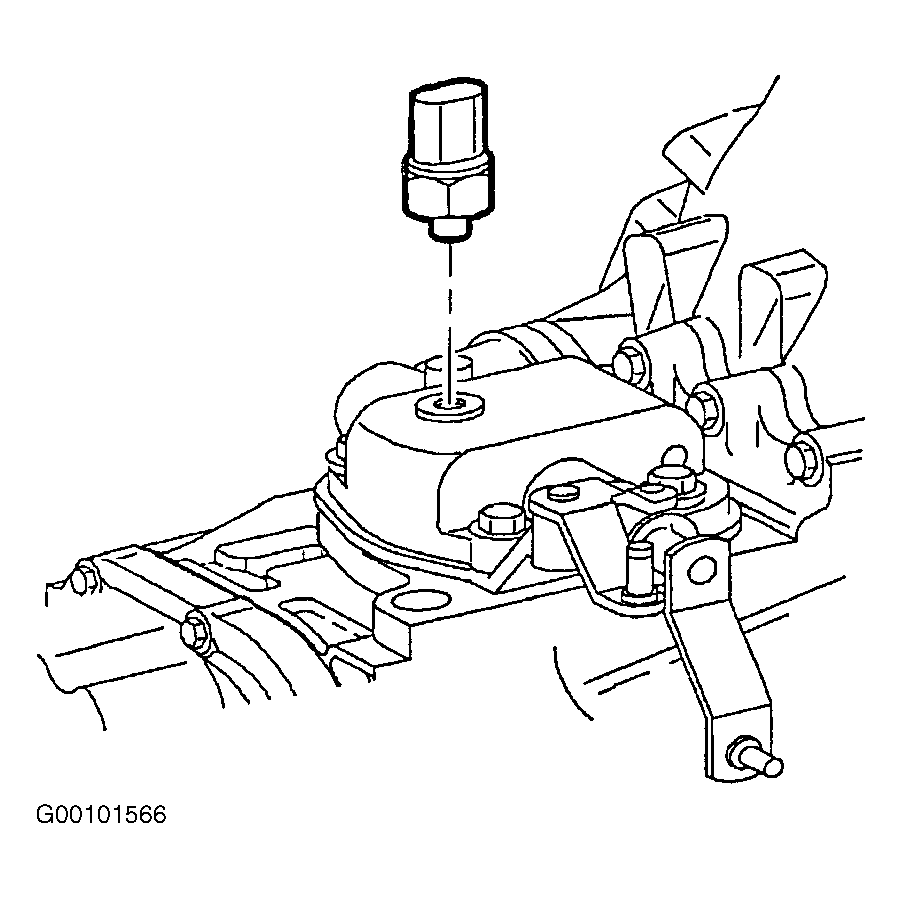

Fig 1: Removing & Installing Back-Up Light Switch
G00101566Courtesy of GENERAL MOTORS CORP.
