Shifter Controls

AUTOMATIC TRANSAXLE SERVICE MANUAL (SHIFTER)

DIAGNOSTICS

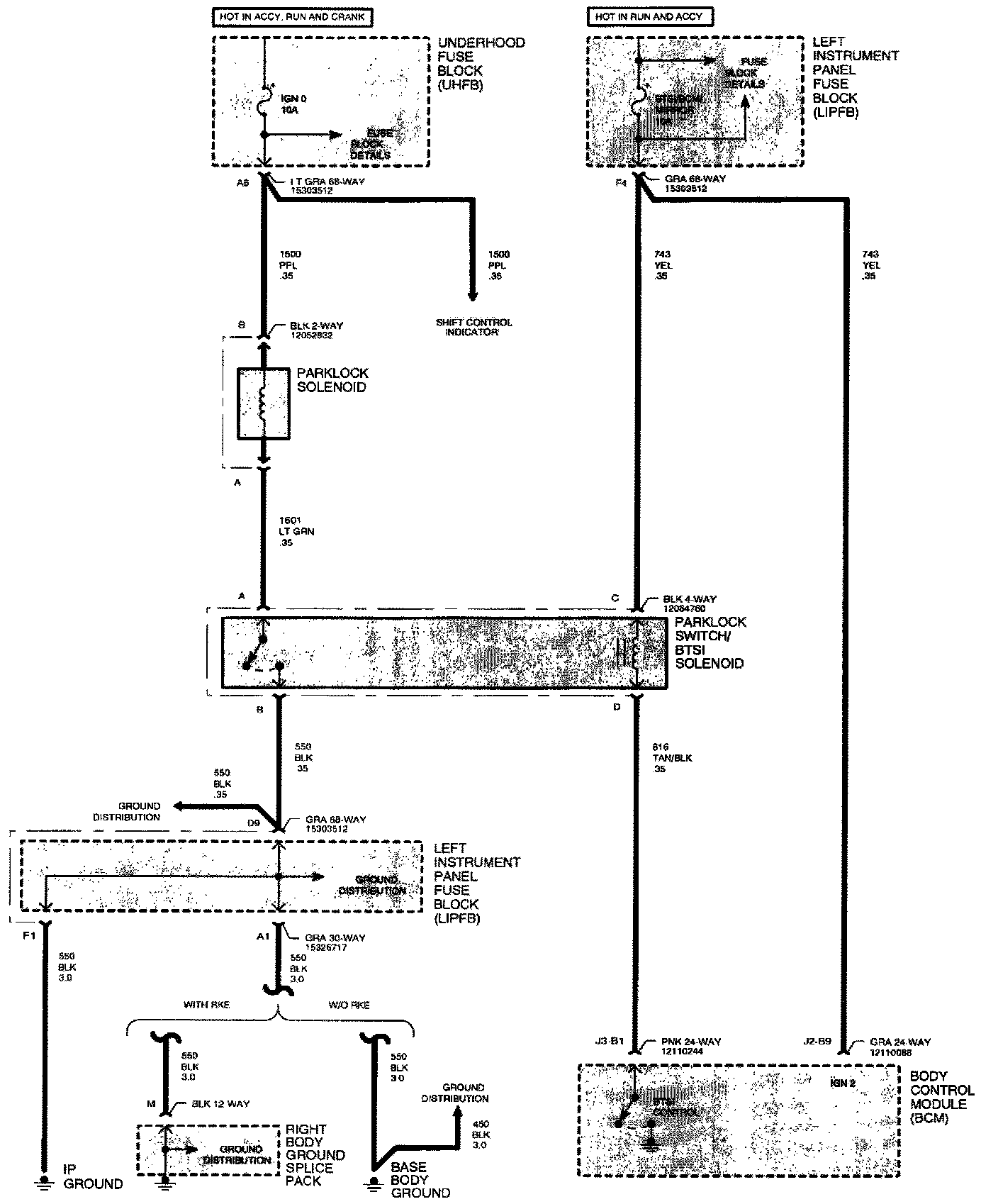

BRAKE TRANSAXLE SHIFT INTERLOCK (BTSI)/PARK LOCK SYSTEM SCHEMATIC

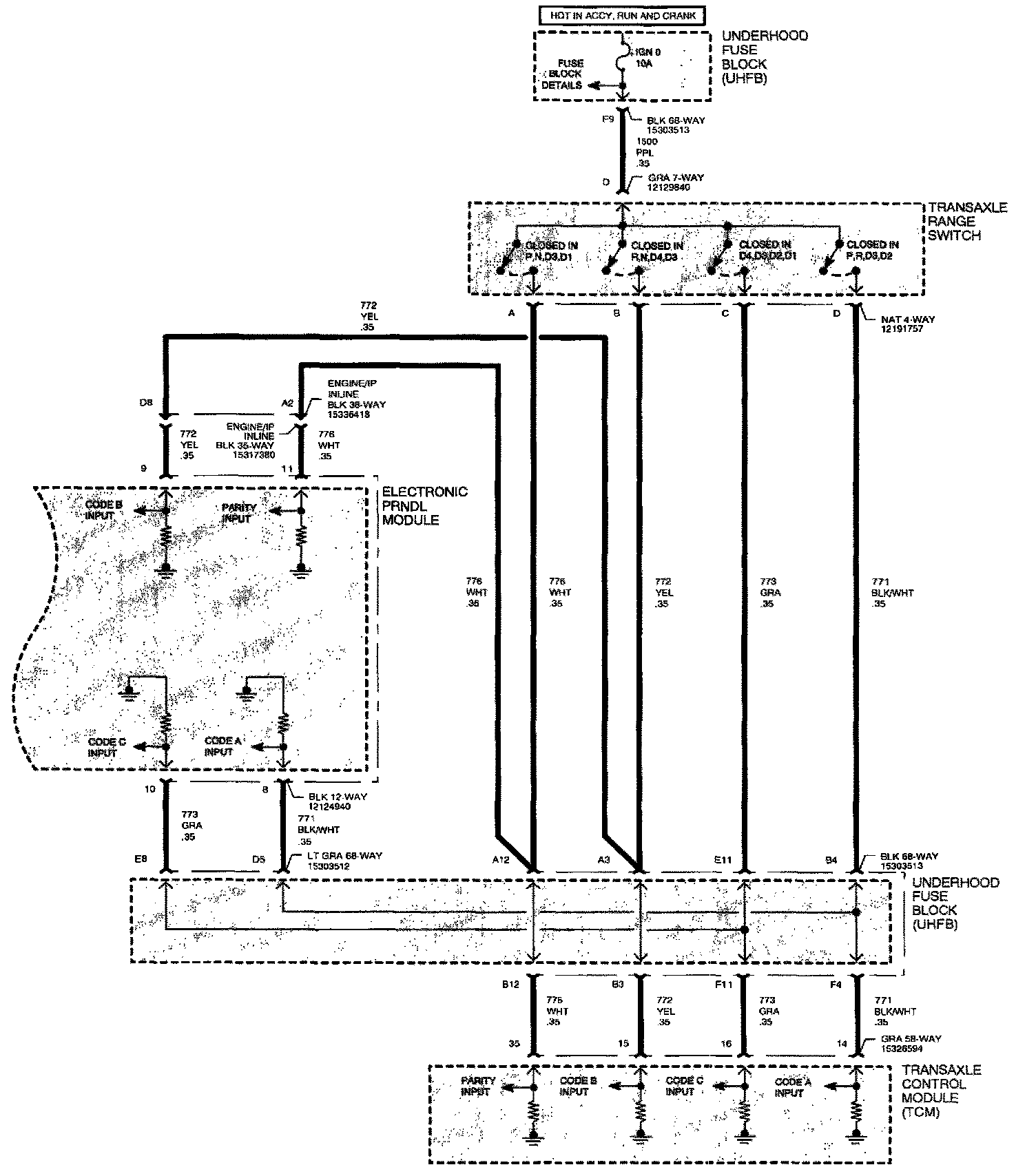

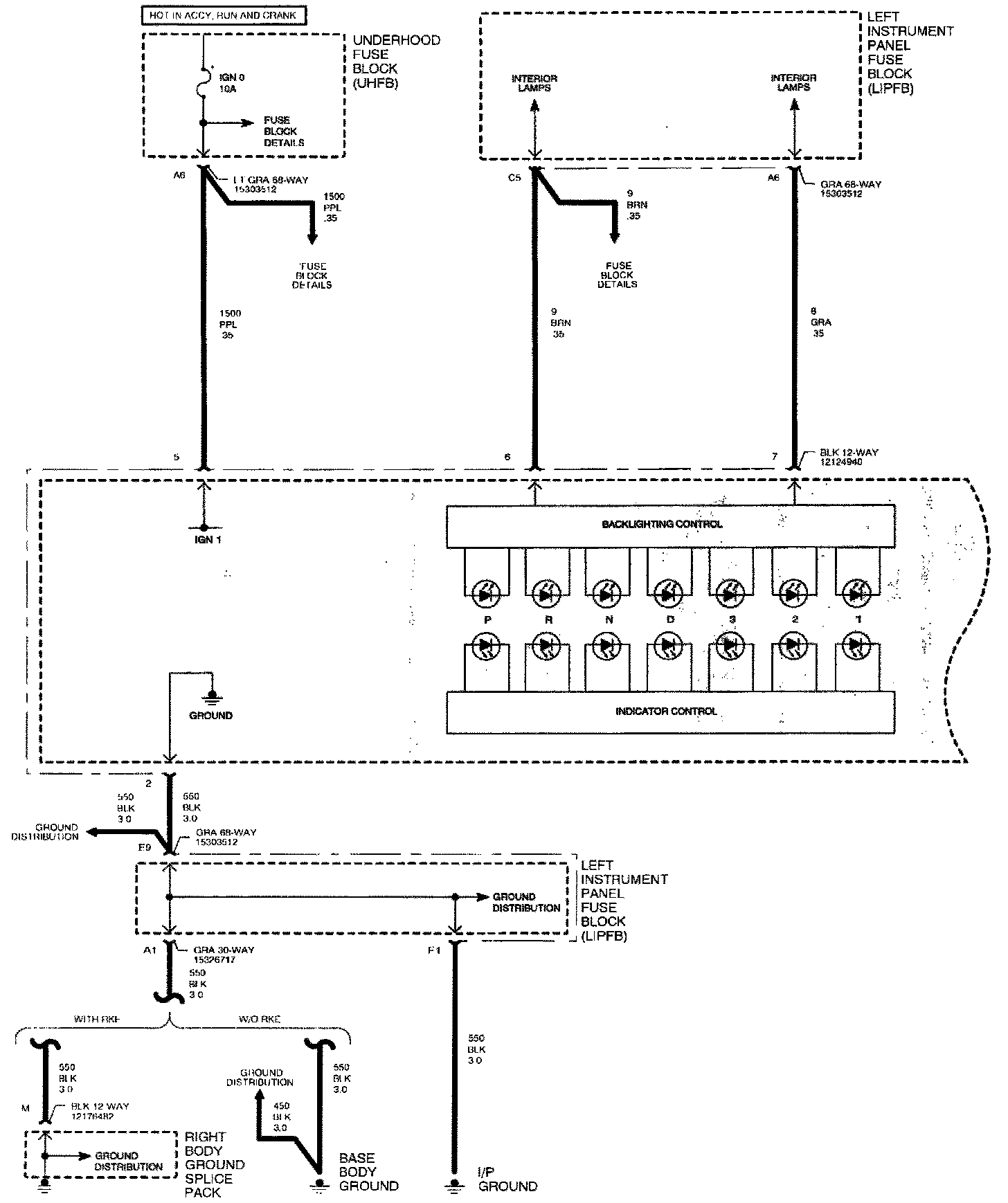

SHIFT CONTROL INDICATOR - COMMON

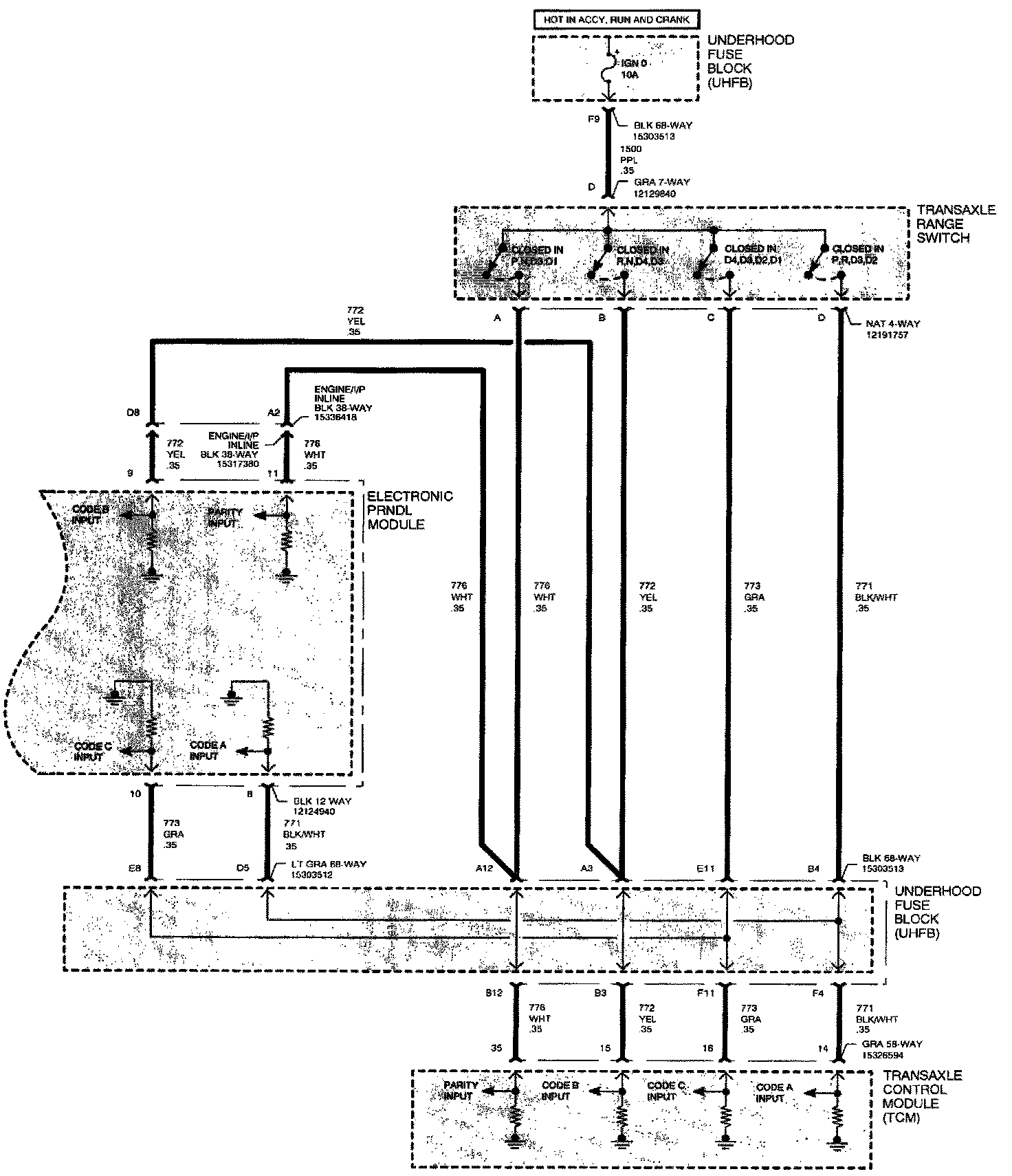

SHIFT CONTROL INDICATOR - L81 ENGINE
