Cruise Control Schematics

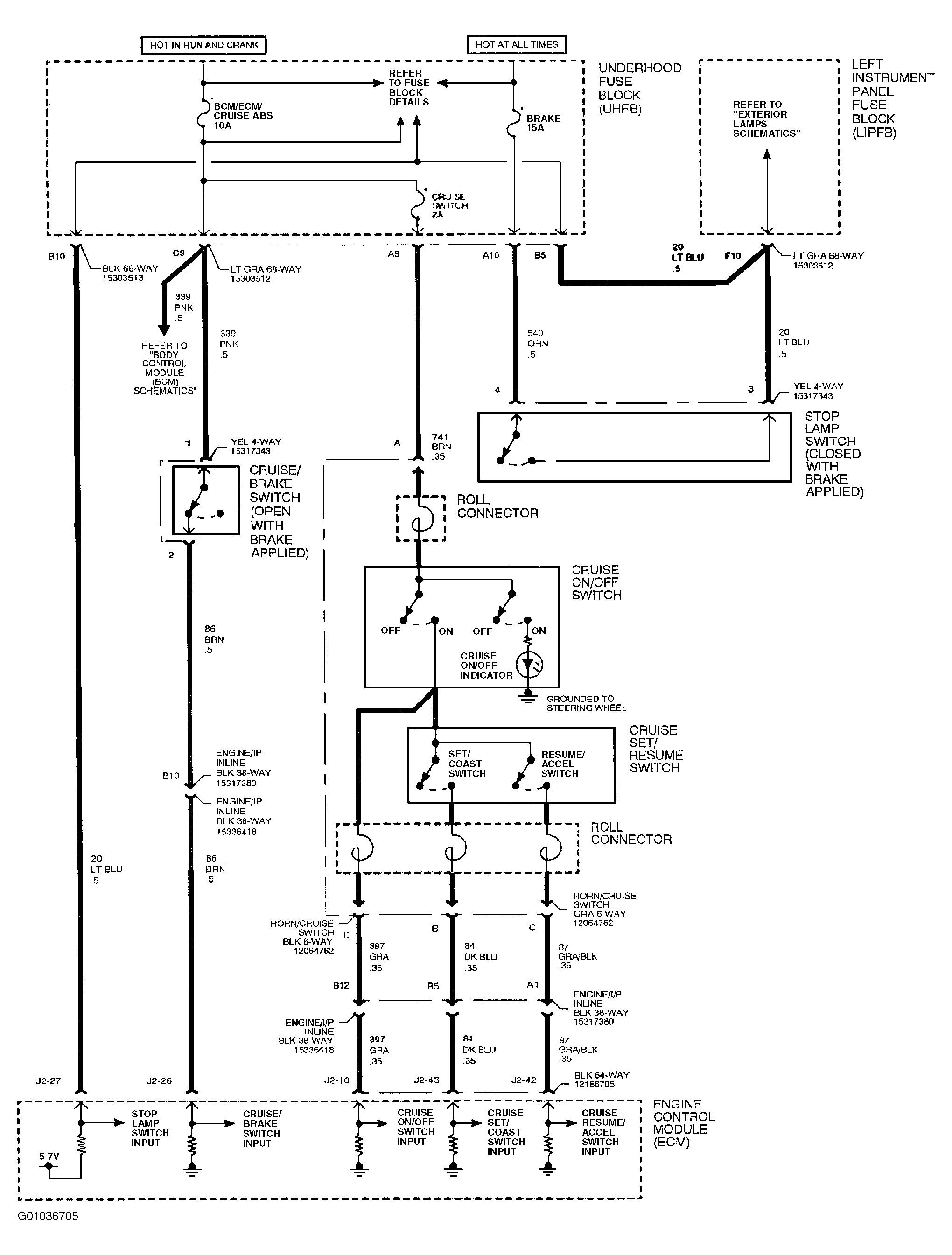

Fig 1: Cruise Control Diagnosis Schematic

G01036705

Courtesy of GENERAL MOTORS CORP.
