RKE/Security System Connector End View (1 Of 2)

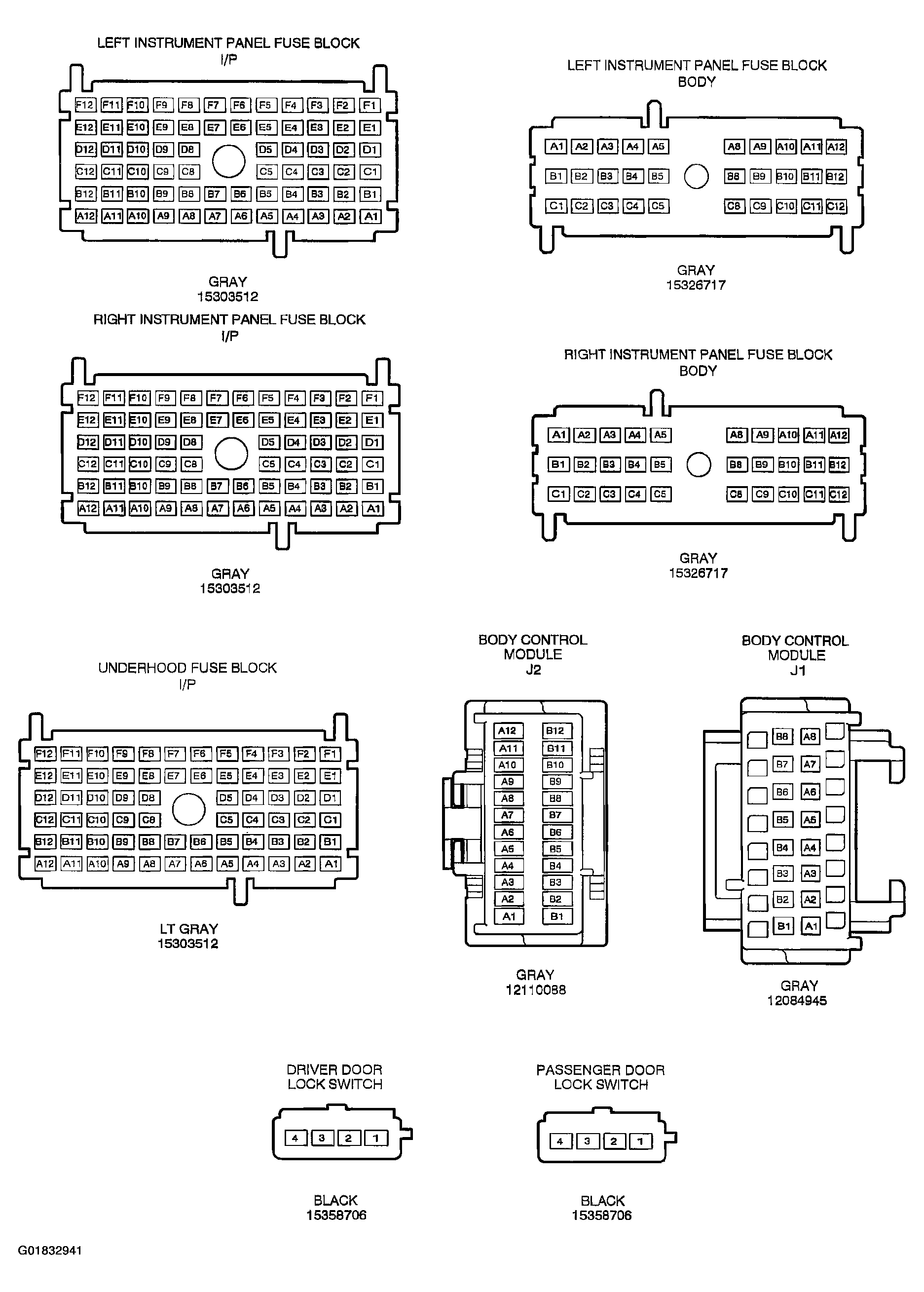

Fig 1: RKE/Security System (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
