Lower Crankcase (Bottom View)

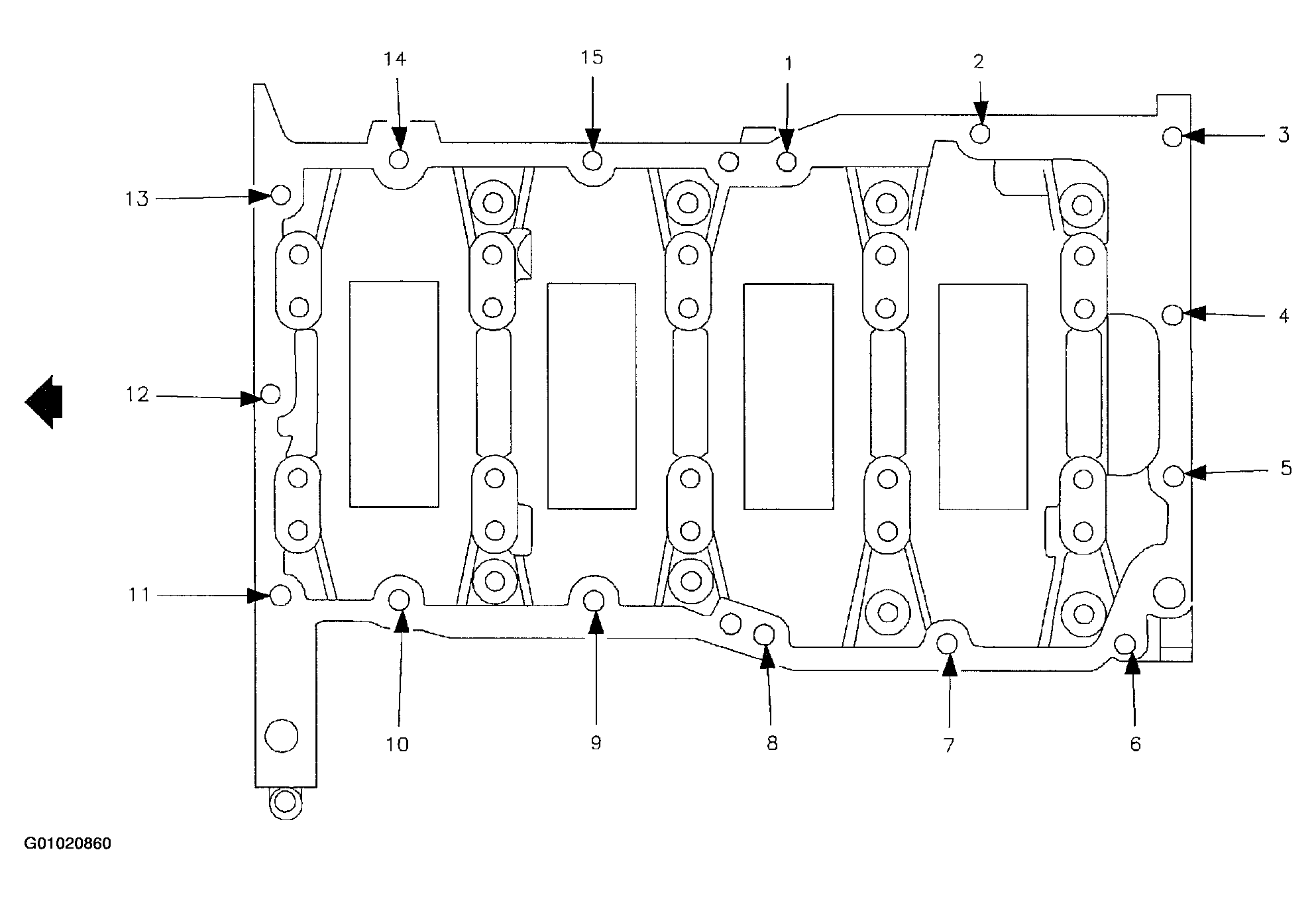

Fig 1: Lower Crankcase (Bottom View)
G01020860Courtesy of GENERAL MOTORS CORP.
Fig 2: Lower Crankcase (Bottom View) Specifications
G01020861Courtesy of GENERAL MOTORS CORP.
