Recliner Handle: Installation

  1. Install recliner handle and retainer. Tighten manual seat recliner handle-to-seat adjuster fasteners to 2.5 N.m (22 in lbs).

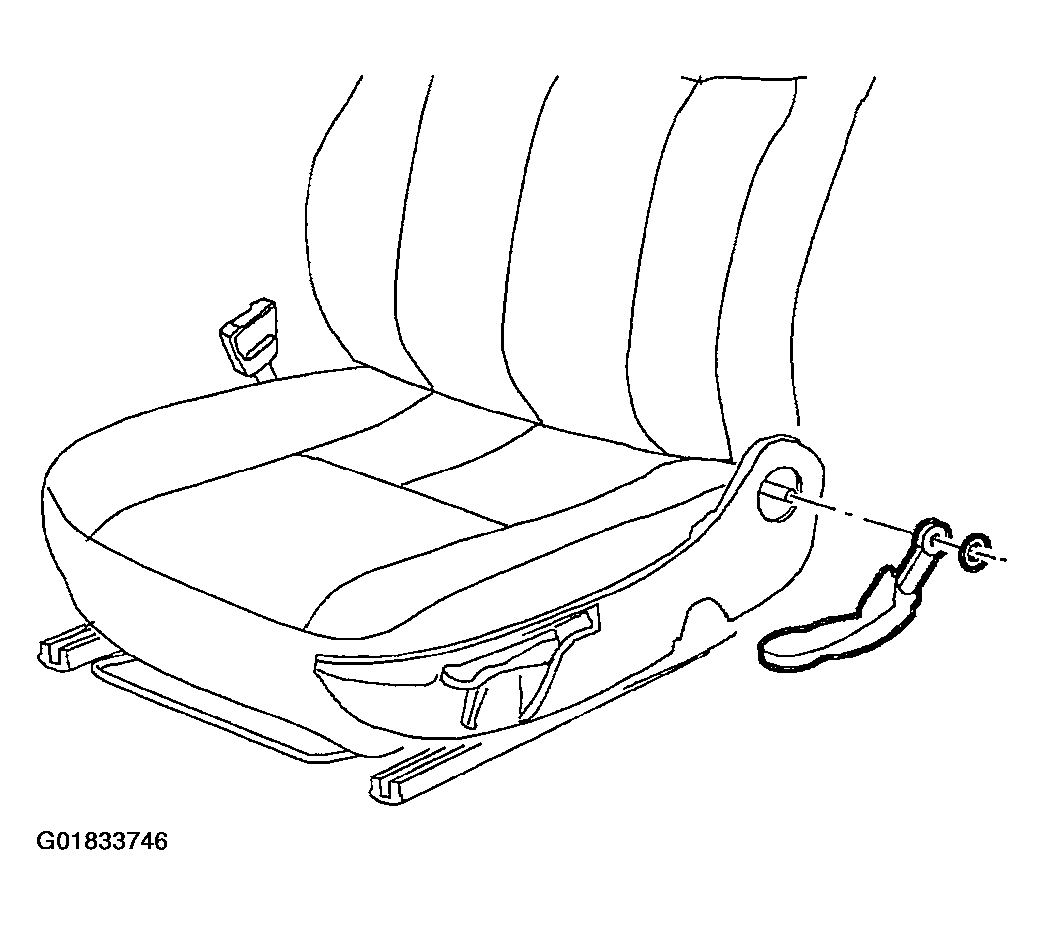

    2. Fig 1: Installing Recliner Handle
    G01833746Courtesy of GENERAL MOTORS CORP.
  2. Position recliner cover to seat outer valance ensuring that the rear locking feature is over side trim panel.
  3. Snap recliner cover into seat outer valance.

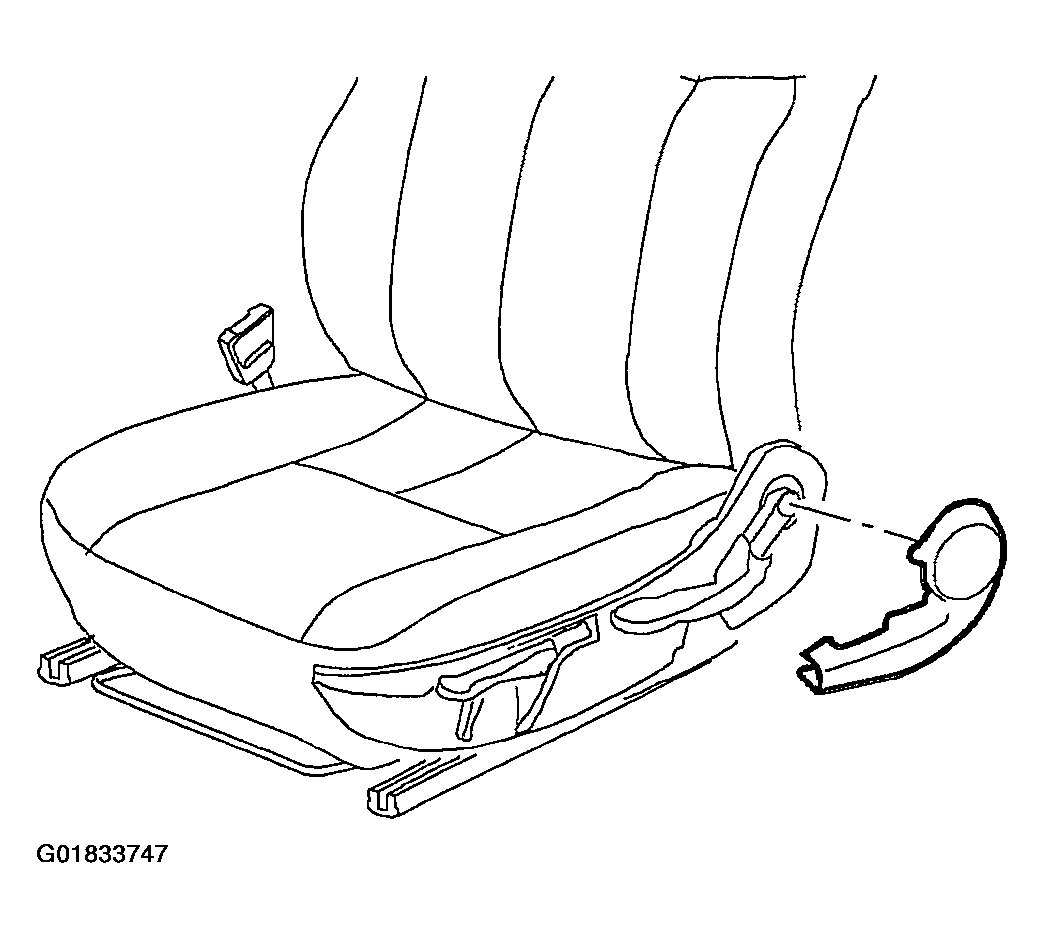

    4. Fig 2: Snapping Recliner Cover Into Seat Outer Valance
    G01833747Courtesy of GENERAL MOTORS CORP.
