I/P Fuse Block - Body

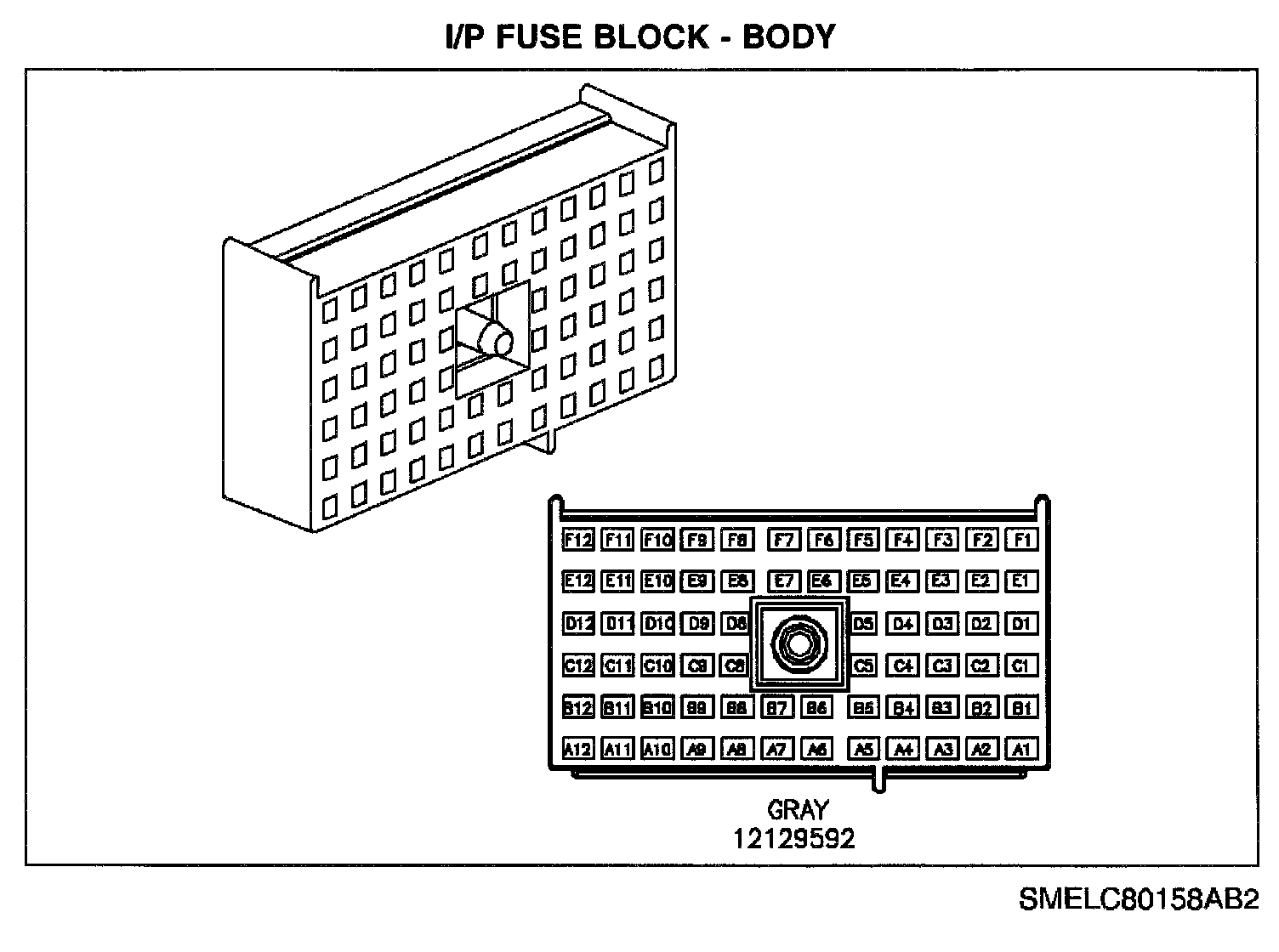

I/P Fuse Block - Body (Part 1 Of 4):

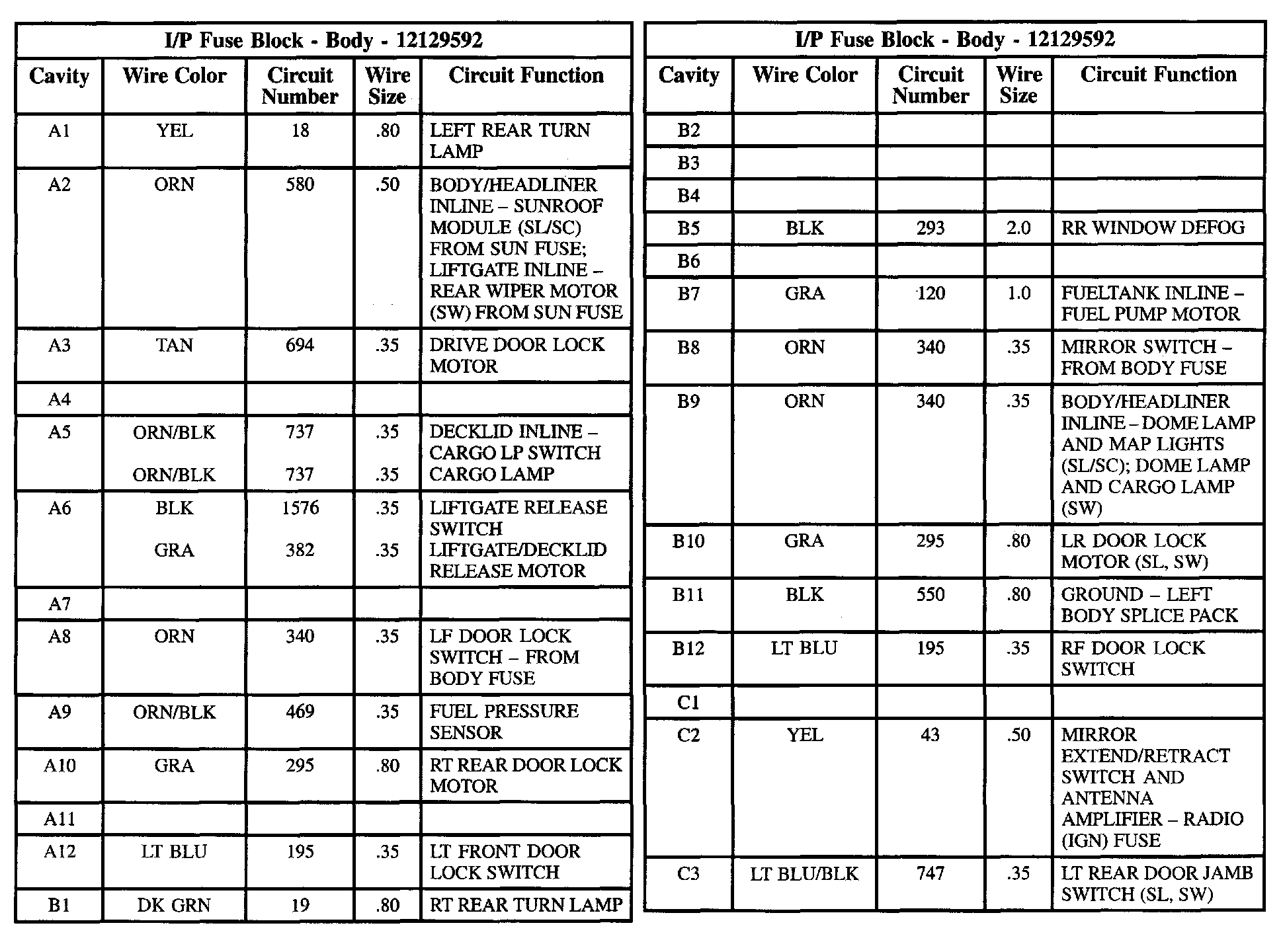

I/P Fuse Block - Body (Part 2 Of 4):

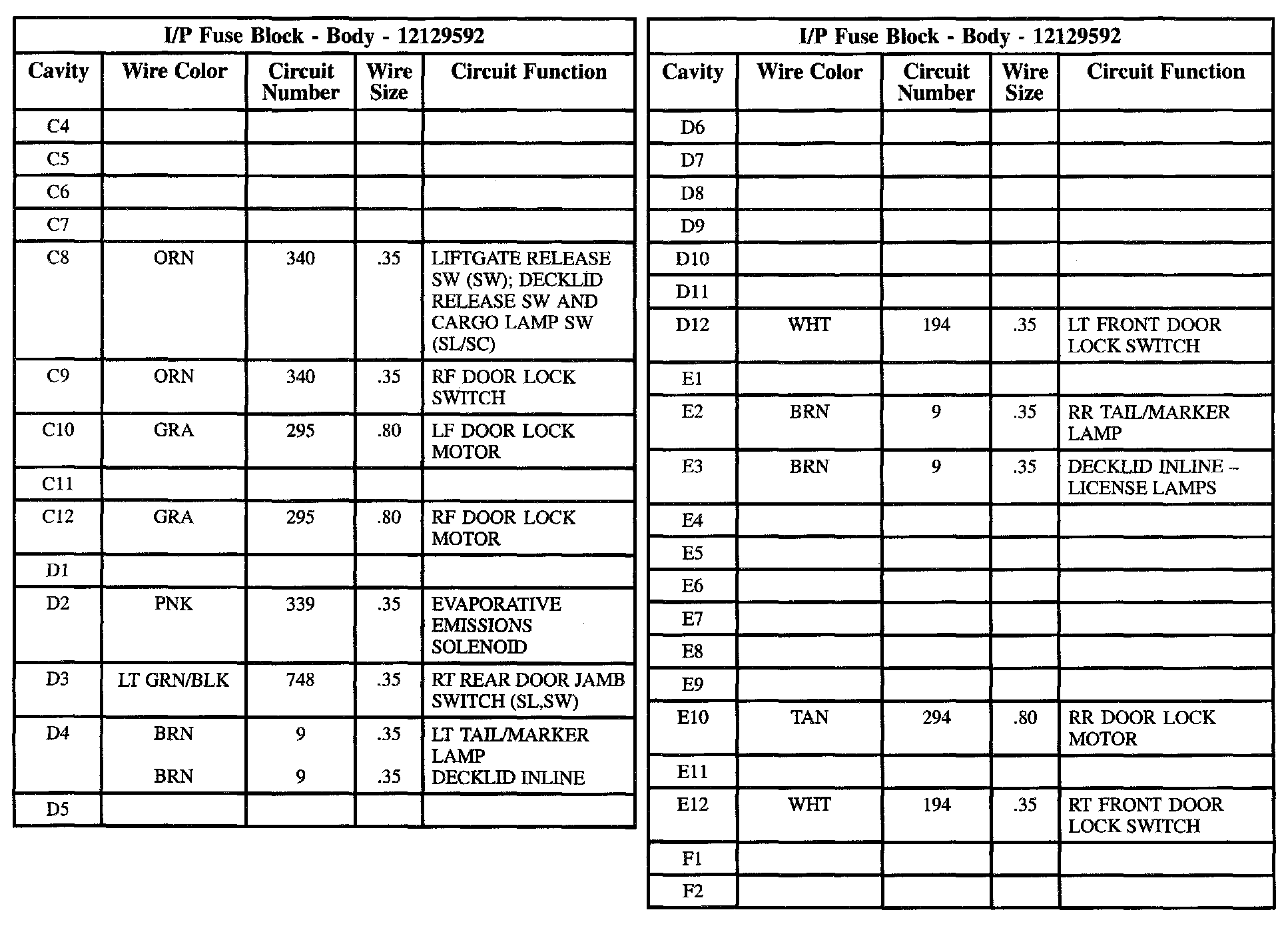

I/P Fuse Block - Body (Part 3 Of 4):

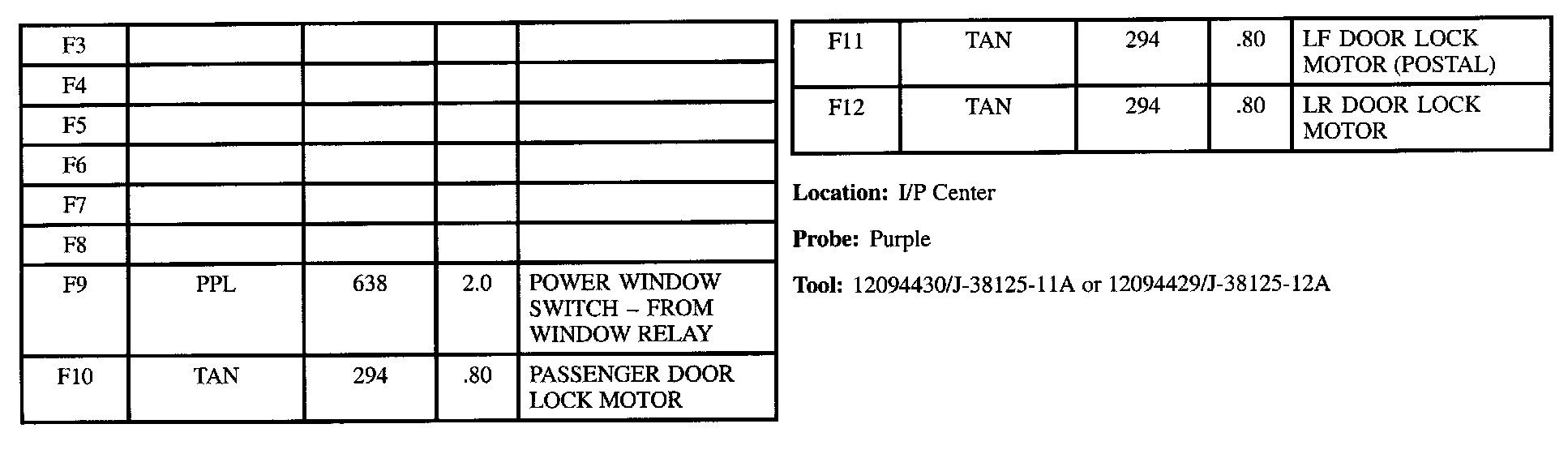

I/P Fuse Block - Body (Part 4 Of 4):
