Control Module, A/T

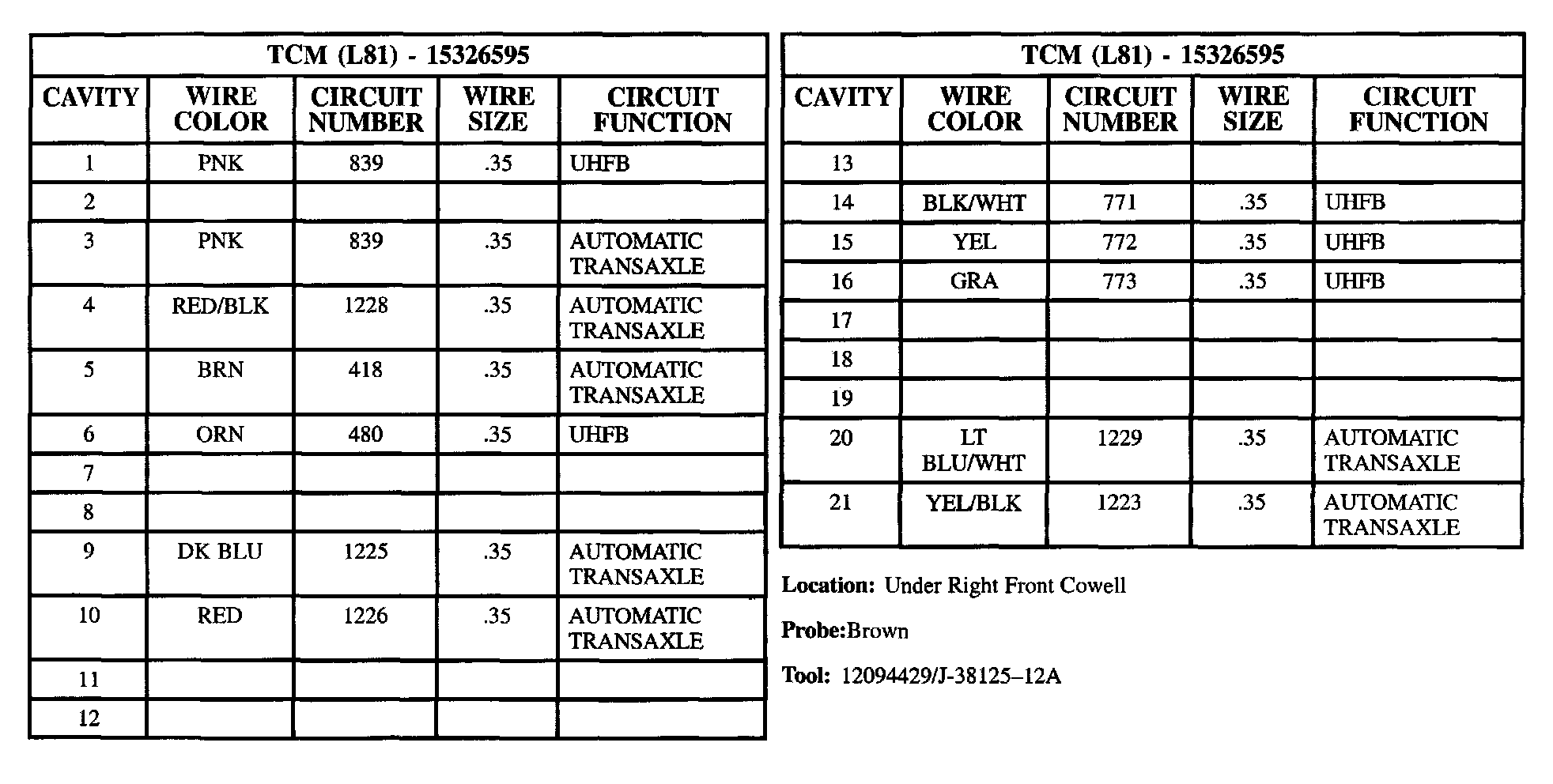

Transaxle Control Module (TCM) (Part 1 Of 2):

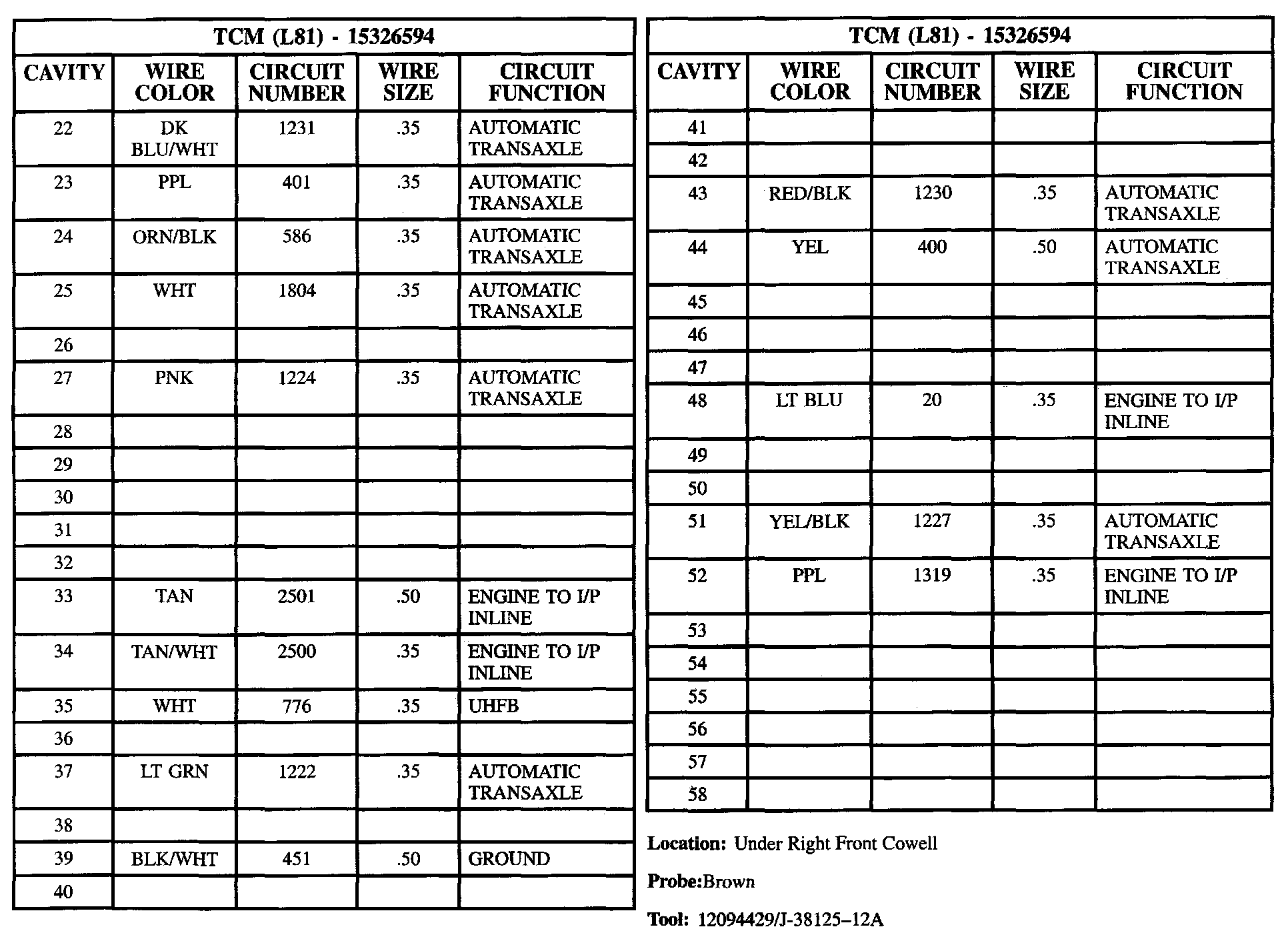

Transaxle Control Module (TCM) (Part 2 Of 2):




Transaxle Control Module (TCM) (Part 1 Of 2):




Transaxle Control Module (TCM) (Part 2 Of 2):
