Input and Output Shaft Components

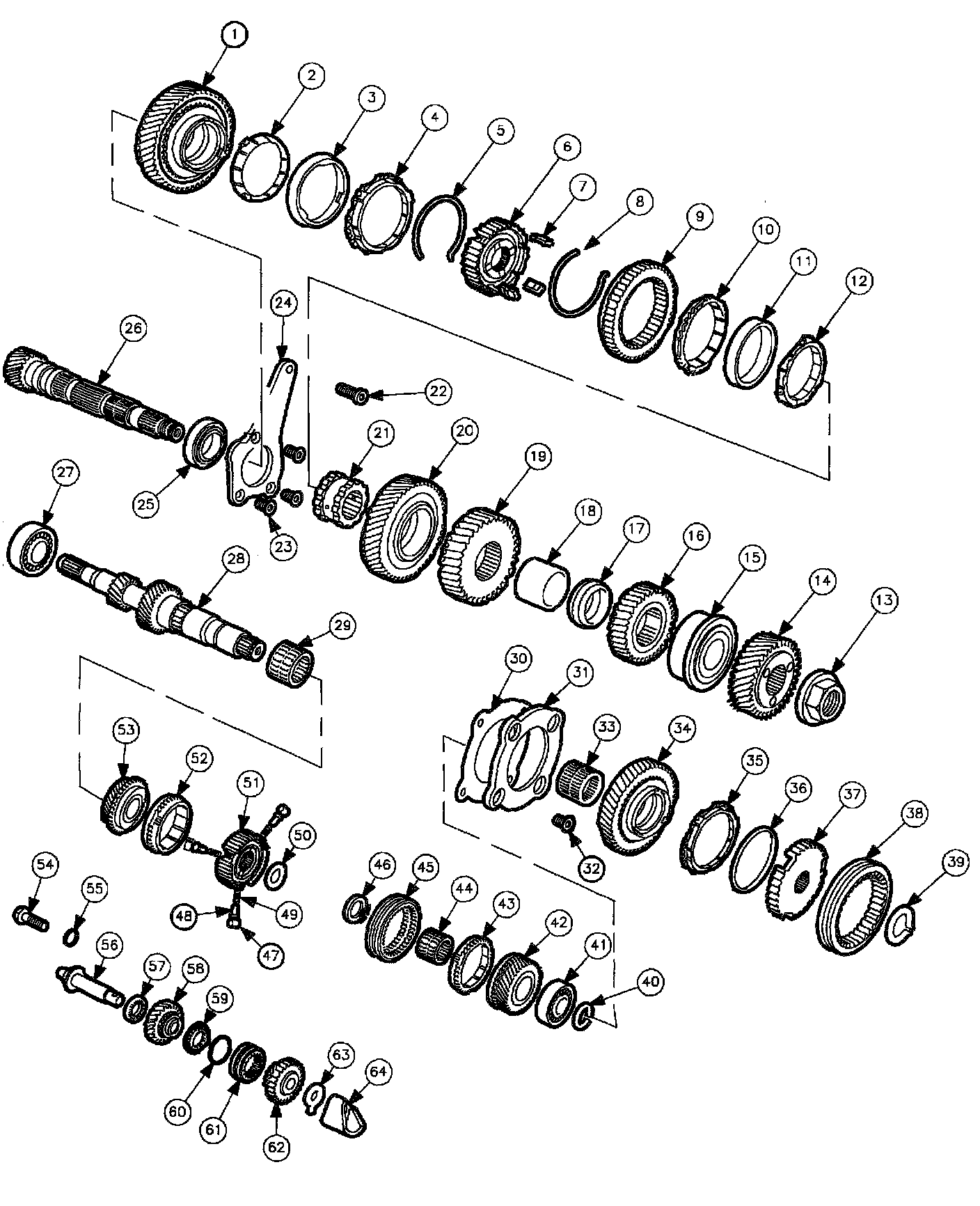

INPUT AND OUTPUT SHAFT COMPONENTS

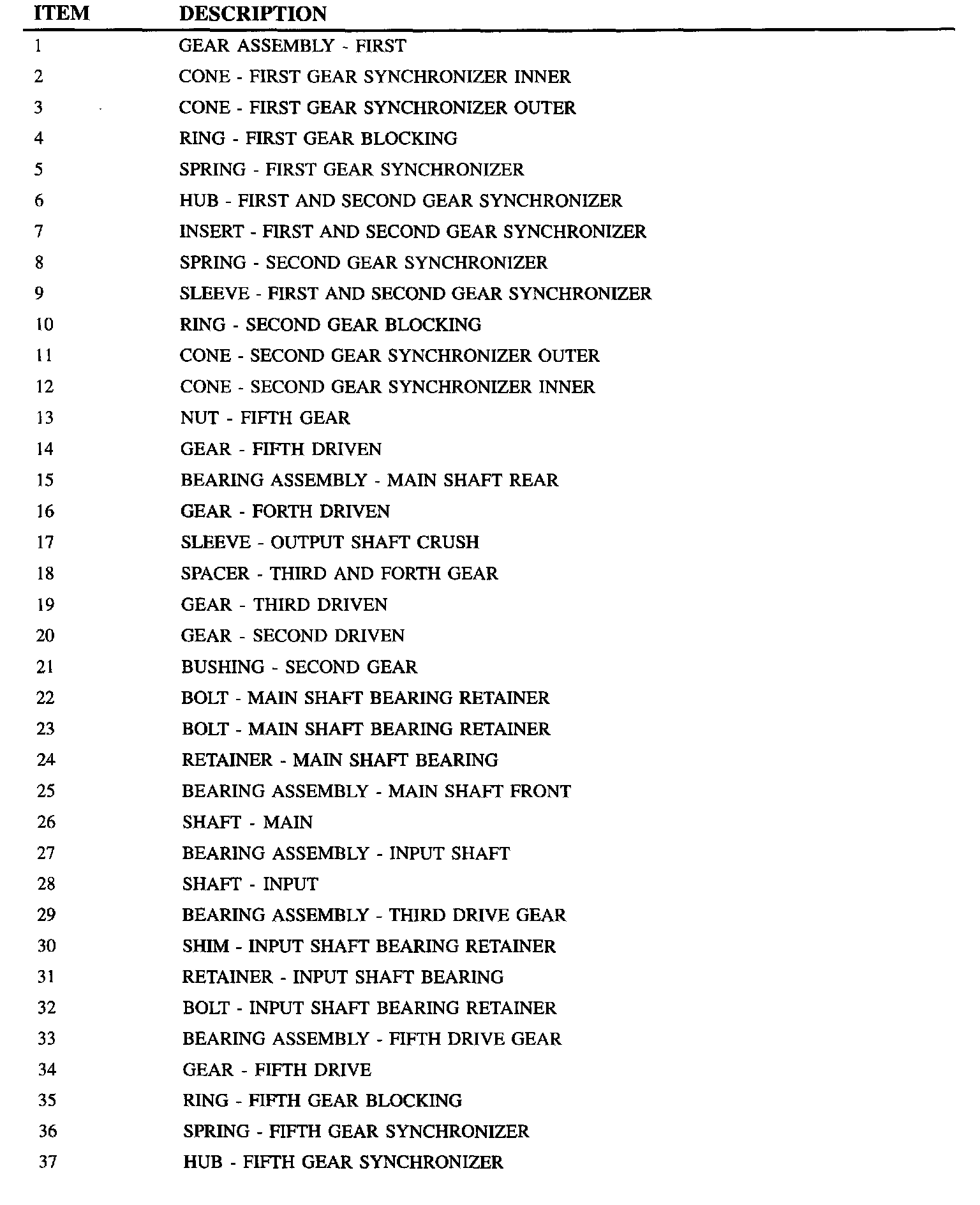

Part 1 of 3

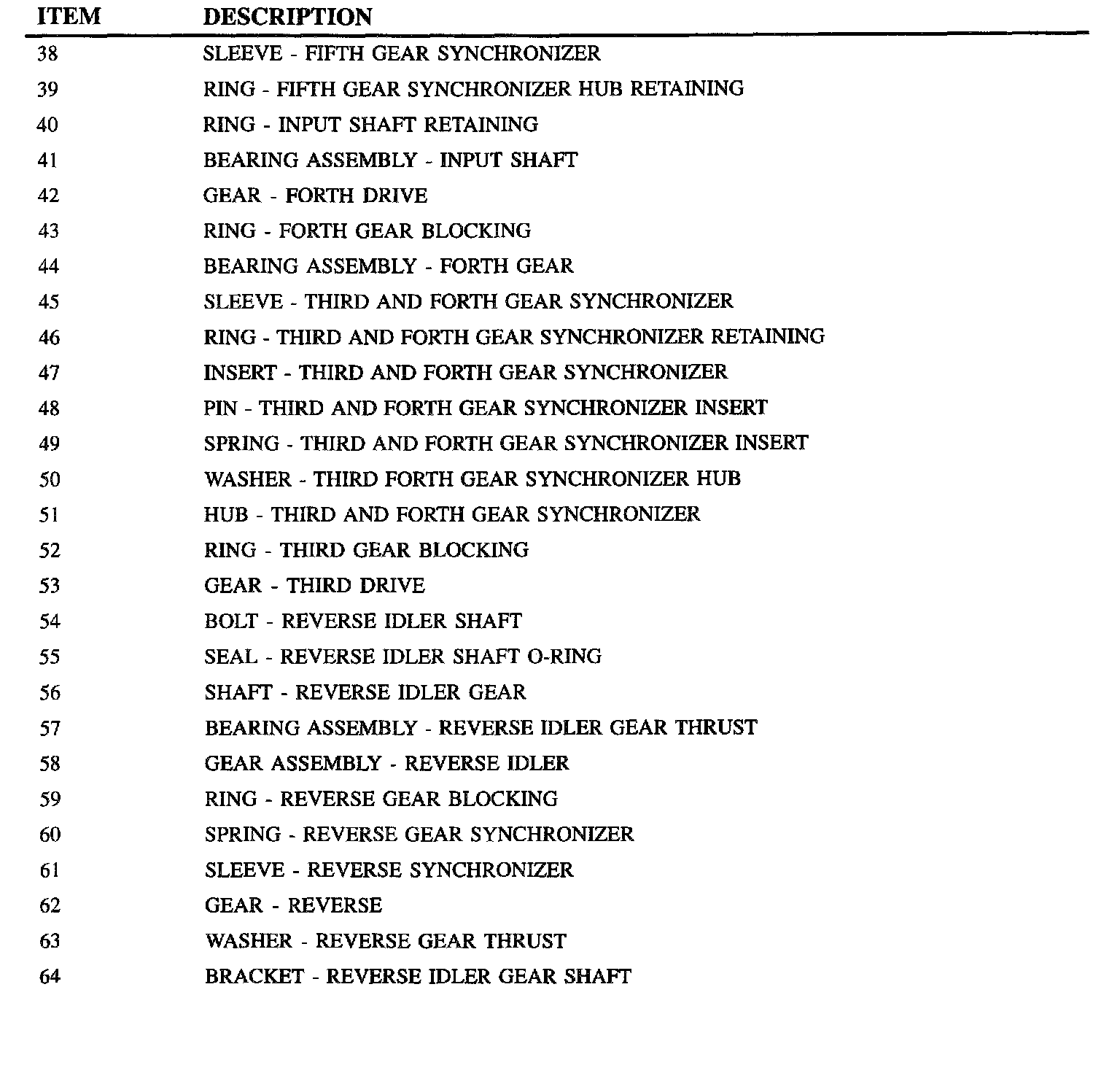

Part 2 of 3
Part 3 of 3
