Cruise Control Servo Cable: Adjustments

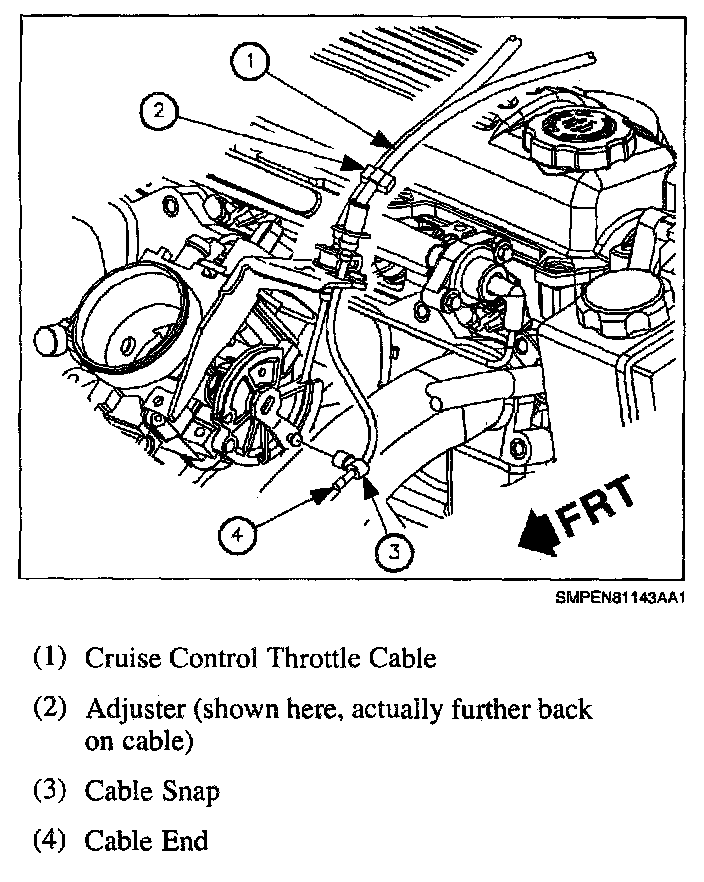

CRUISE CONTROL THROTTLE CABLE ADJUSTMENT




1. Partially disengage adjustment lock on cruise control throttle cable by depressing tabs (do not remove entirely). This will release spring inside adjuster to take out cable slack.
2. Make sure throttle plate is fully closed.
3. Ensure cable end is tight against cable snap.
4. Engage adjustment lock.
