Instrument Panel Fuse Block (IPFB)

REMOVAL




1. Disconnect negative battery cable.
2. Disconnect positive battery cable.
3. Remove left and right lower trim panel extension by pulling outward at dual-lock locations.
4. Rotate panels outward to disengage hinges from console.




5. Remove connectors.
(1) I/P, BLK 68-way
(2) Body, GRA 68-way
(3) I/P BLK 24-way

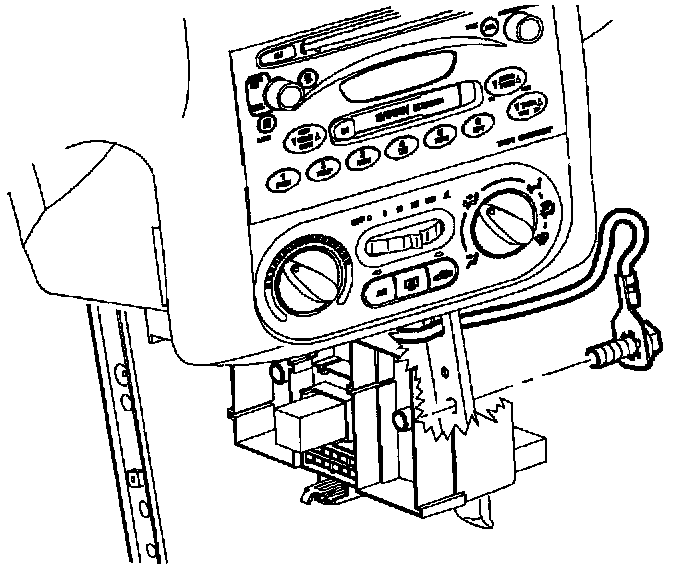

6. Remove nut holding the IPFB in place.
7. Remove IPFB from vehicle.

INSTALLATION




1. Align IPFB in place.
2. Install nut to hold IPFB in place

Torque: 2.2 N.m (20 in-lbs)




3. Install Connectors.
(1) I/P BLK 68-way
(2) Body, GRA 68-way
(3) I/P BLK 24-way




4. Install left and right lower trim panel extensions.
a. Insert extension panel hinges into console.
b. Close extension panel.
c. Push extension panel at dual-lock locations to secure in place.
5. Connect positive battery cable.
6. Connect negative battery cable.
