Home >> Saturn >> 2000 >> SC2 L4-1.9L DOHC VIN 7 >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Manual Transmission/Transaxle >> Case and Internal Components
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

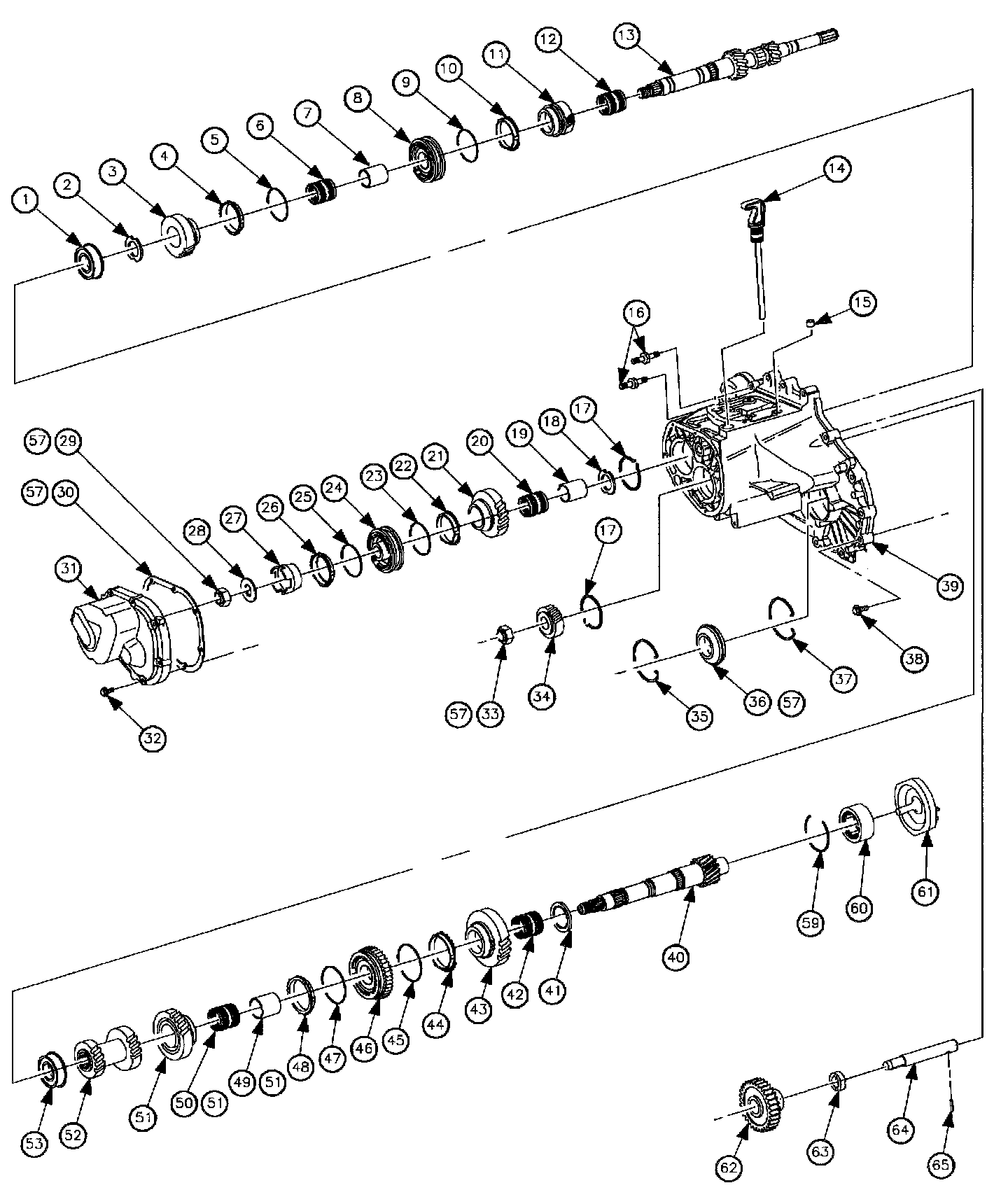

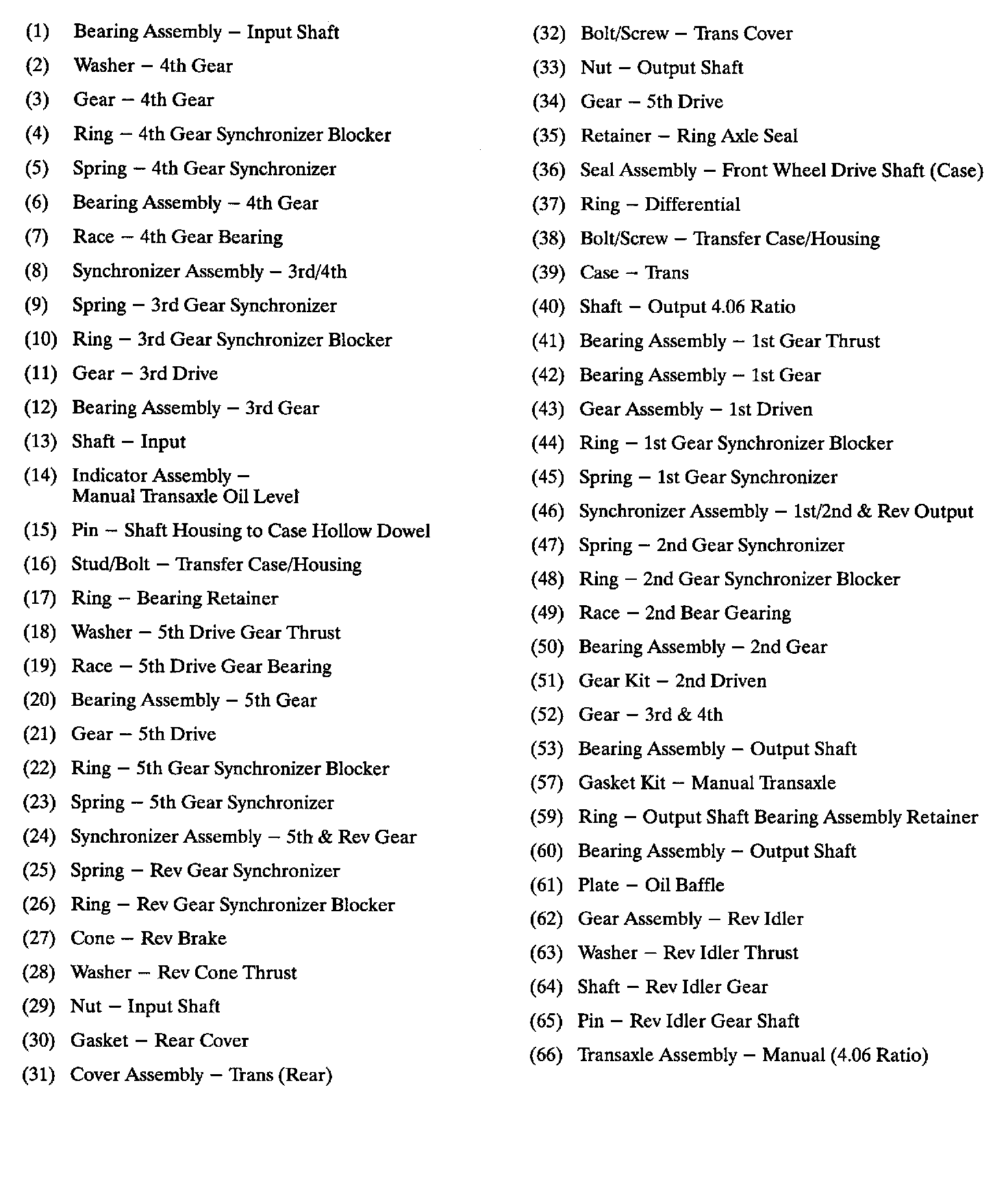

Case and Internal Components





Part 1 of 2





Part 2 of 2
