I/P Fuse Block - I/P

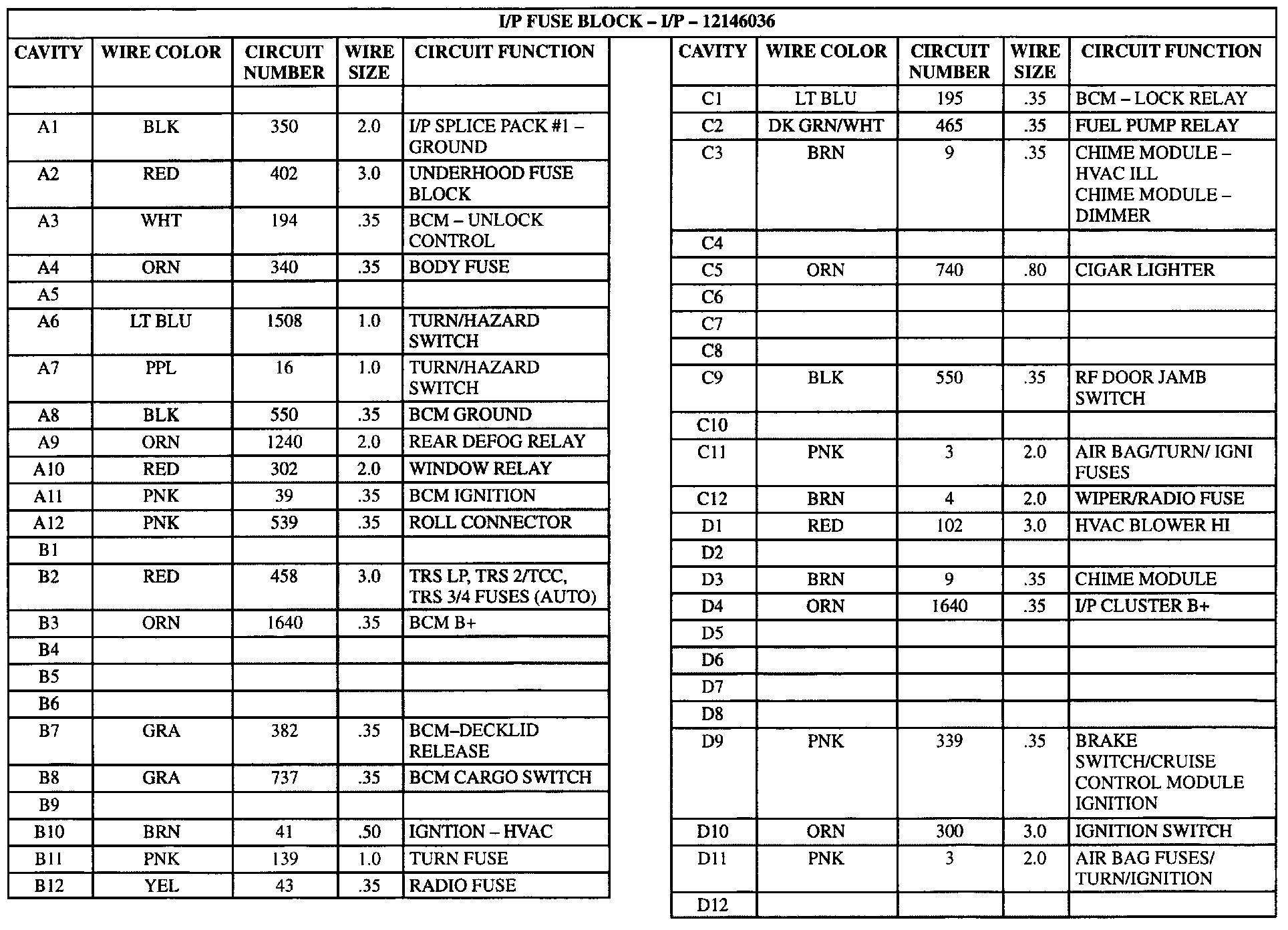

I/P Fuse Block - I/P (Part 1 Of 3):

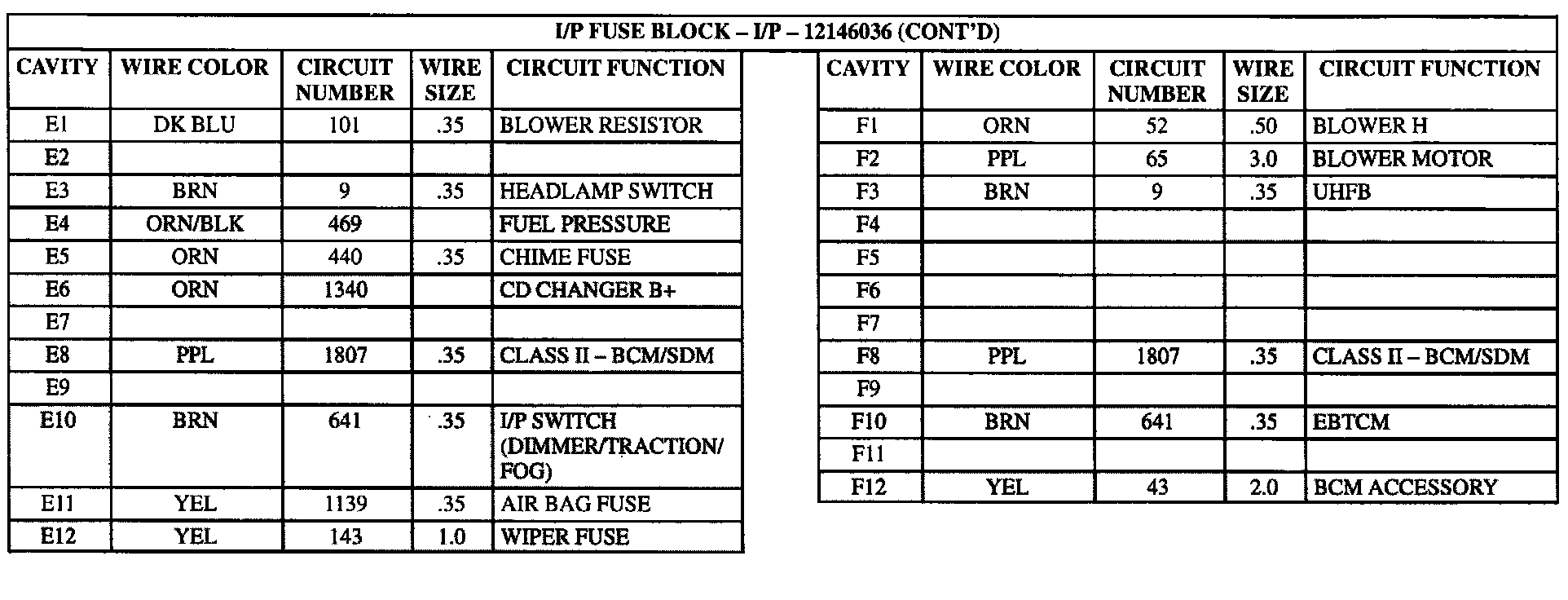

I/P Fuse Block - I/P (Part 2 Of 3):




I/P Fuse Block - I/P (Part 3 Of 3):

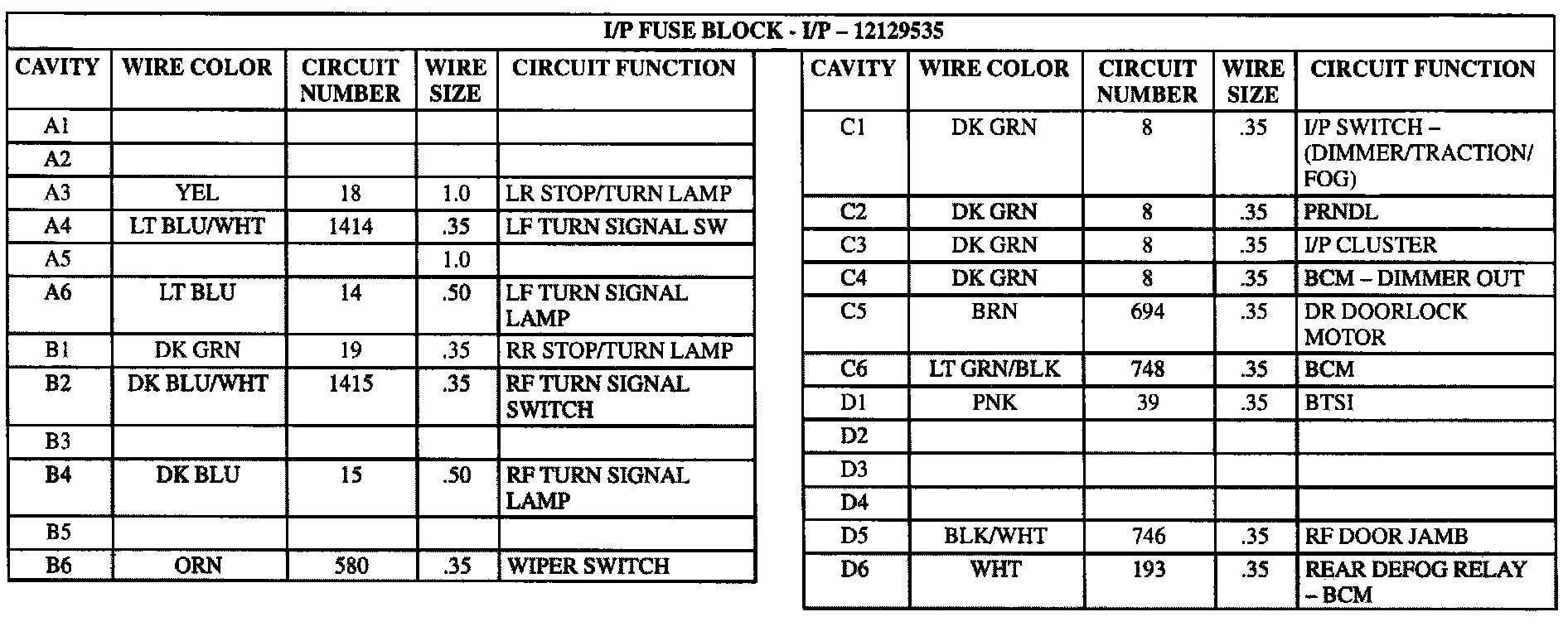

I/P Fuse Block - I/P (Part 1 Of 2):




I/P Fuse Block - I/P (Part 2 Of 2):
