I/P Fuse Block - Body

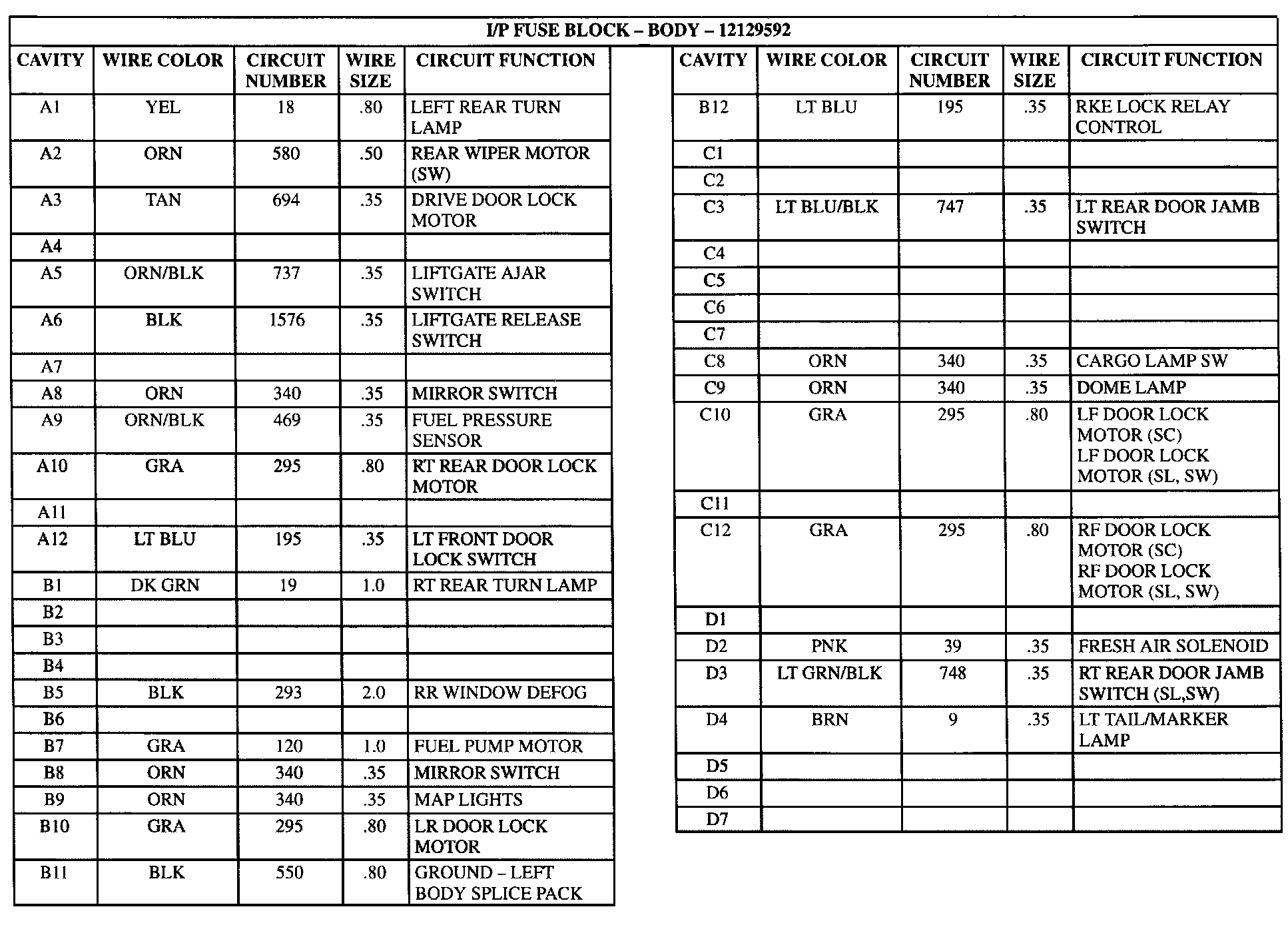

I/P Fuse Block - Body (Part 1 Of 3):

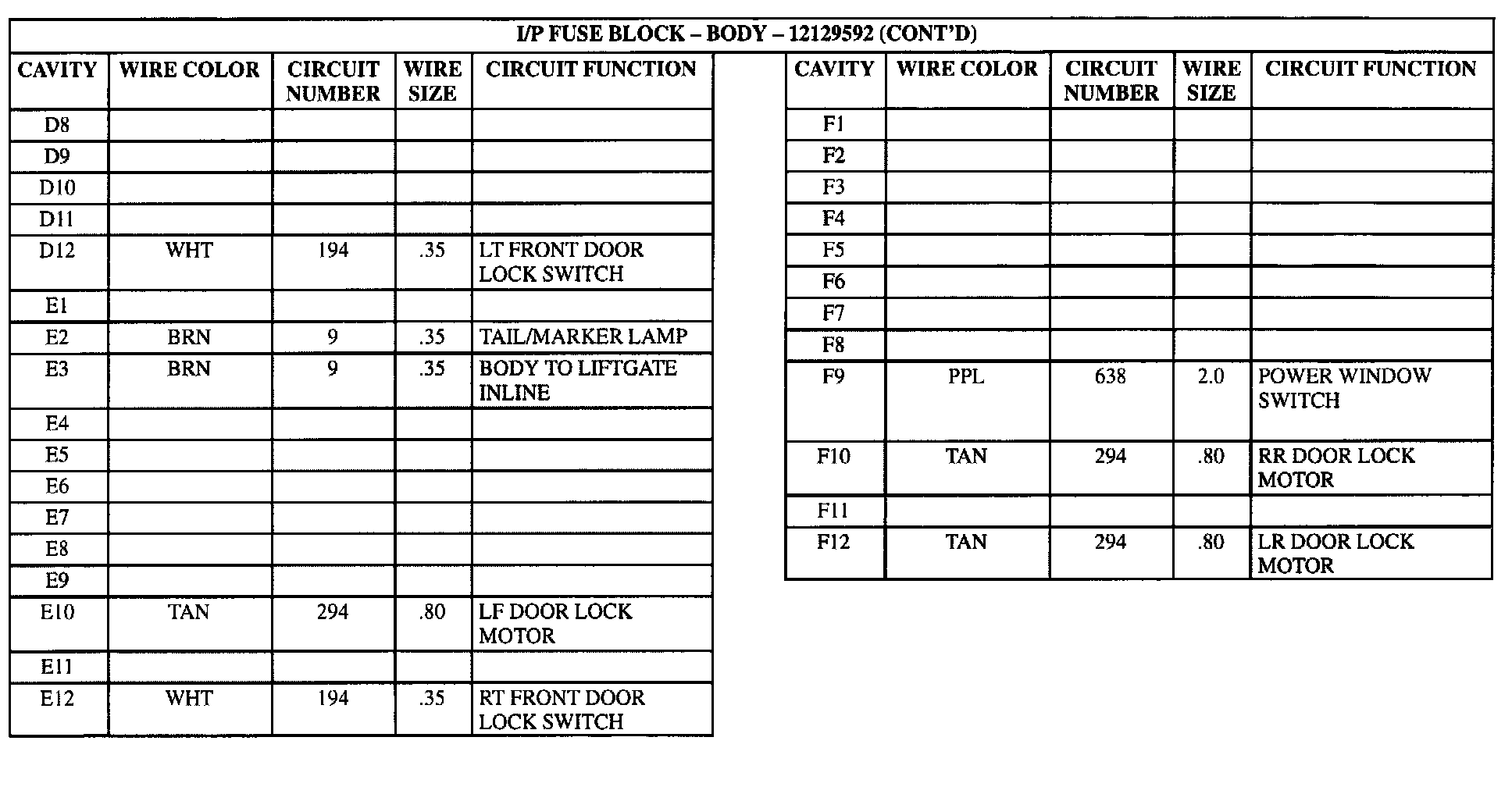

I/P Fuse Block - Body (Part 2 Of 3):



I/P Fuse Block - Body (Part 3 Of 3):
