Component Disassembly & Reassembly: Notes

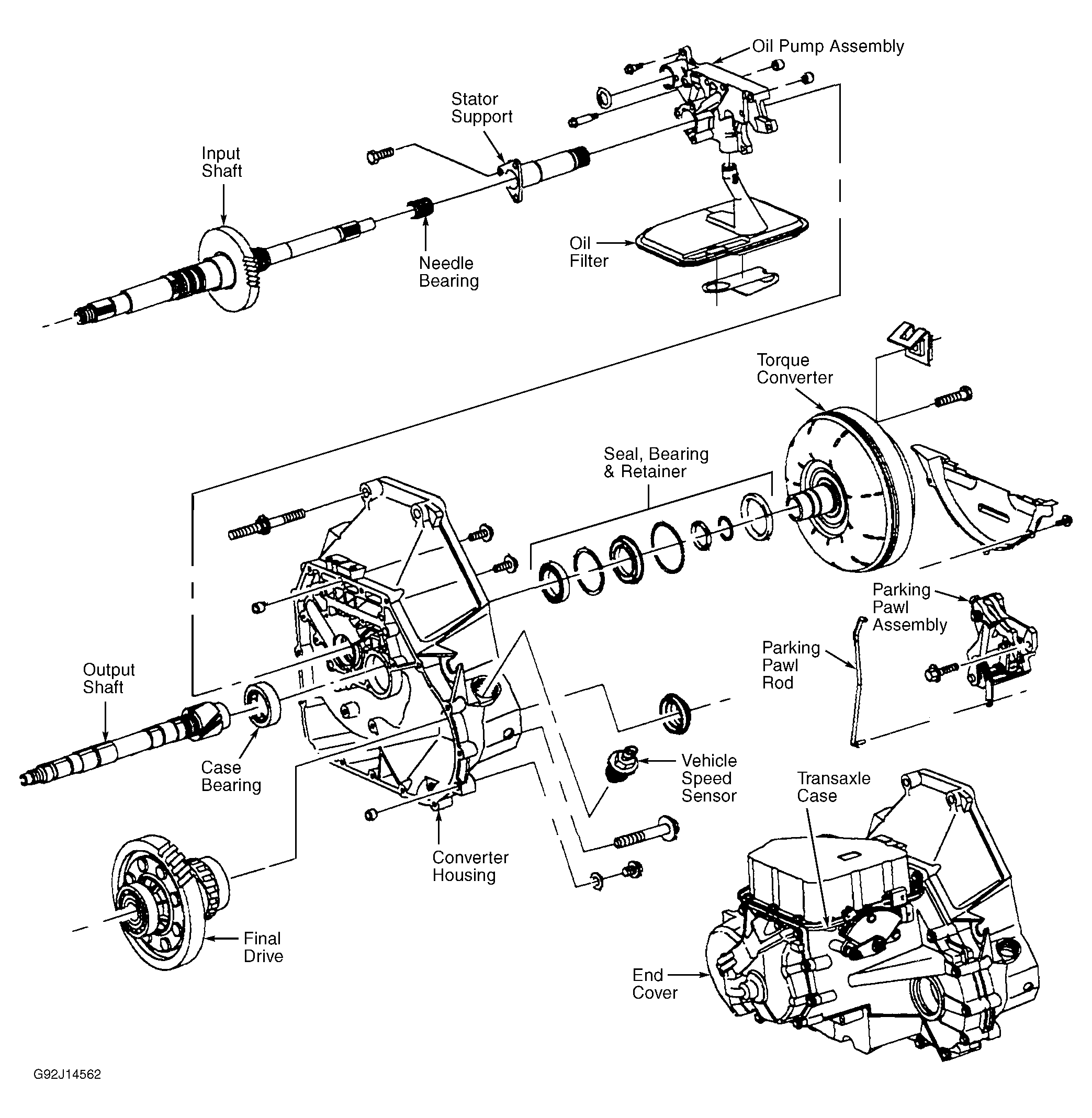

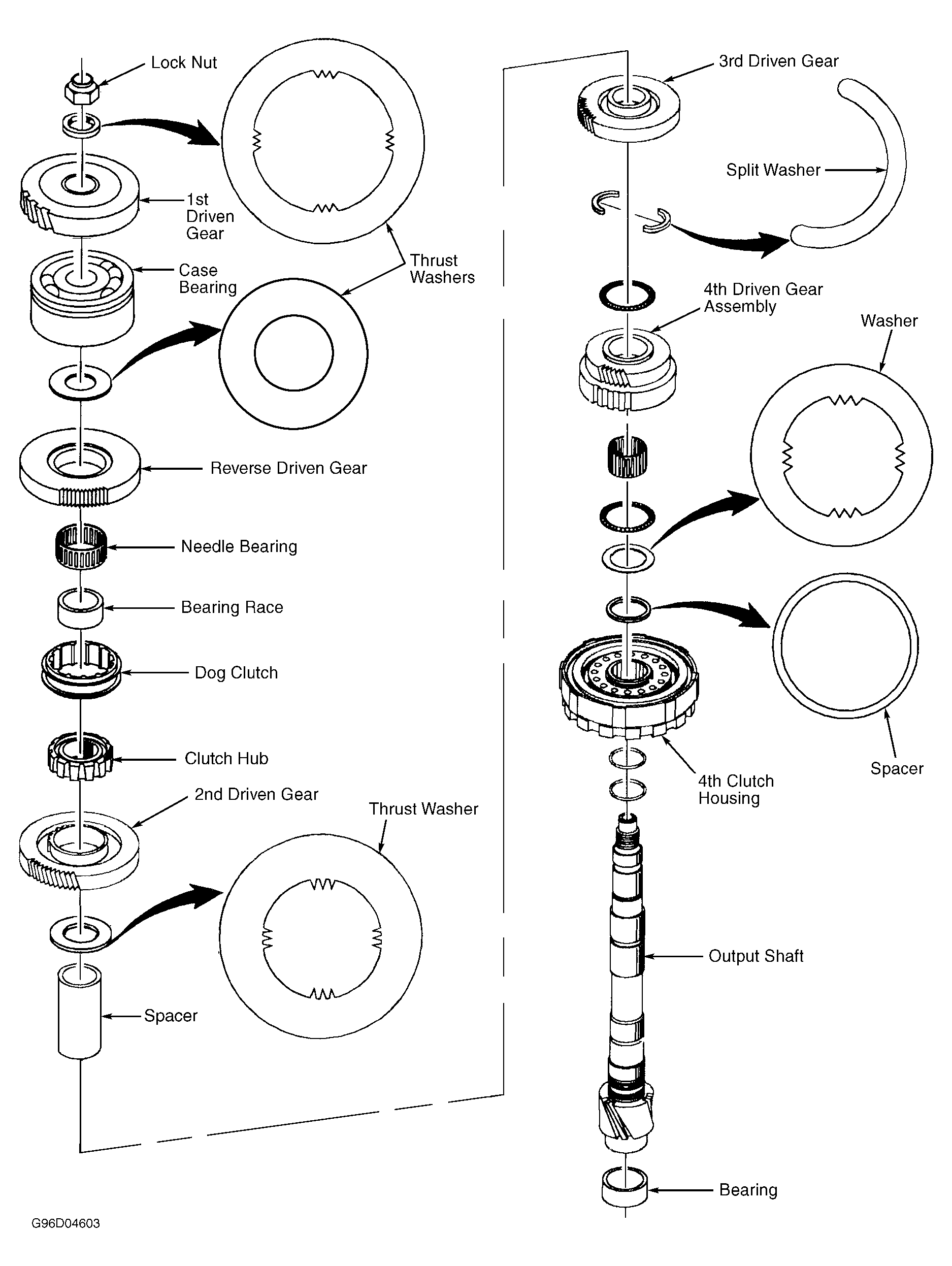

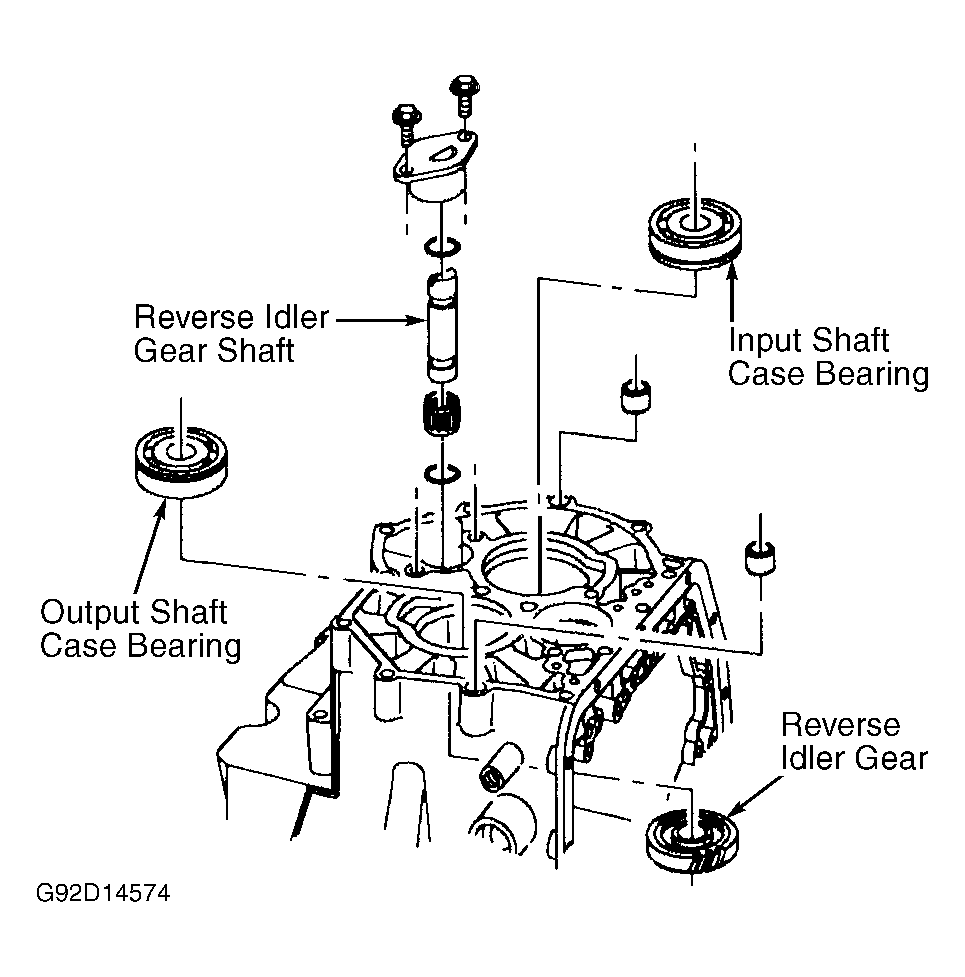

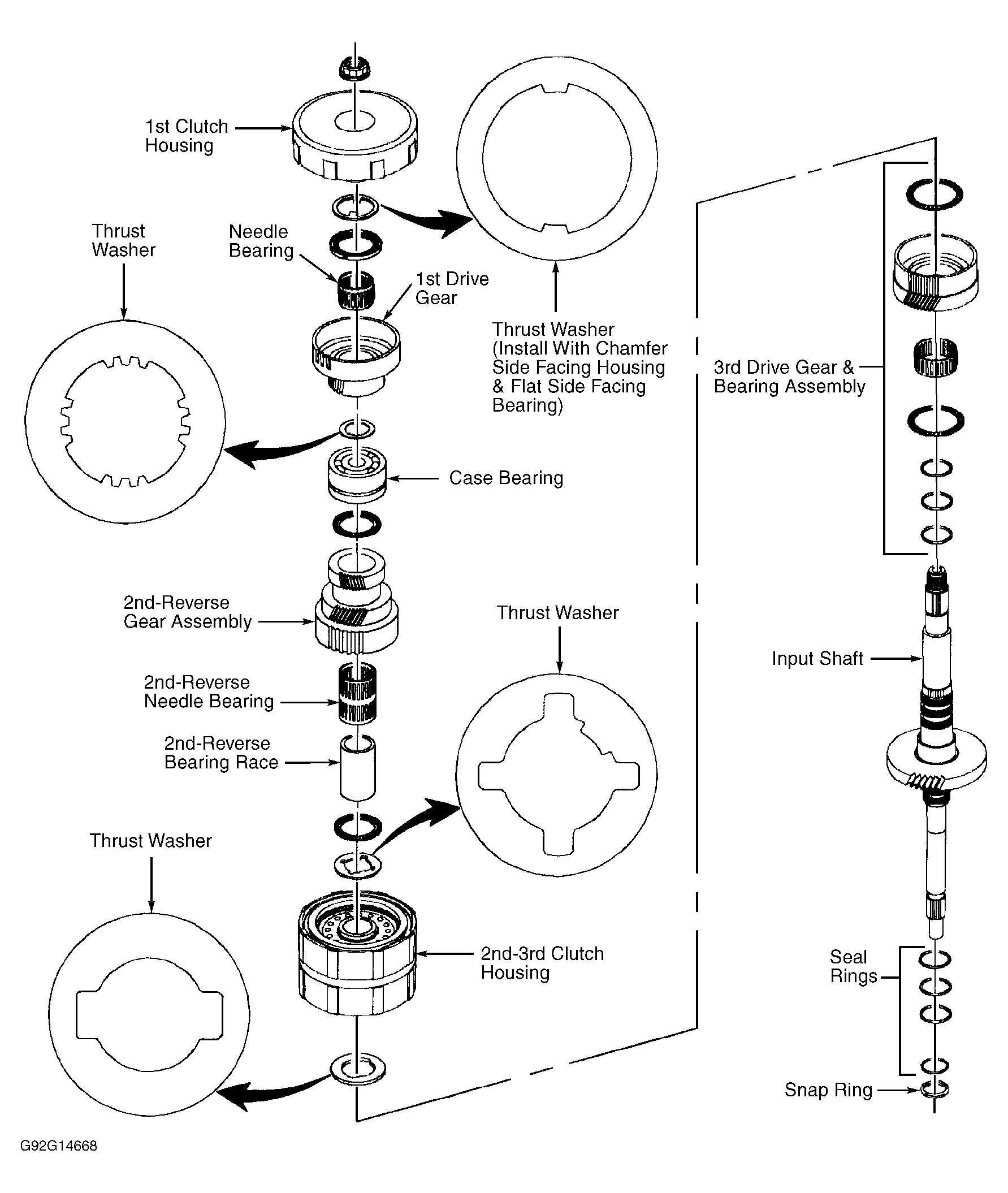

NOTE: For exploded views of internal components, thrust washer and bearing locations, refer to appropriate illustrations. See Figure , Figure , Figure and Figure .
