System Performance

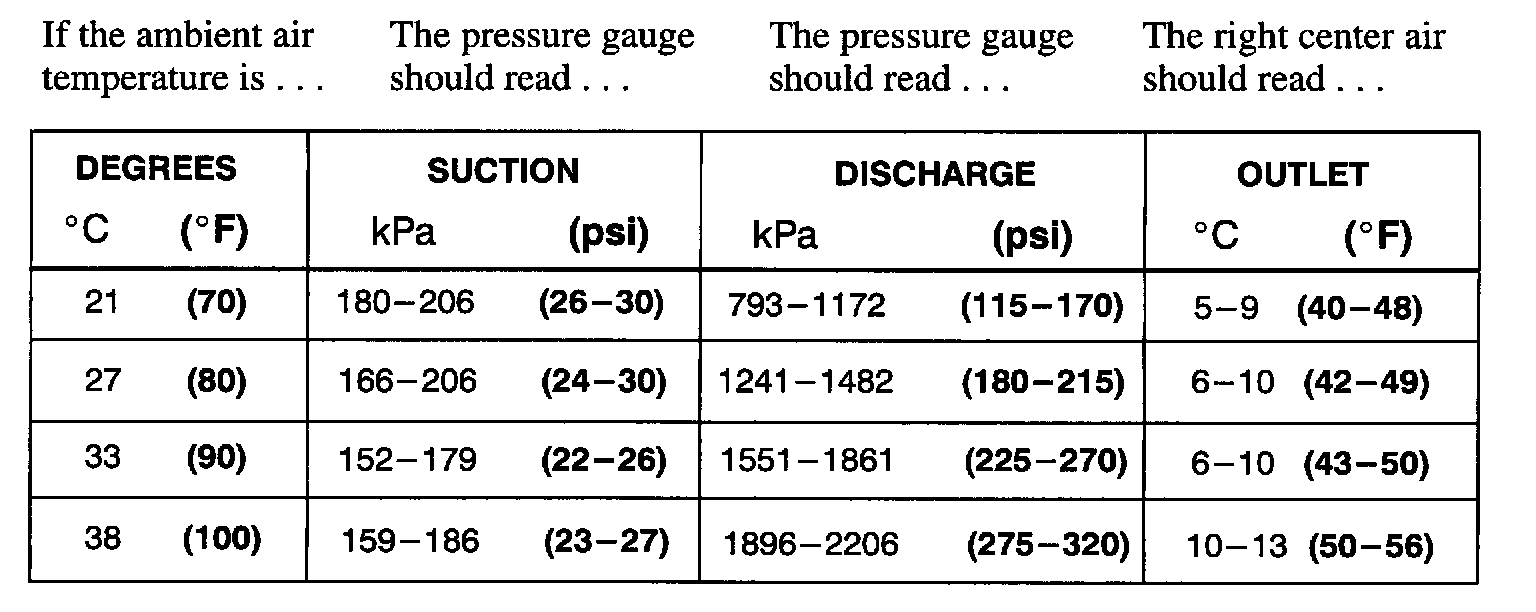

SYSTEM CONDITION CHARTS DEFINITION AND USAGE




KEY: STATEMENTS ARE USED TO INTERPRET THE PRESSURE AND TEMPERATURE READINGS COMPARED TO NORMAL SYSTEM PERFORMANCE. IF TESTING ABOVE OR BELOW AMBIENT TEMPERATURES LISTED, RELY ON KEY STATEMENTS TO DIAGNOSE SYSTEM.

THEN: Statements contain additional information to help you confirm your diagnosis and lead you to a corrective action.

^ When all pressure and temperature readings fall within the ranges of a given chart, use that chart to repair the vehicle.
