29. Reaction Internal Gear, Input Carrier Installation





IMPORTANT: While installing reaction internal gear and input carrier assembly, rotate assembly in order to mesh input carrier pinion gears to input internal gear.

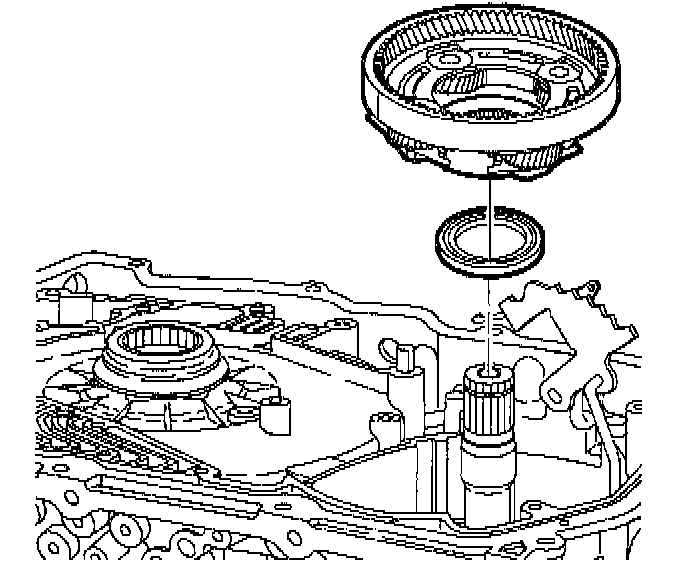

Install reaction internal gear and input carrier assembly into transaxle case.
