Headlamp High Beam

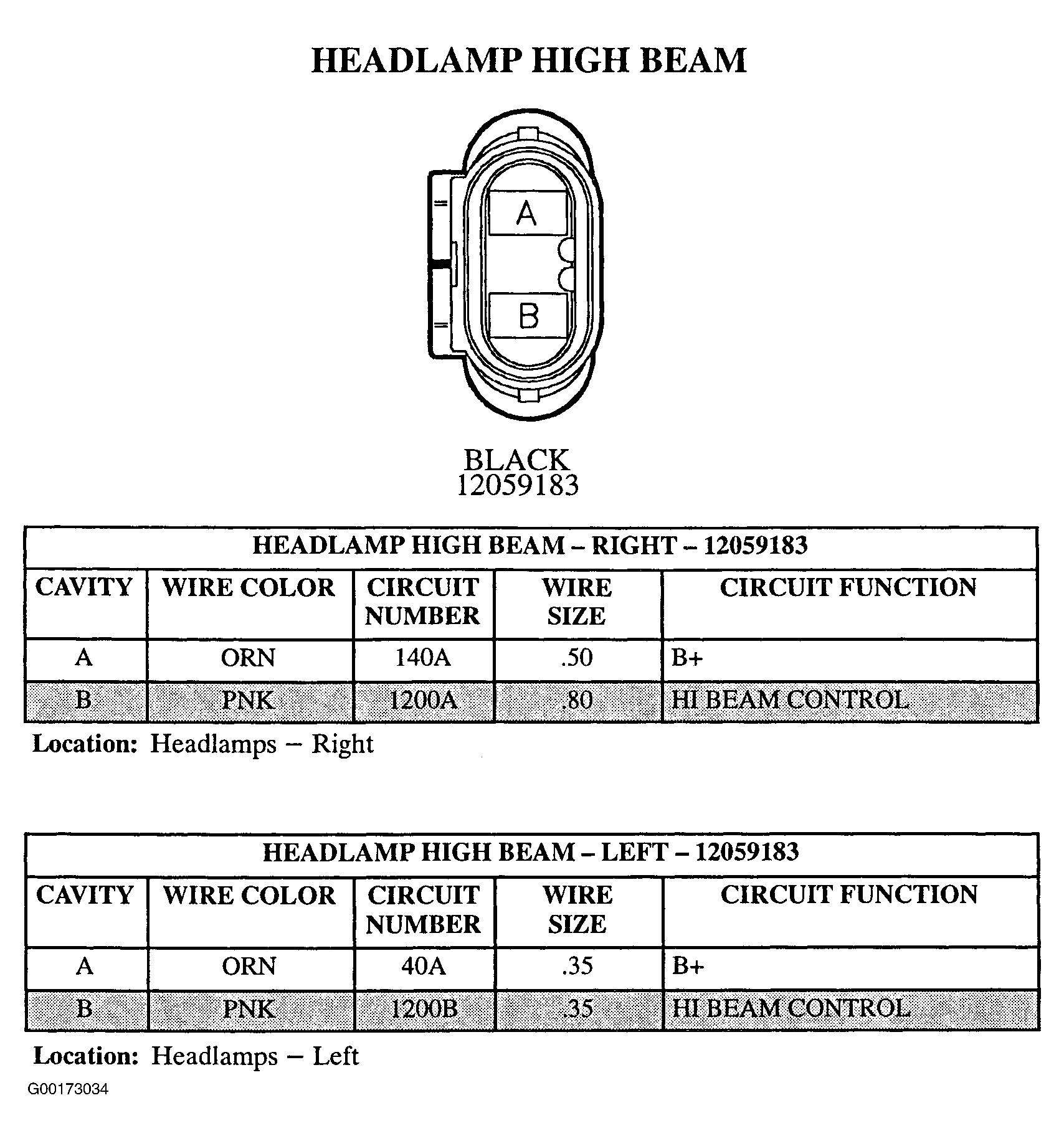

Fig 1: Headlamp High Beam - 2-Pin Connector (12059183) - Black
G00173034Courtesy of GENERAL MOTORS CORP.
