Outside Rearview Mirror Wiring Schematics

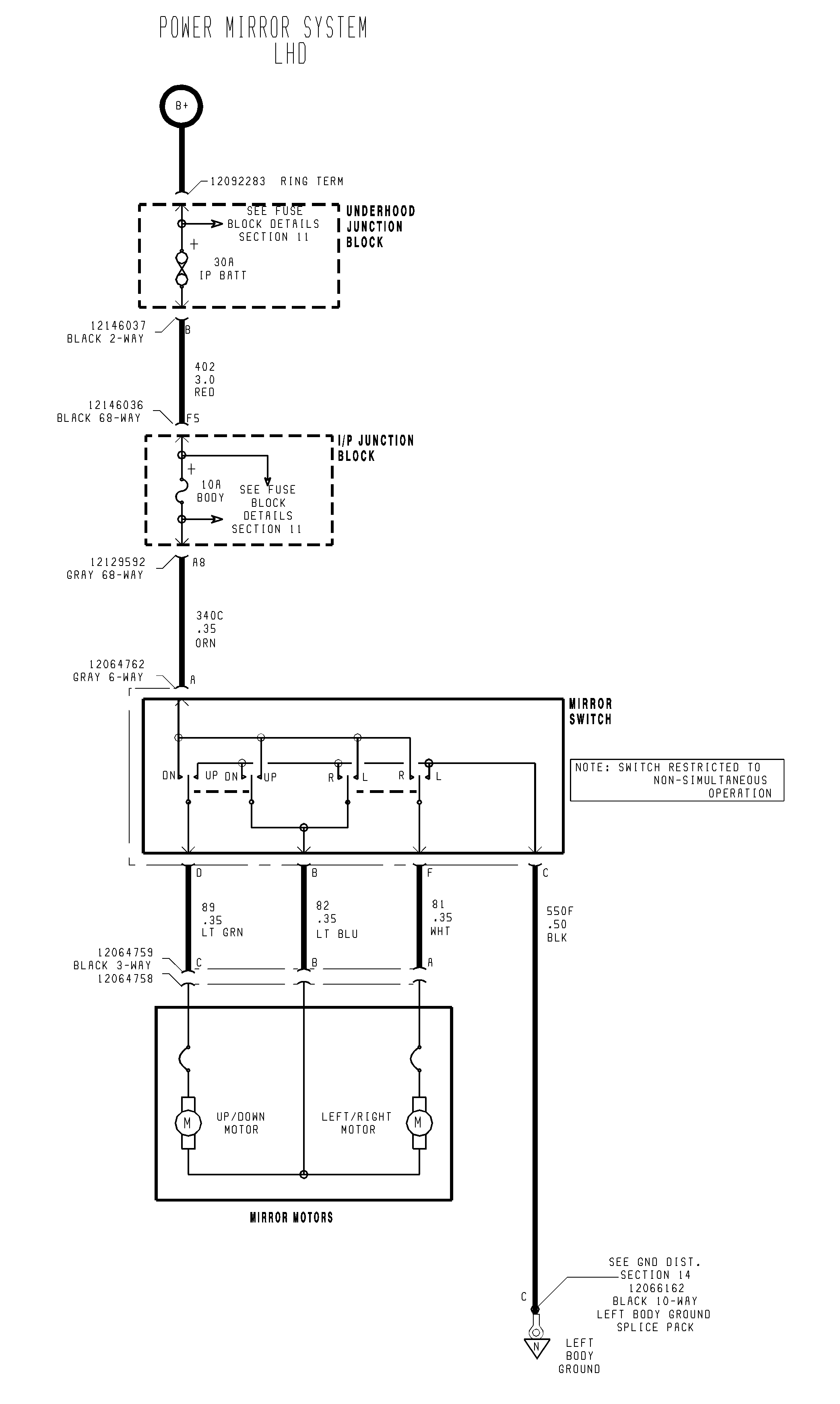

Fig 1: Outside Rearview Mirror Wiring Schematic

Courtesy of GENERAL MOTORS COMPANY
