Home
>>
Saturn
>>
1997
>>
SC2 Automatic, MP6
>>
Repair and Diagnosis
>>
Body & Frame
>>
Windows
>>
Power Window System
>>
Diagnostic Information And Procedures
>>
Power Window Switch Continuity Check
>>
Rear Door Switches
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Rear Door Switches

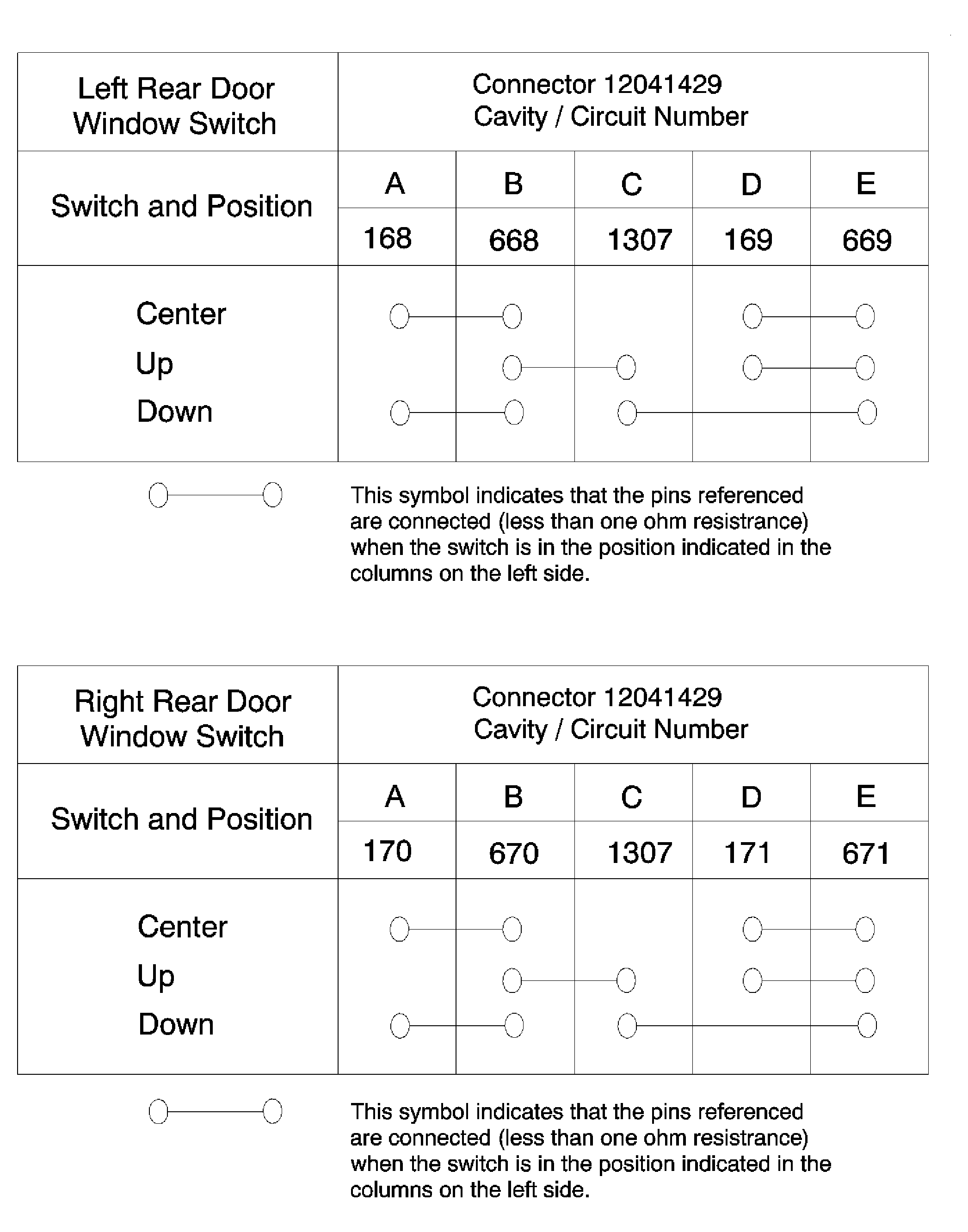

Fig 1: Rear Door Switches Continuity Chart
Courtesy of GENERAL MOTORS COMPANY
