Turbine Shaft Speed Sensor

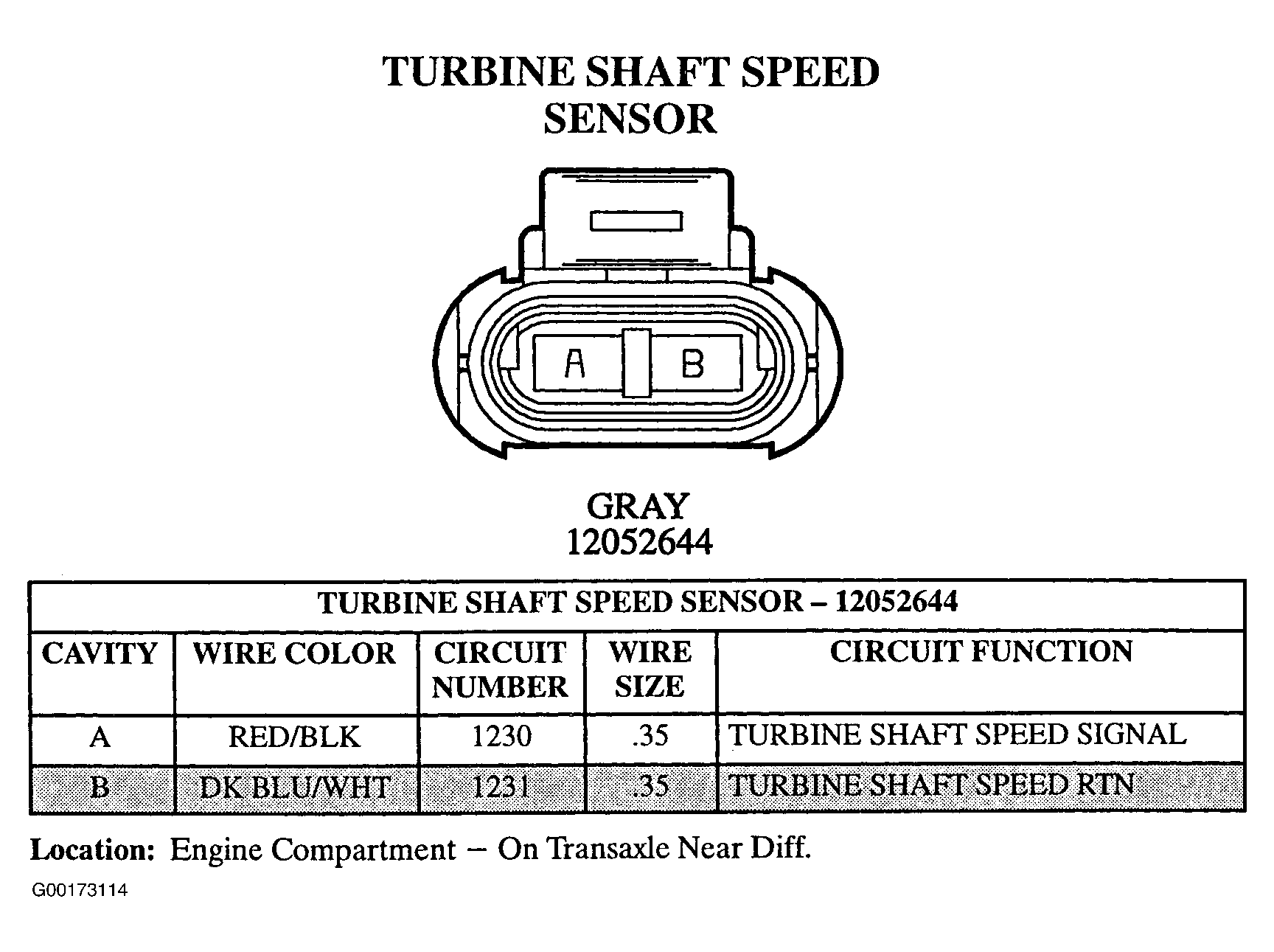

Fig 1: Turbine Shaft Speed Sensor - 2-Pin Connector (12052644) - Gray
G00173114Courtesy of GENERAL MOTORS CORP.
