System Relay: Locations

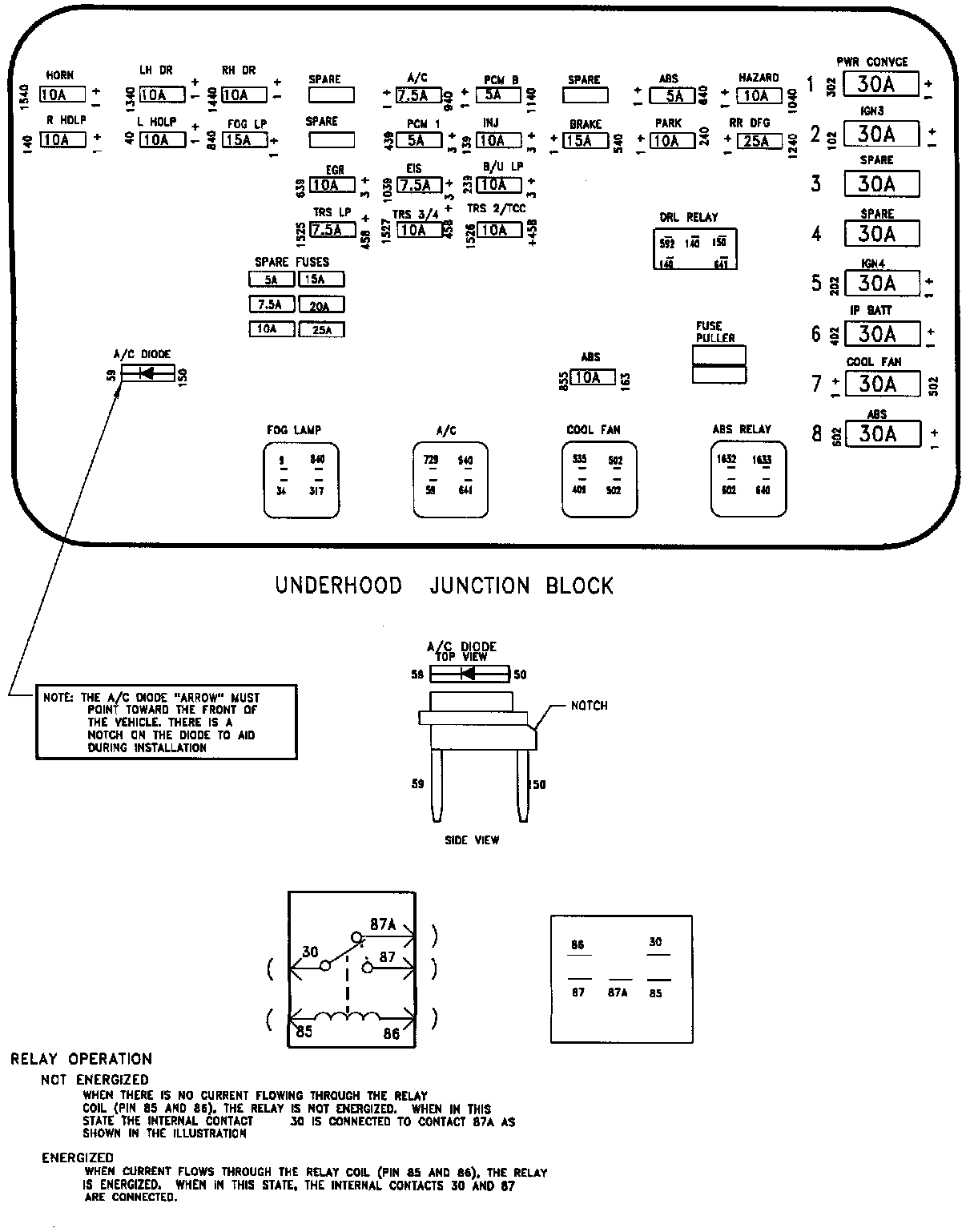

Underhood Junction Block (UHJB):

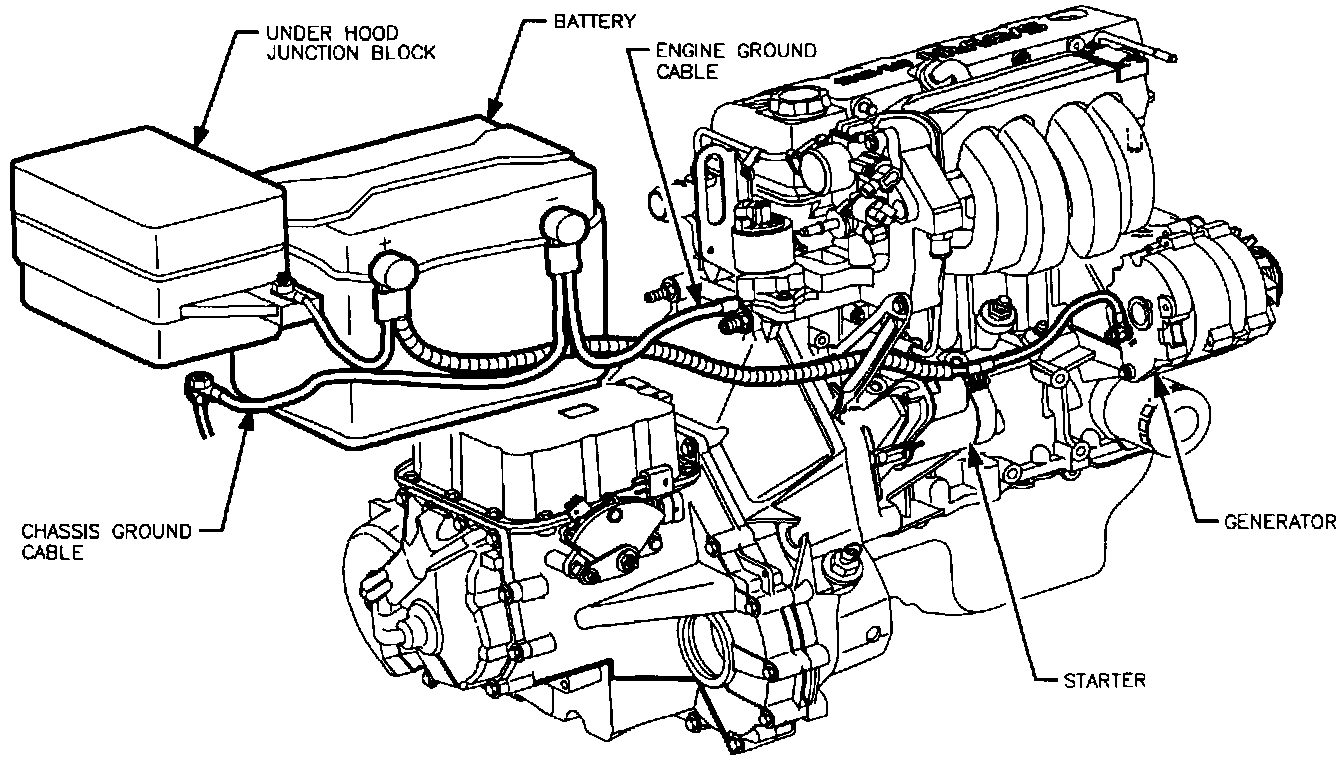

Battery System Component Location:




Ignition System Component Location:
