Fuel Injector Replacement

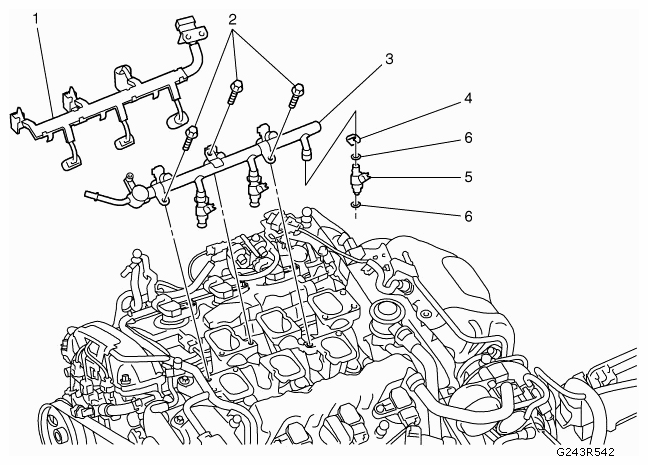

Fig 1: Identifying Fuel Injection Fuel Rail Assembly
G09407899Courtesy of SAAB-SCANIA OF AMERICA, INC.
Callout Component Name
Preliminary Procedure
  1. Relieve the fuel system pressure. Refer to FUEL PRESSURE RELIEF .
  2. Remove the upper intake manifold. Refer to UPPER INTAKE MANIFOLD REPLACEMENT .
  3. Disconnect the fuel feed pipe quick connect fitting. Refer to FUEL FEED PIPE REPLACEMENT .
1 Fuel Injection Fuel Rail Wiring Harness
2 Fuel Injection Fuel Rail Fastener (Qty: 3)
Refer to FASTENER CAUTION .
Tighten
10 Nm (89 lb in)
3 Fuel Injection Fuel Rail
4 Fuel Injector Retainer
5 Fuel Injector
6 Fuel Injector O-Ring (Qty: 2)
