Installation Procedure

  1. Install the fuel rail with the fuel injectors into the cylinder head evenly.

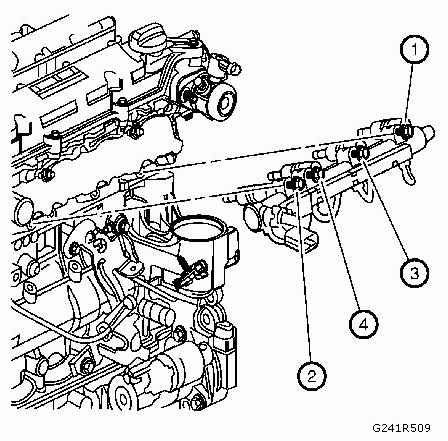

    Fig 1: Installing Fuel Rail And Fuel Injectors Into Cylinder Head
    G09407649Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Hand tighten the 2 outer fuel rail fasteners to seat the fuel injectors into the fuel injector bores.
  3. Refer to FASTENER CAUTION .

    Start and hand tighten the remaining fuel rail fasteners.

  4. Tighten the fuel rail fasteners in sequence to 22 Nm (16 lb ft).
  5. Tighten the fuel rail fasteners in sequence a second time to 22 Nm (16 lb ft).
  6. Install the fuel injector noise insulator (1).

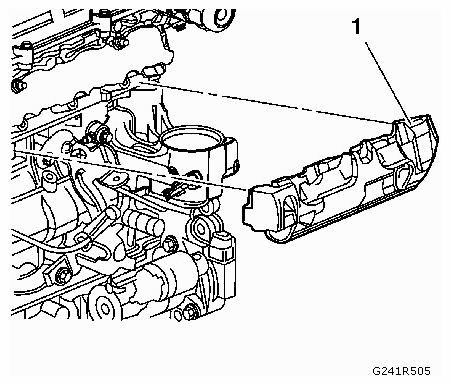

    Fig 2: Installing Fuel Injector Noise Insulator
    G09407650Courtesy of SAAB-SCANIA OF AMERICA, INC.
  7. Connect the electrical harness to the fuel rail harness connection.
  8. Install and hand-tighten both ends of the NEW high pressure fuel line (1).

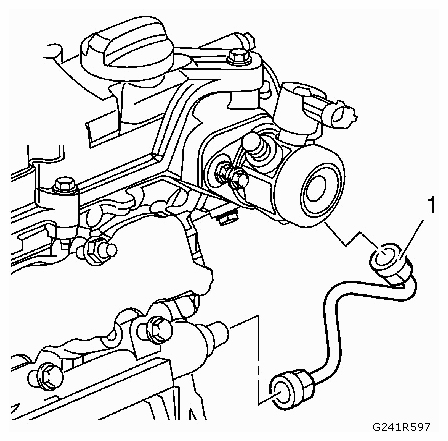

    Fig 3: Installing High Pressure Fuel Line
    G09407651Courtesy of SAAB-SCANIA OF AMERICA, INC.
  9. Tighten the high pressure fuel line fitting nuts to 30 Nm (22 lb ft).
  10. Install the intake manifold. Refer to INTAKE MANIFOLD REPLACEMENT .
  11. Install engine appearance cover replacement. Refer to ENGINE SIGHT SHIELD REPLACEMENT .
