Secondary Timing Chain Guide Installation - Left Side

Secondary Timing Chain Guide Installation - Left Side

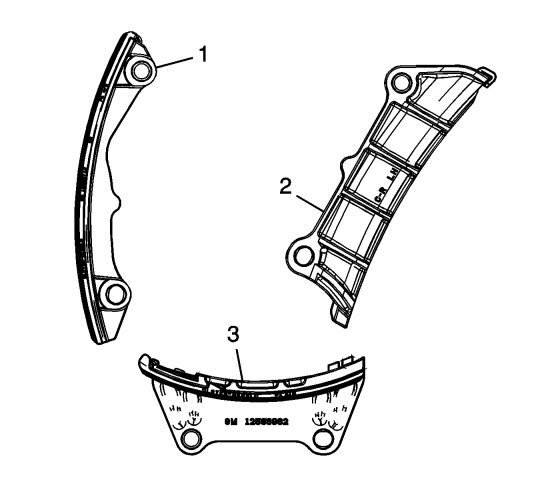

1. Ensure that the left secondary camshaft drive chain guide (2) is being installed.

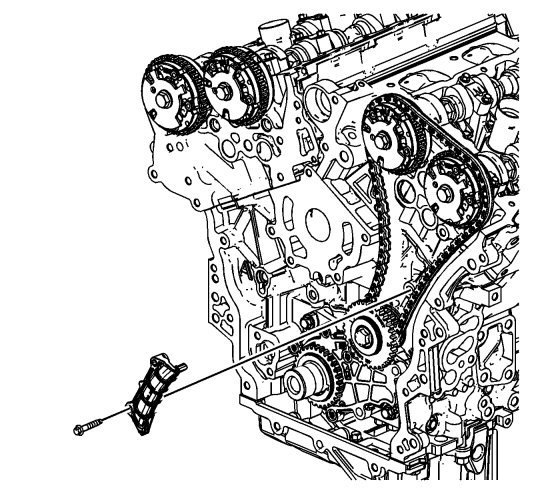

2. Position the left secondary camshaft drive chain guide.





3. Refer to Fastener Caution.

Install the secondary camshaft drive chain guide bolts and tighten to 25 Nm (18 lb ft).
