To remove

  1. Remove the upper engine cover.

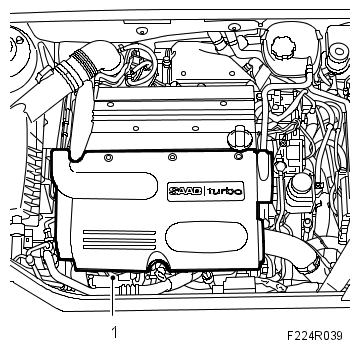

    Fig 1: Identifying Upper Engine Cover
    G06230285Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Carefully press down the catch with a screwdriver and unplug the connector.

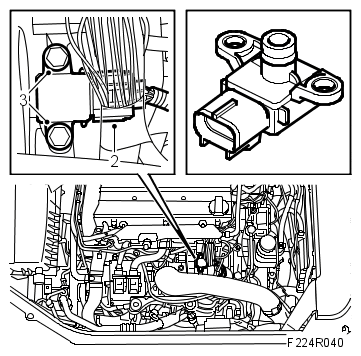

    Fig 2: Illustration For Steps 2-3
    G06230286Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Remove the sensor.
