Lumbar support: Fitting

  1. Hook the lumbar support to its mountings.

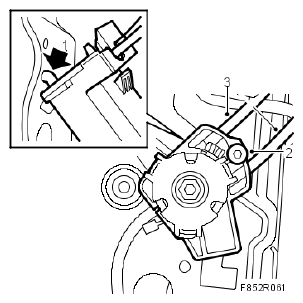

    Fig 1: Illustration For Step 1-3
    G05066158Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Hook the spring mat to its attachment points.
  3. Attach the wires to their mountings. Make sure the wires are correctly seated in their guides.
  4. Fit the backrest upholstery .
  5. Fit the front seat .
