Connector H33-4

Location:  under the right A-pillar

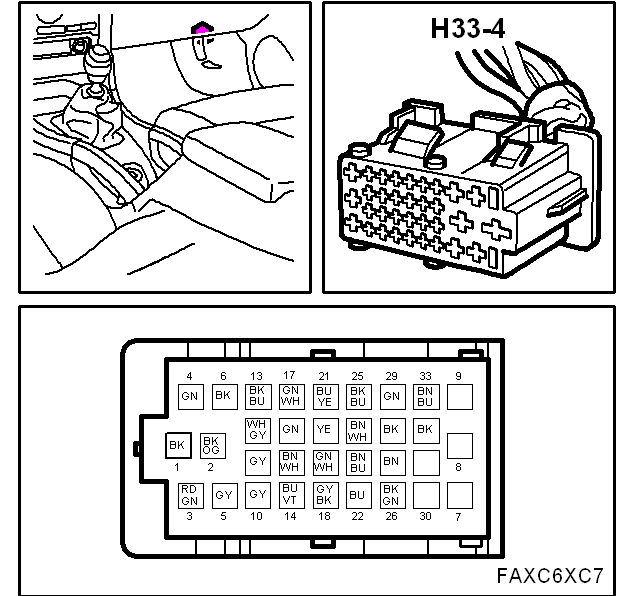

Fig 1: Identifying Connector H33-4
G00491374Courtesy of SAAB-SCANIA OF AMERICA, INC.
