Control module, TCM (502)

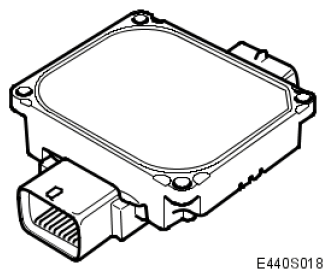

Fig 1: Identifying Control Module, TCM
G05040487Courtesy of SAAB-SCANIA OF AMERICA, INC.
TCM TYPE REFERENCE CHART

Type
Microprocessor controlled IO device, working memory and one programmable EEPROM read memory.
