To fit

  1. Fit the three position sensor nuts.

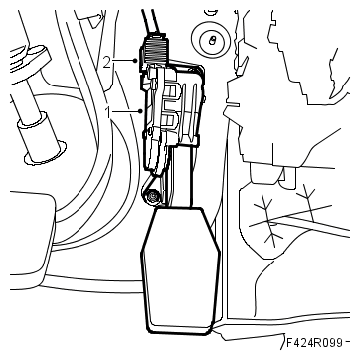

    Fig 1: Illustration For Steps 1-2
    G06230294Courtesy of SAAB-SCANIA OF AMERICA, INC.

    Tightening torque 8 Nm (6 lbf ft).

  2. Plug in the connector to the position sensor.
  3. Fit the 2 sound insulating baffle screws to the climate housing and instrument panel.

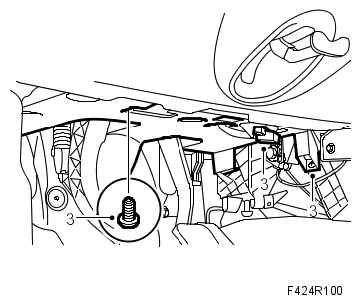

    Fig 2: Identifying 2 Sound Insulating Baffle Screws
    G06230295Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Fit the center console front side piece.

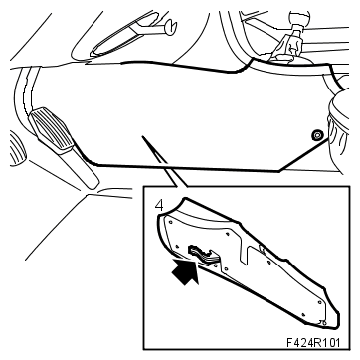

    Fig 3: Identifying Centre Console Front Side Piece
    G06230296Courtesy of SAAB-SCANIA OF AMERICA, INC.
  5. Adjust the seat position.
