Lower Crankcase - Back View
WARNING: This page is about a different car, the 2011 Saab 9-5. However, it is still accessible from the selected car via links, so may be relevant.

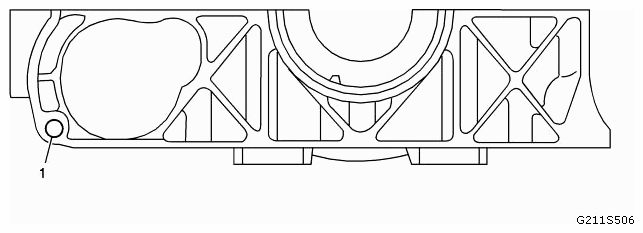

Courtesy of SAAB-SCANIA OF AMERICA, INC. LOWER CRANKCASE SPECIFICATIONS (BACK VIEW)
| Service Call Out |
Thread Size |
Insert |
Drill |
Counterbore Tool |
Tap |
Driver |
Drill Depth Maximum |
Tap Depth Maximum |
| J 42385-850 |
MM |
IN |
MM |
IN |
| 1 |
M10 x 1.5 |
215 |
211 |
212 |
213 |
214 |
29.5 |
1.161 |
THRU |
