Battery Negative Cable Replacement (Gasoline)

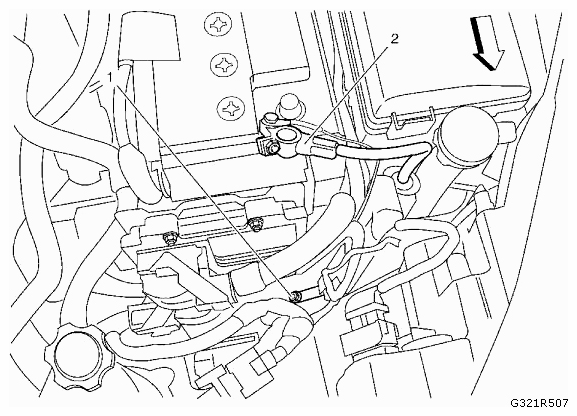

| Callout | Component Name |
|---|---|
| Preliminary Procedure Disconnect the battery negative cable. Refer to BATTERY NEGATIVE CABLE DISCONNECTION AND CONNECTION . |
|
| 1 | Battery Negative Cable Fastener Refer to FASTENER CAUTION . Tighten 20 Nm (15 lb ft) |
| 2 | Battery Negative Cable Procedure Transfer any parts as needed.
NOTE:
Refer to CONTROL MODULE REFERENCES
for programming and set up information.
|
