Grounding point G29

WARNING: This page is about a different car, the 2009 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

Location

4D: In luggage compartment below the right light cluster.

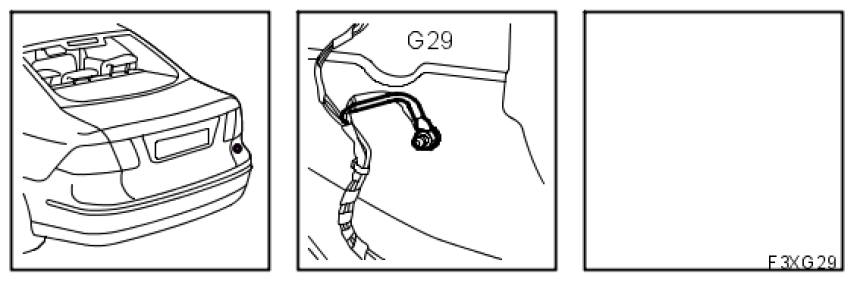

Fig 1: Identifying Grounding Point G29 - 4D

Courtesy of SAAB-SCANIA OF AMERICA, INC.

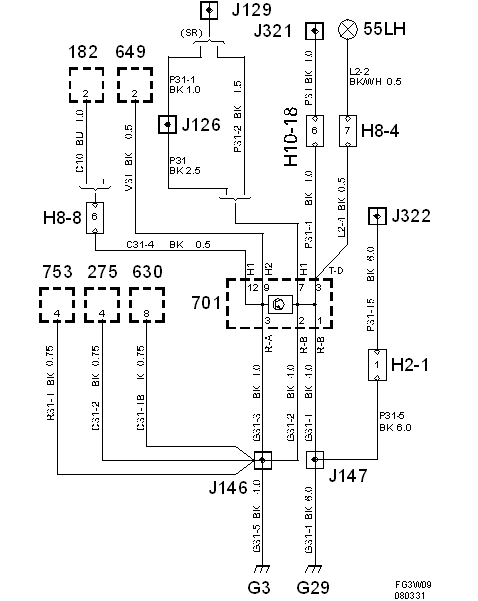

Fig 2: Grounding Point G29 - Wiring Diagram

Courtesy of SAAB-SCANIA OF AMERICA, INC.

5D: On right-hand rear luggage compartment floor support.

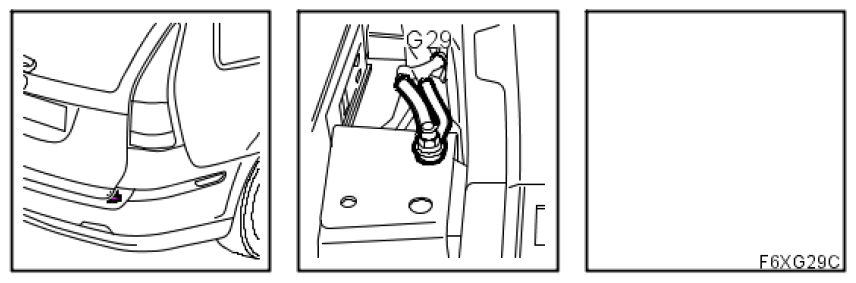

Fig 3: Identifying Grounding Point G29 - 5D

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Connected components 5D

GROUNDING POINT G29 REFERENCE

	Via Crimp J147, main wiring harness 5D
701	Electrical distribution unit, boot
	Via Crimp J322, boot lid 5D , which in turn is connected with crimp J147
62R	Rear window wiper motor
115	Heating element, rear window

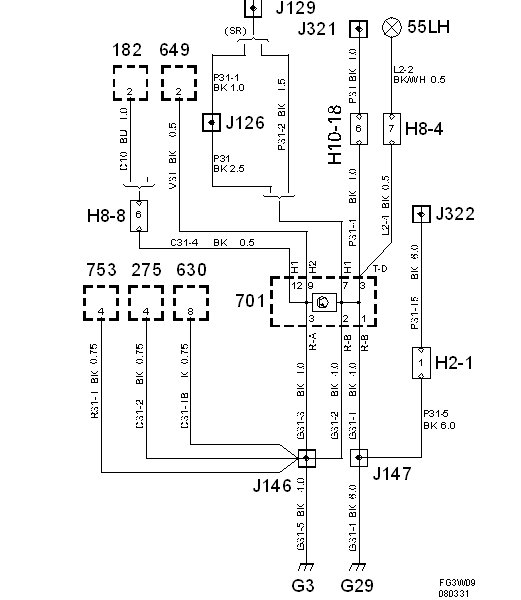

Fig 4: Grounding Point G29 - Wiring Diagram

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Via the luggage compartment electrical centre 701, the grounding point is connected to:

GROUNDING POINT G3, 4D

GROUNDING POINT G3, 5D

See these grounding points for other connected components.
