Ignition Switch Module, ISM (20)
>>
Output +15
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Output +15

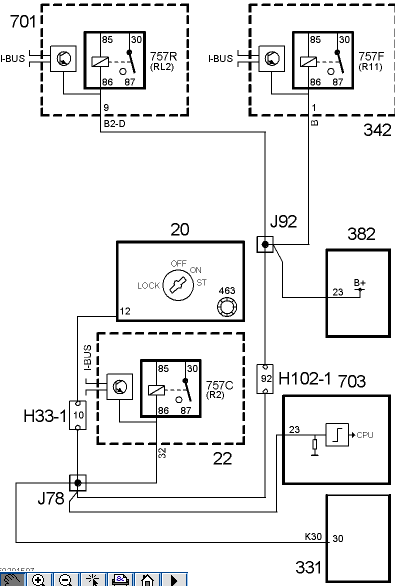

Fig 1: Ignition Switch Module Circuit Diagram - Output +15
Courtesy of SAAB-SCANIA OF AMERICA, INC.
